Muratec MFX-3595 - Prt Motor

5-50
PRT MOTOR

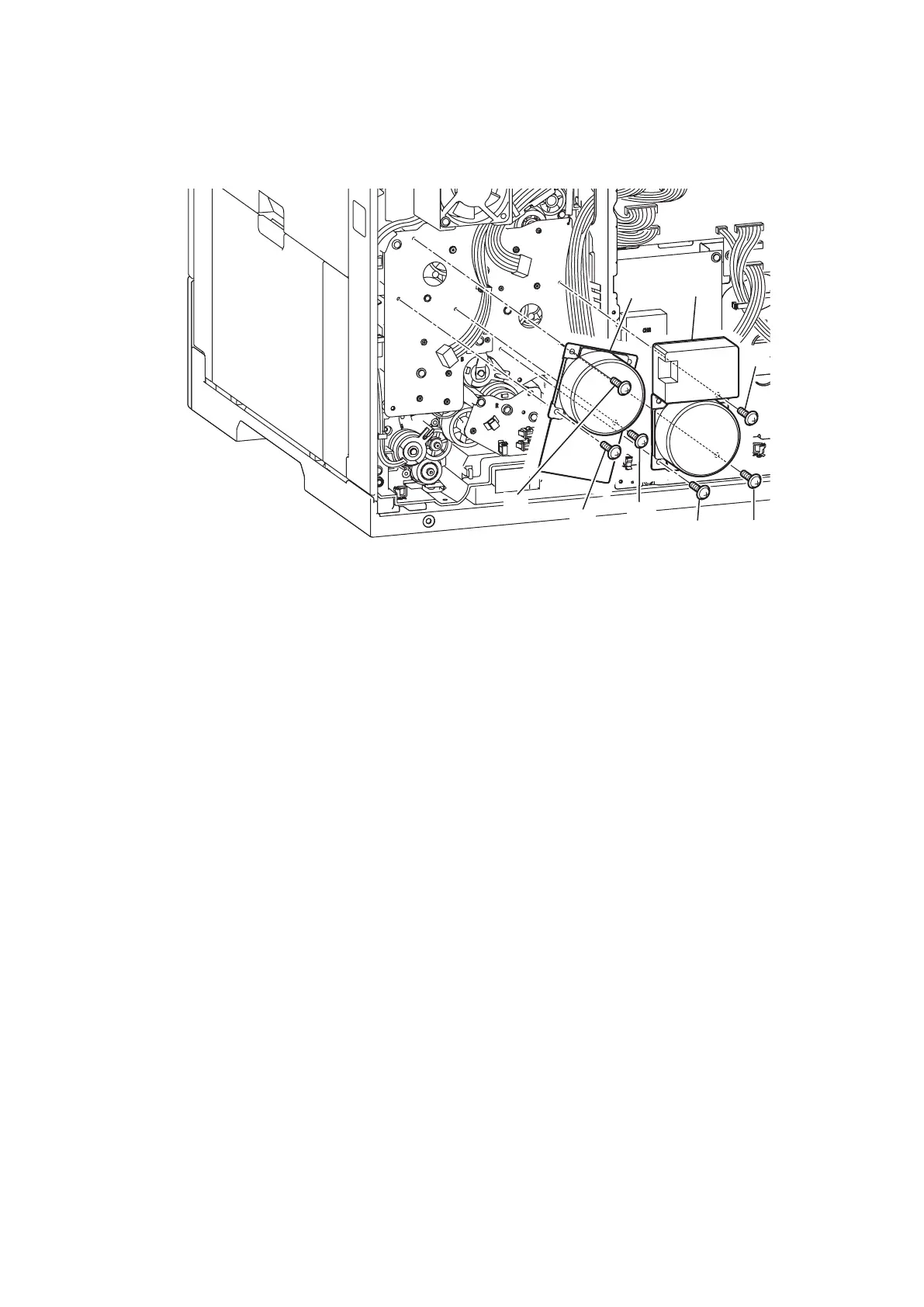

1. Remove the Cover back. (See “PCB MAIN” on page 5-36.)
2. Disconnect the connector for the PRT MOTOR [1].
3. Remove each of three screws [2].
4. Remove the PRT MOTOR [1].
>

@>

@
>

@
>

@
>

@
>

@
>

@
>

@
