SOLENOID ROLLER

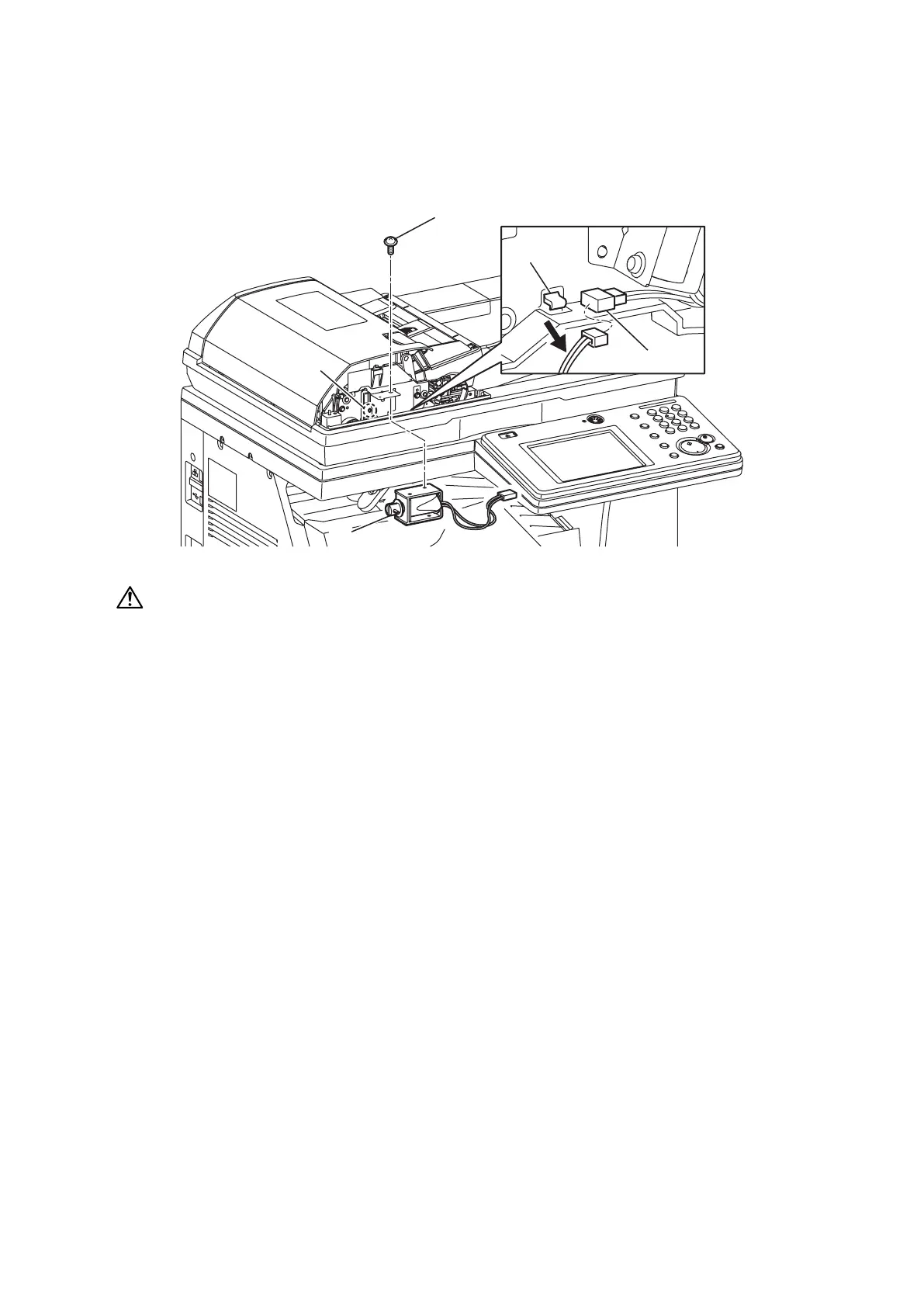

1. Remove the Cover TX side F. (See “COVER TX SIDE F” on page 5-8.)
2. Remove the harness from the hook [1].
3. Disconnect the junction connector [2].
4. Remove one screw [3].
5. Remove the SOLENOID ROLLER [4].
[
1
]
[
2
]
[
3
]
[
4
]
[
5
]
CAUTION
When assembling, pass the Pin PK 3×16 of Solenoid roller through the Bracket gear reverse hole [5].
