COVER TX

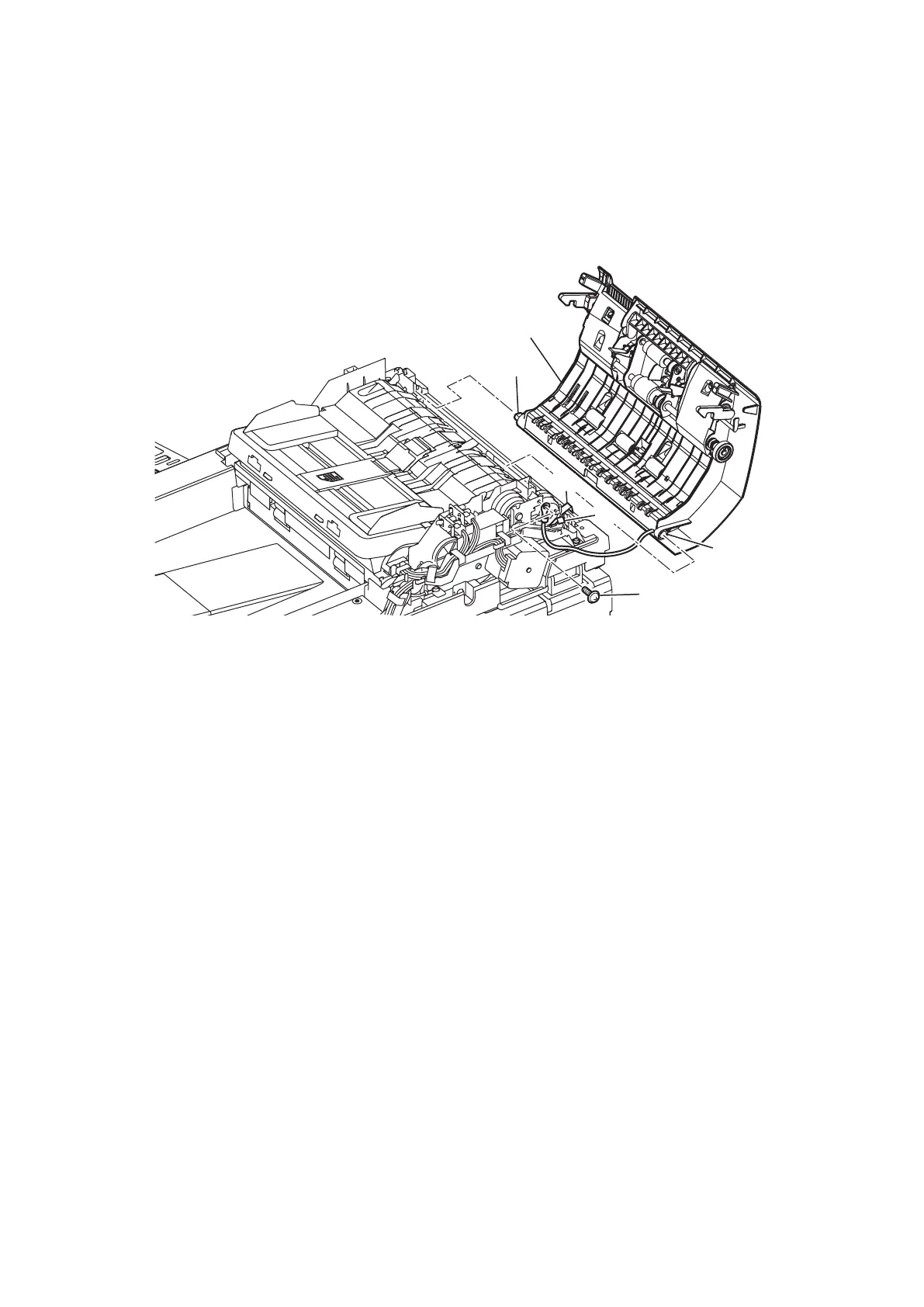

1. Remove the Cover Tx side B. (See “COVER TX SIDE B” on page 5-5.)
2. Remove the Cover Tx side F. (See “COVER TX SIDE F” on page 5-8.)
3. Remove one screw [1] on the back side.
* The screw is jointed with the ground wire.
4. Remove two harness locks [2].
5. Remove two shafts [3], then remove the COVER TX [4].
* When removing, raise the Cover Tx slightly and remove it from the shaft on the front side.
* Remove the ground wire through the Guide inner hole.
>

@
>

@
>

@
>

@
>

@
>

@
