2.2 Recording section

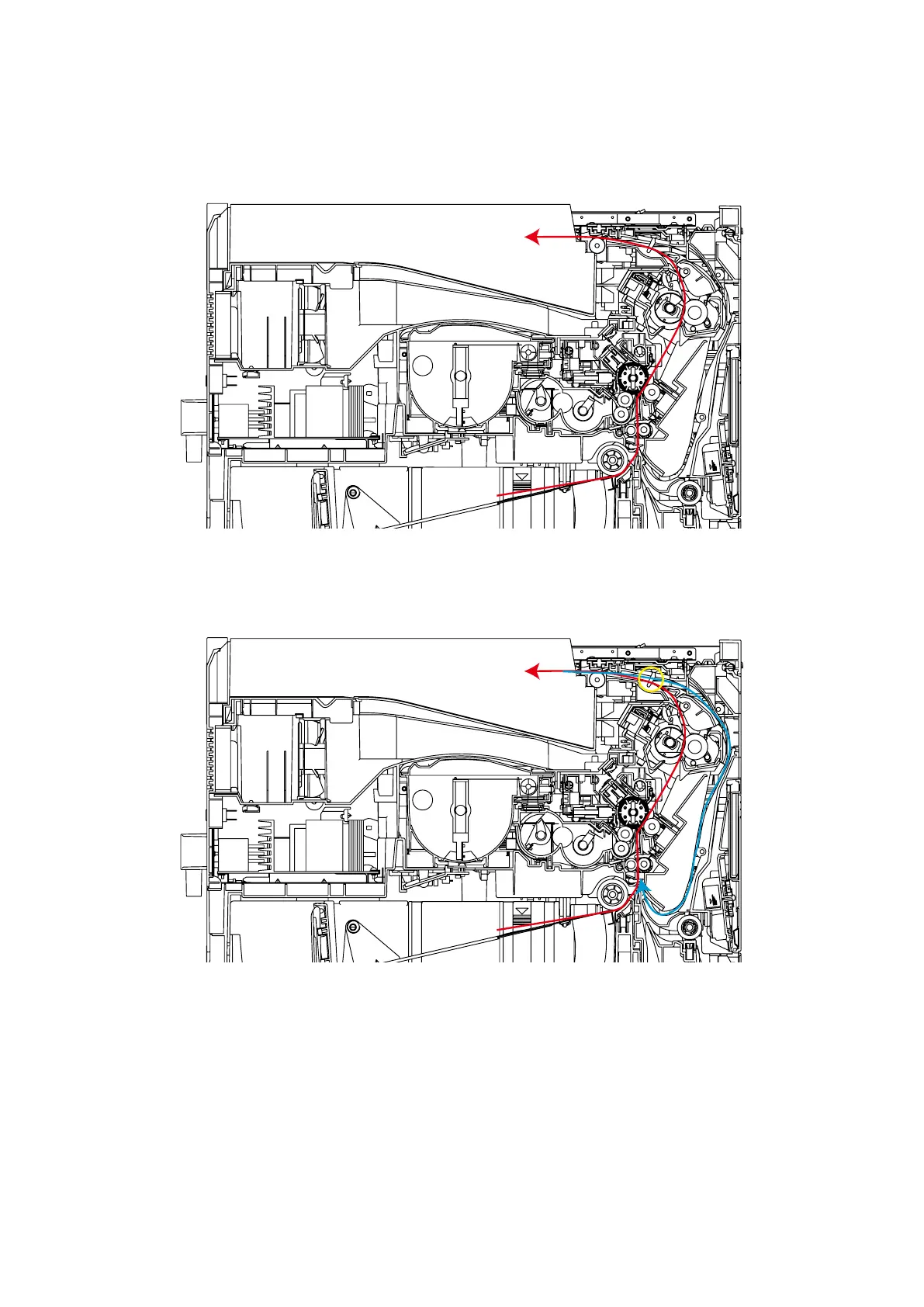

Recording paper feed path
The recording paper is separated from the remaining paper by friction of the pickup roller. The paper is trans-
ferred along the paper guide until it reaches the register roller. Then it is transferred to the exit tray by the
register roller.
At duplex printing, the paper is transferred to the exit tray when the first side of paper is printed. A few steps
after the switch back sensor (SWBS) has detected the paper trailing edge, the exit roller rolls in reverse and
the paper is transferred to the image processing area by the duplex roller.
The paper reaches to the image transfer area inside out, and the back side of the paper is printed.
