5-14
SENSOR DEXIT

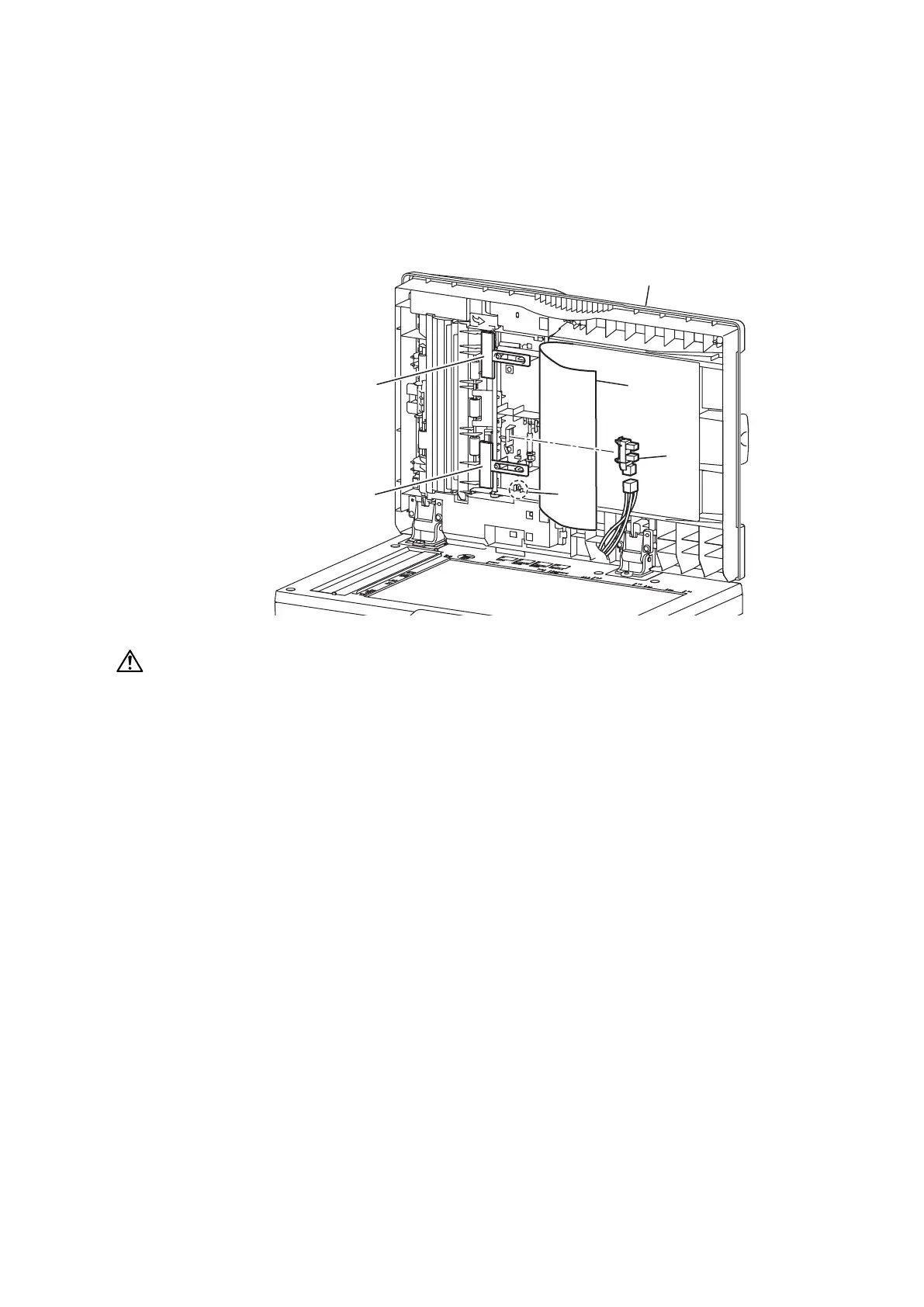

1. Open the Cover platen [1].
2. Peel off the Sheet document press [2].
* Sheet document press is secured with the Velcro tape.
3. Remove the harness from the hook [3].
4. Disconnect the connector of the SENSOR DEXIT [4].
5. Remove the SENSOR DEXIT [4].
* There are hooks on the short side (1 place) and the long side (2 places) on the sensor.
After releasing the hook on the short side, slide the sensor to the short side and remove it.
>

@
>

@
>

@
>

@
>

@
>

@
CAUTION
When securing the Sheet document press, slide two Brackets press sheet [5] to the right side.
To Next Page
