5-36
5.2.4 PCB section
PCB MAIN

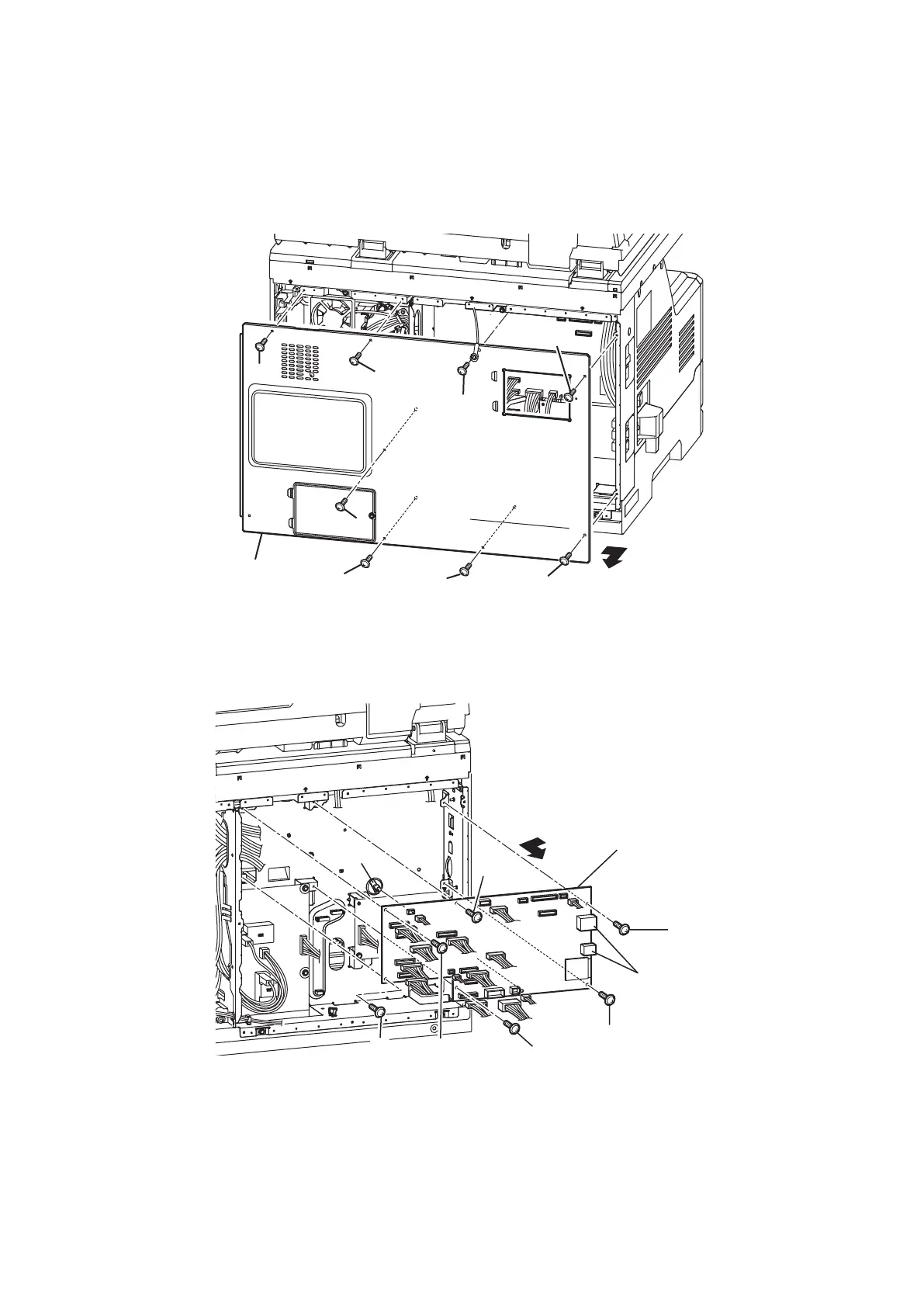

1. Remove the Plate printer B. (See “PLATE PRINTER B” on page 5-22.)
2. Remove eight screws [1].
3. Remove the Cover back [2].
* Remove the insertion on the left side.
>
@
>
@
>
@
>
@
>
@
>
@
>
@
>
@
>
@
4. Disconnect all the PCB MAIN [3] connectors.
5. Remove six screws [4].
6. Remove the spacer [5].
7. Remove the PCB MAIN [3] while disconnecting two connectors [6] on the right side from the frame.
>
@>
@
>
@
>
@
>
@
>
@
>
@
>
@
>
@
