Muratec MFX-3595 User Manual

5-28
FBS MOTOR

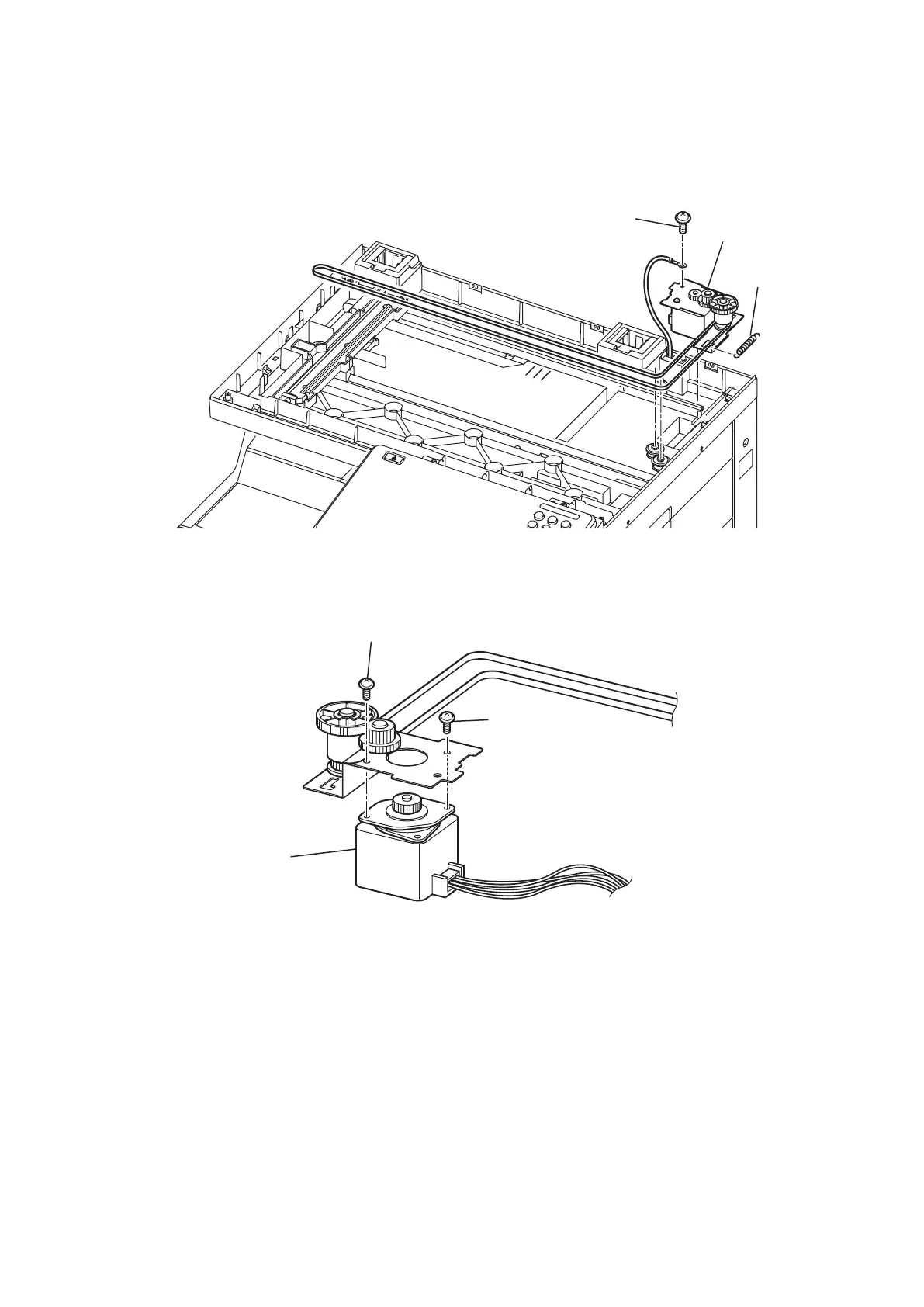

1. Remove the Cover platen. (See “COVER PLATEN” on page 5-23.)
2. Remove the Cover top FBS. (See “CIS” on page 5-27.)
3. Remove the Spring C tension [1].
4. Remove one screw [2].
5. Move the Bracket motor [3] towards the center, then lift up and remove it.
>

@
>

@
>

@
6. Remove two screws [4] and remove the FBS MOTOR [5].
>

@
>

@
>

@
