SENSOR DRS

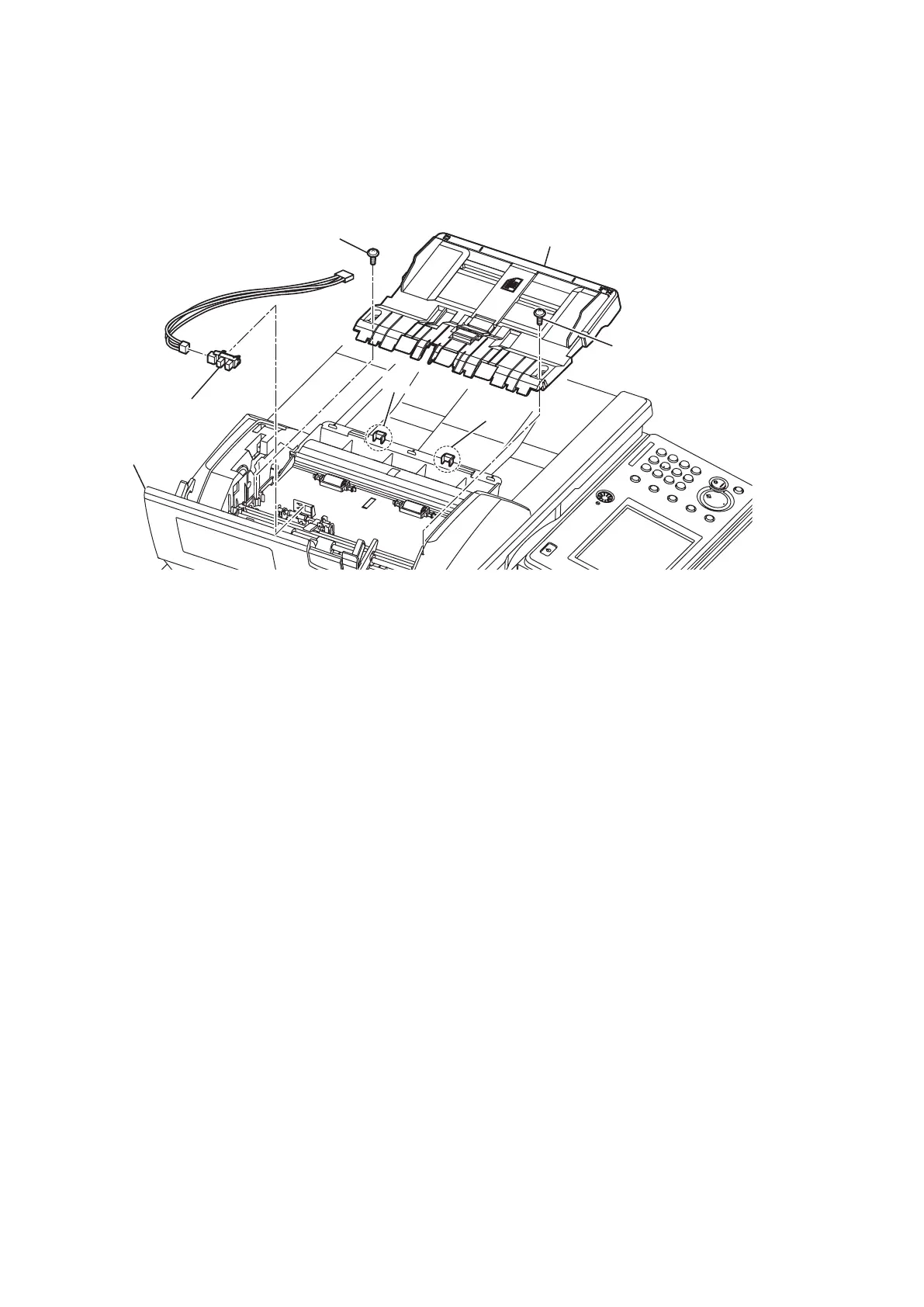

1. Open the Cover Tx [1].
2. Remove two screws [2].
3. Remove the Guide outer B up [4] while releasing two hooks [3].
4. Disconnect the connector and remove the SENSOR DRS [5].
* There are hooks on the short side (1 place) and the long side (2 places) on the sensor.
After releasing the hook on the short side, slide the sensor to the short side and remove it.
[
