5-18

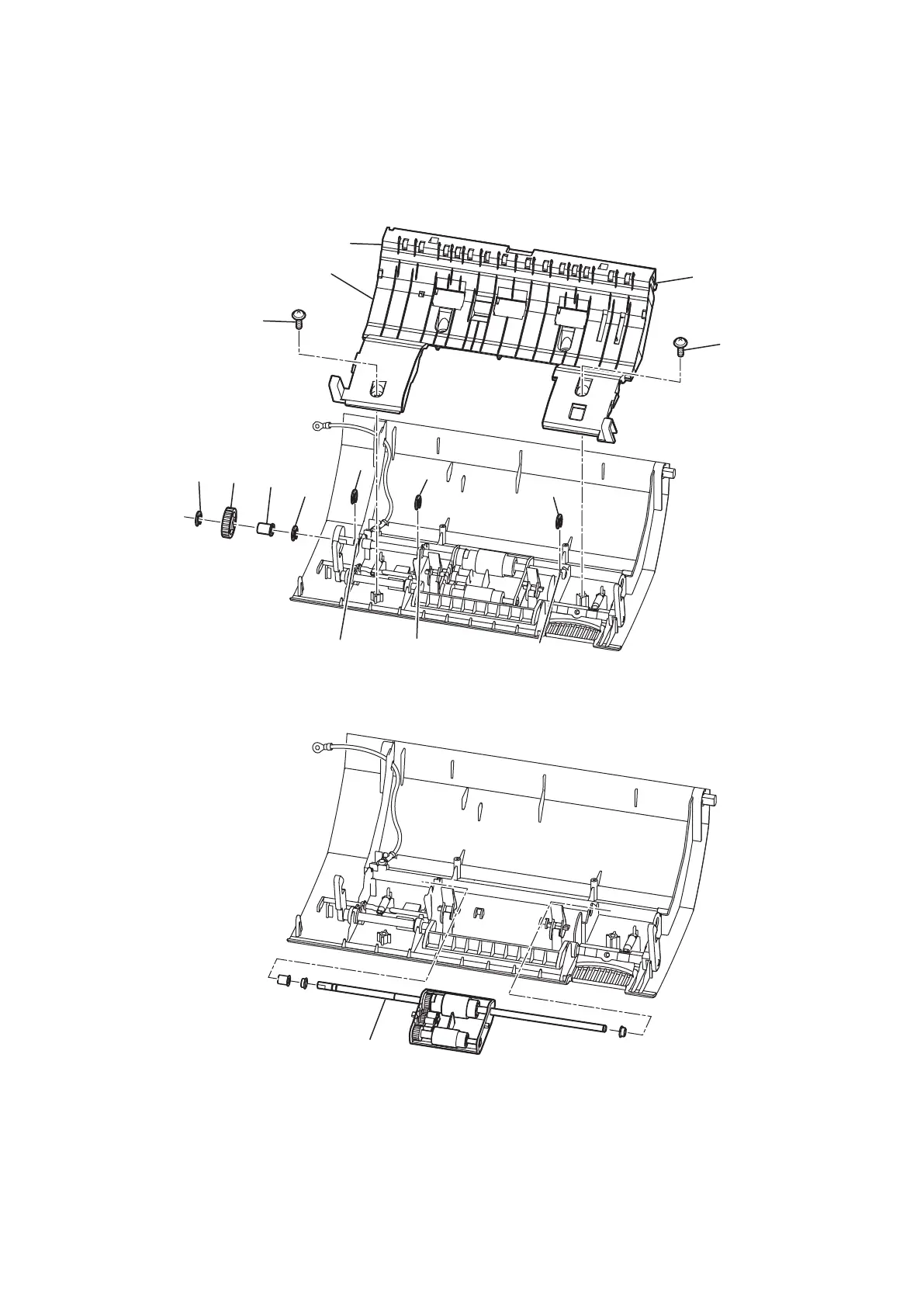

ASSY ROLLER SEPARATOR
1. Remove the Cover Tx. (See “COVER TX” on page 5-17.)
2. Remove two screws [1].
3. Release two hooks [2] using a tool such as a driver, and remove the Guide outer A [3].
4. Remove one E-ring [4], then slide the Bearing D6 8 [5] and the Gear 26 [6] to the inner part.
5. Remove one E-ring [7], then remove the Bearing D6 8 [5] and the Gear 26 [6].
6. Remove three E-rings [8] and slide two Bearings D6 [9] and one Bearing D6 8 [10] toward the center.
>
@
>
@
>
@
>
@
>
@
>
@
>
@
>
@
>
@
>
@
>
@
>
@
>
@
>
@
>
@
7. Remove the ASSY ROLLER SEPARATOR [11].
>
@
