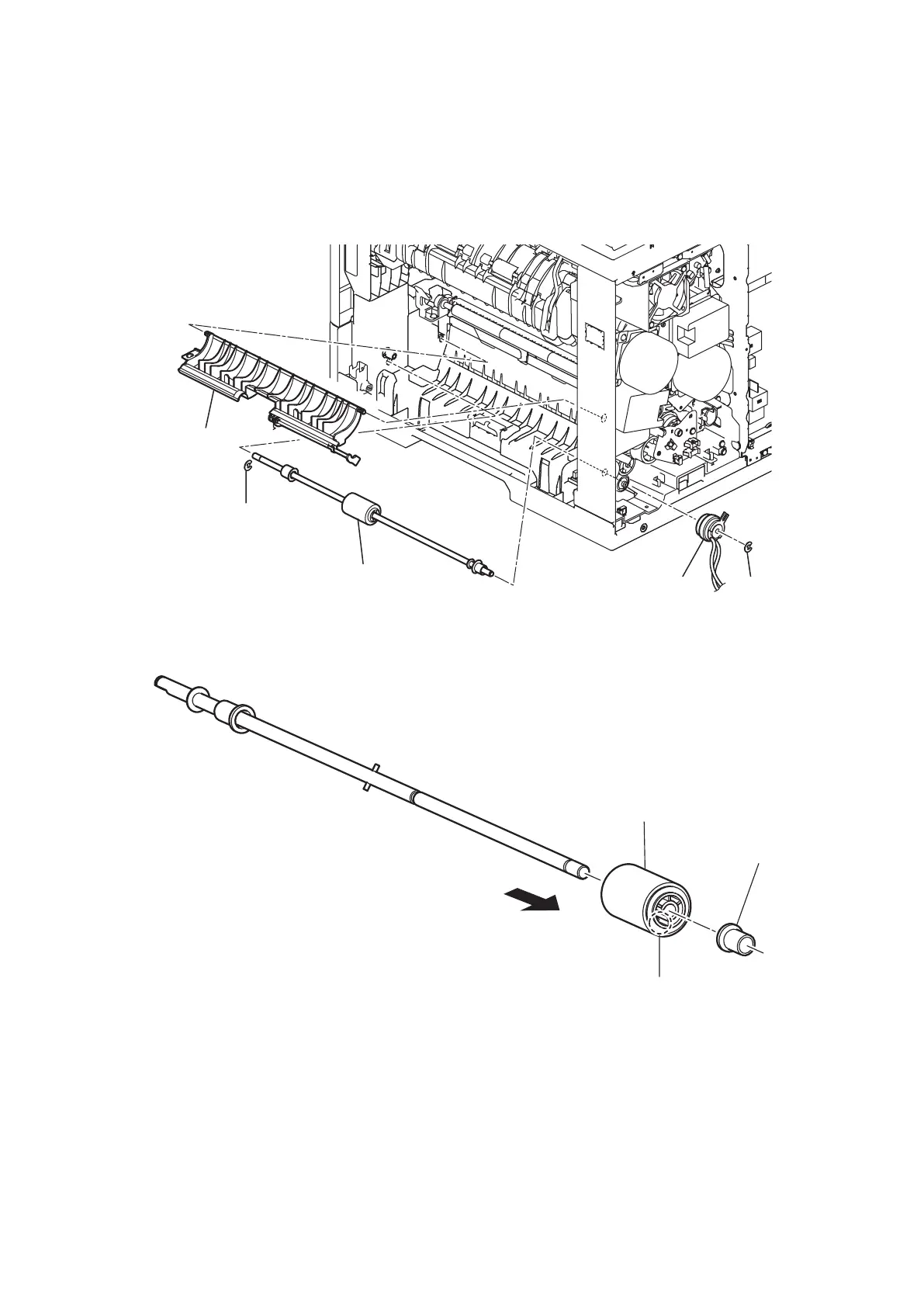

ROLLER PICKUP MP
1. Remove the Cover back. (See “PCB MAIN” on page 5-36.)
2. Open the Cover jam access.
3. Pull out the cassette a little.
4. Remove the Guide DUP MP [1] by bending the shaft.
5. Remove SR5 [2] and SR4[3].
6. Remove the Clutch [4].
7. Slide the Shaft pickup MP [5] towards the front and remove it.
[
5
]
[
1
]
[
2
]
[
3
]
[
4
]
8. Remove the Bearing D6 8 [6] on the front side.
9. Slide the ROLLER PICKUP MP [7] by pressing the hook [8] and remove it.
>

@
>

@
>

@
