SENSOR PES OP

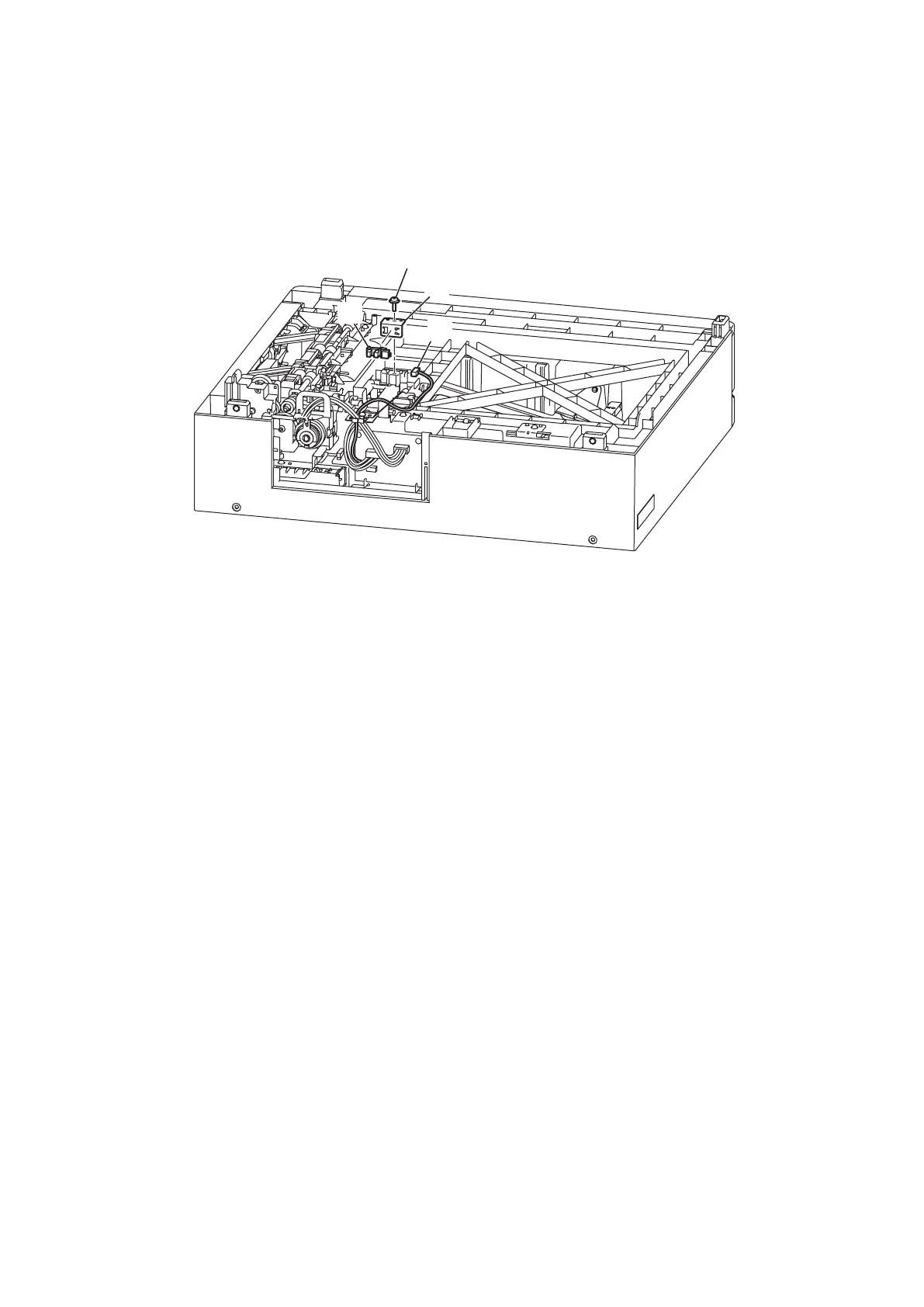

1. Remove the OP Cassette. (See “OP CASSETTE” on page 5-91.)
2. Remove one screw [1] then remove the Bracket sensor [2].
3. Disconnect the connector [3].
4. Remove the SENSOR PES [4].
* There are hooks on the short side (1 place) and the long side (2 places) on the sensor.
After releasing the hook on the short side, slide the sensor to the short side and remove it.
[
