Muratec MFX-3595 - Sensor Ds2

5-12
SENSOR DS2

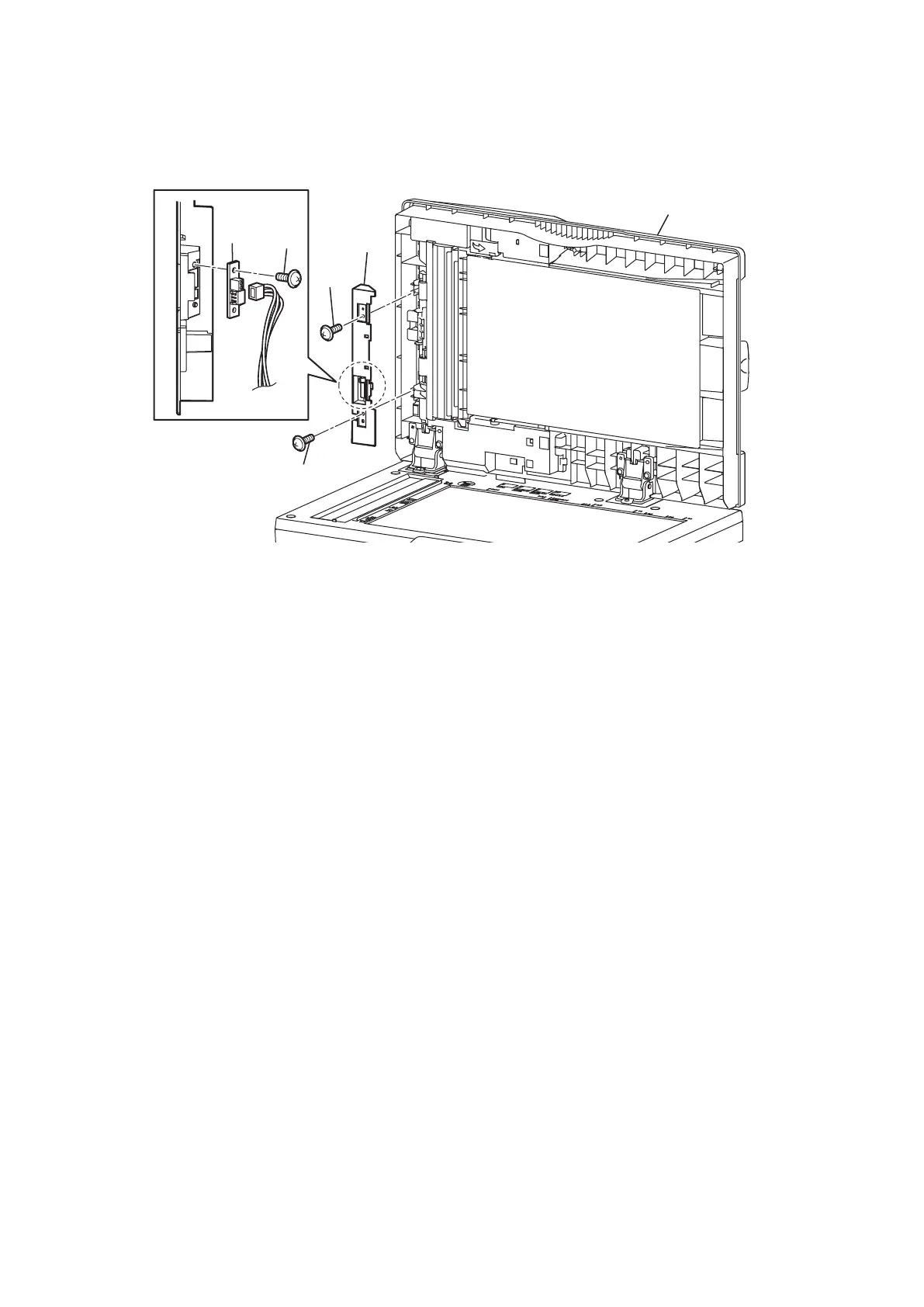

1. Open the Cover platen [1].
2. Remove two screws [2] then remove the Stay platen [3].
3. Disconnect the connector of the SENSOR DS2 [4] then remove the harness from the hook.
4. Remove one screw [5], then remove the SENSOR DS2 [4].
>

@
>

@
>

@
>

@
>

@
>

@
