Muratec MFX-3595 User Manual

5-38
PCB HV

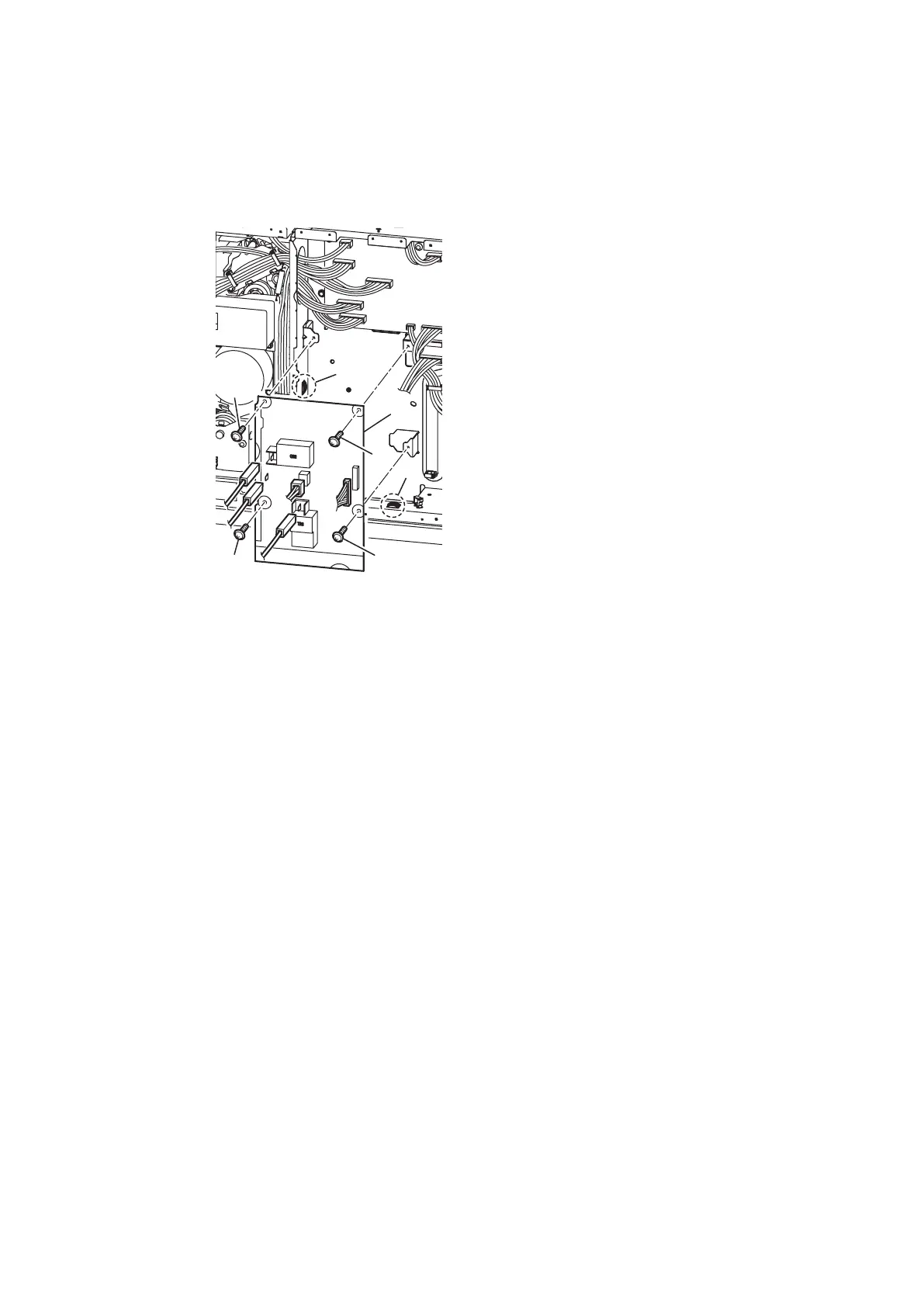

1. Remove the Plate printer B. (See “PLATE PRINTER B” on page 5-22.)
2. Remove the Cover back. (See “PCB MAIN” on page 5-36.)
3. Disconnect all the PCB HV [1] connectors.
4. Remove four screws [2].
5. Remove the PCB HV [1].
* There is a lug [3] on the left and the bottom which holds the PCB HV.
>

@
>

@
>

@
>

@
>

@
>

@
>

@
