SENSOR APS

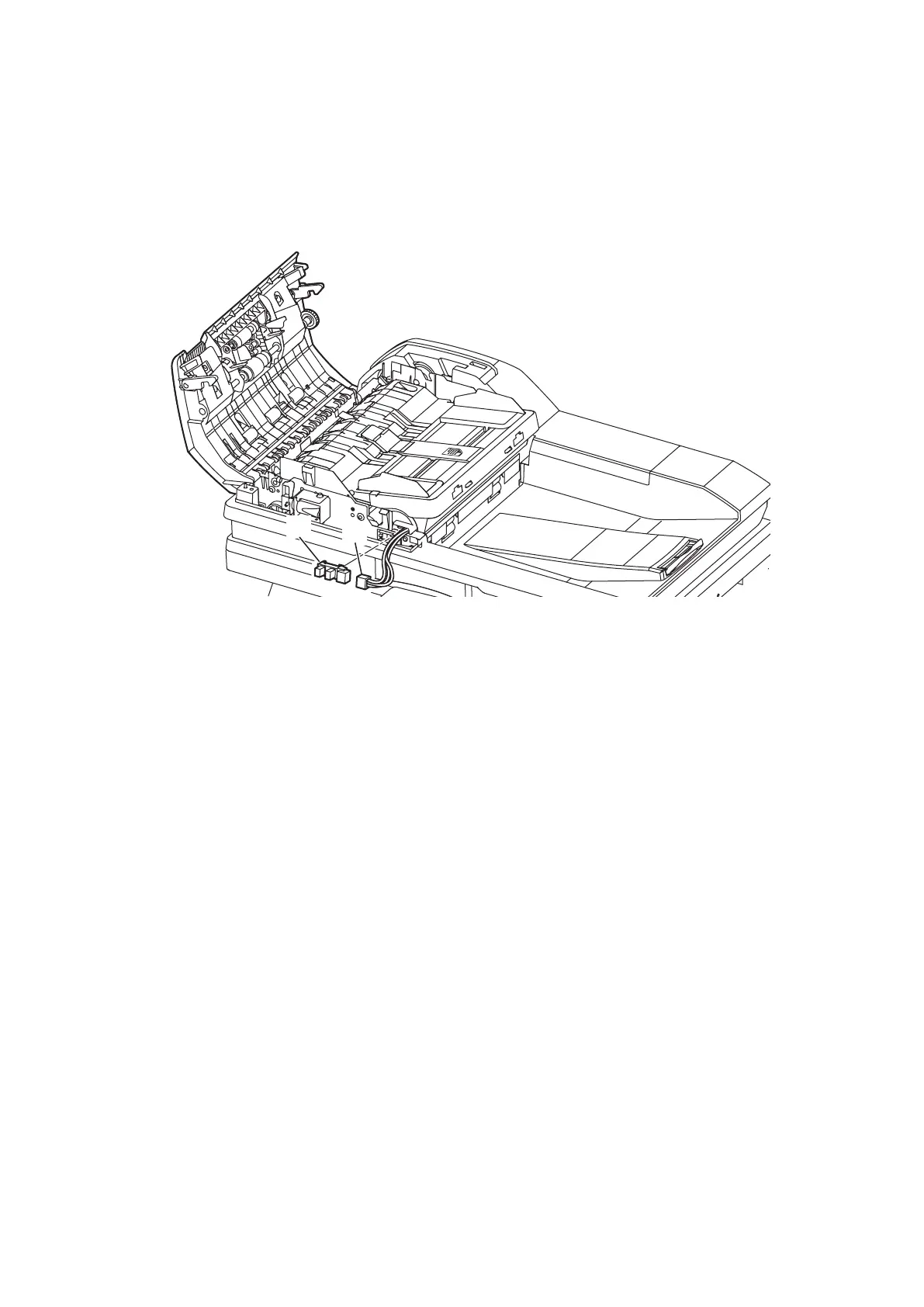

1. Remove the Cover Tx side F. (See “COVER TX SIDE F” on page 5-8.)
2. Remove the APS bracket. (See “GUIDE INNER” on page 5-24.)
3. Remove the Solenoid guide. (See “SOLENOID GUIDE” on page 5-11.)
4. Disconnect the connector [1].
5. Remove the SENSOR APS [2].
* There are hooks on the short side (1 place) and the long side (2 places) on the sensor.
After removing the hook on the short side, slide the sensor to the short side and remove it.
>

@
>

@
