Muratec MFX-3595 User Manual

5-89

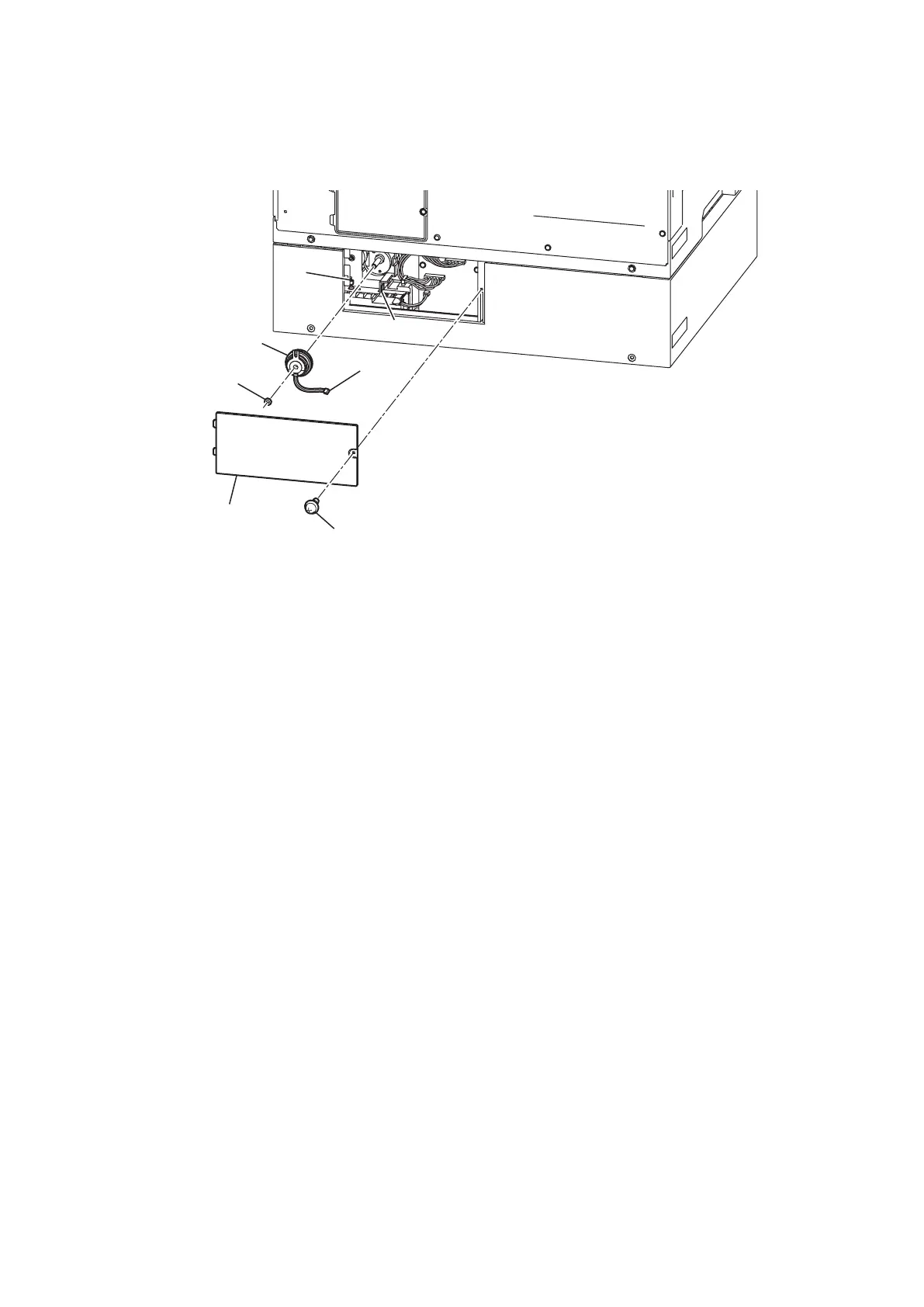

Replacement of CLUTCH CST
1. Remove one screw [1] then remove the Cover back OP [2].
2. Disconnect the junction connector [3].
3. Remove the SR4 [4], then remove the CLUTCH CST [5].
4. Reverse the procedure to assemble.
[
5
]
[
4
]
[
3
]
[
2
]
[
1
]
[
7
]
[
6
]
Important
When attaching the Clutch CST, pass through the harness hole [6] and hook it onto the hook [7].
