Muratec MFX-3595 User Manual

5-91
OP CASSETTE

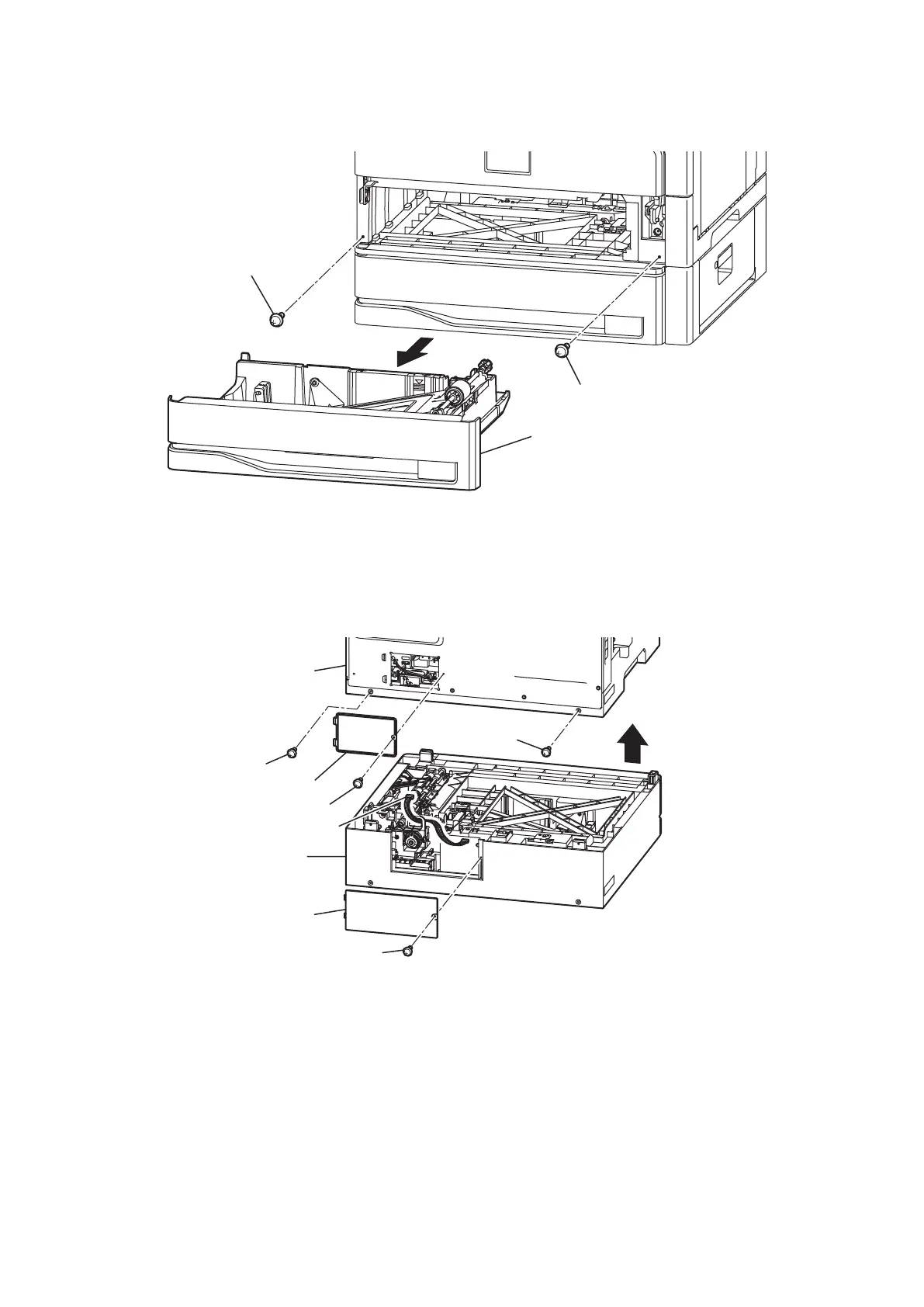

1. Remove the Cassette [1].
2. Remove two screws [2].
[
2
]
[
2
]
[
1
]
3. Remove two screws [3] on the back side.
4. Remove two screws [4], and remove the Cover back window [5] and the Cover back OP [6].
5. Disconnect one connector [7]. Move the harness towards the OP CASSETTE.
6. Lift up the body [8], and remove the OP CASSETTE [9].
[
4
]
[
6
]
[
9
]
[
4
]
[
5
]
[
3
]
[
8
]
[
3
]
[
7
]
