5-30
5.2.3 Panel section

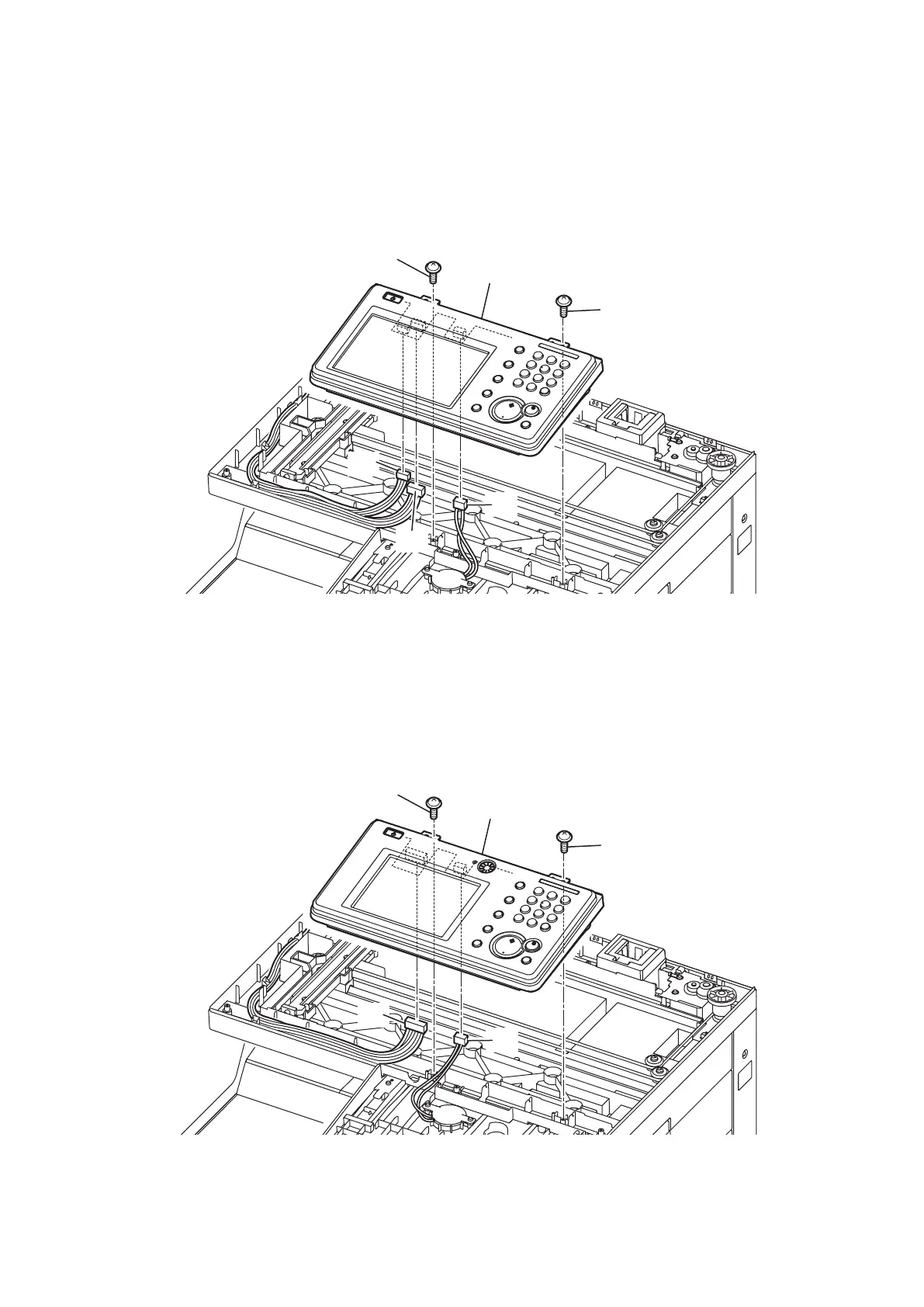

PCB PANEL ASSY (MFX-3595)
1. Remove the Cover platen. (See “COVER PLATEN” on page 5-23.)
2. Remove the Cover top FBS. (See “CIS” on page 5-27.)
3. Remove two screws [1].
4. Lift up the PCB PANEL ASSY [2].
5. Disconnect three connectors [3].
>

@
>

@
>

@
>

@
>

@
>

@
PCB PANEL ASSY (MFX-3535)
1. Remove the Cover platen. (See “COVER PLATEN” on page 5-23.)
2. Remove the Cover top FBS. (See “CIS” on page 5-27.)
3. Remove two screws [1].
4. Lift up the PCB PANEL ASSY [2].
5. Disconnect two connectors [3].
[
1
]
[
3
]
[
3
]
[
1
]
[
2
]
