2.3.3 Charging mechanism
The drum is charged evenly through a grid mesh by corona discharging of a multi-stylus electrode. The
stylus type charger concentrates discharging to the grid mesh side, which generates less ozone than wire-
electrical discharging. The generated ozone is removed by the ozone filter while emission.
3
4

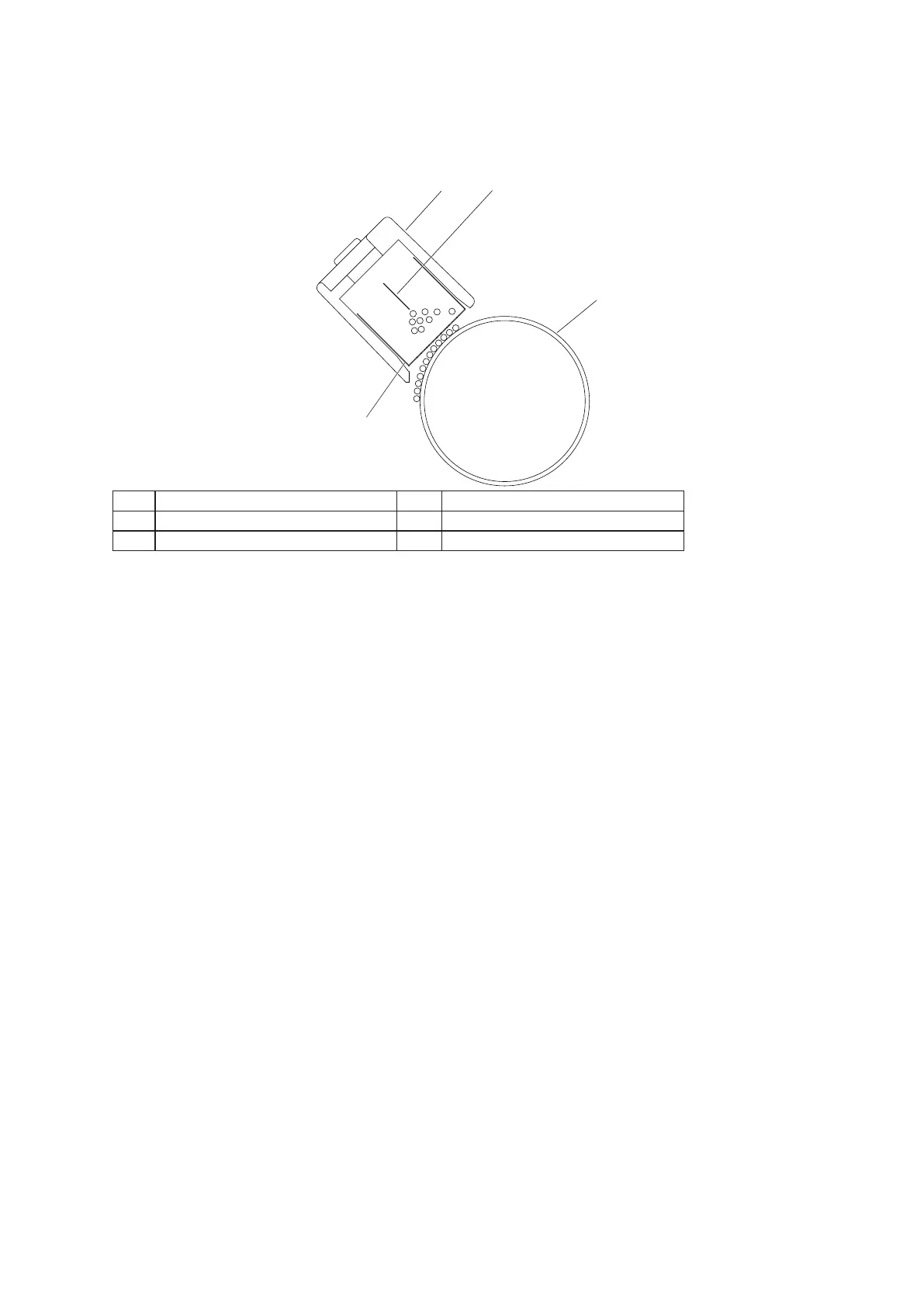

No. Part name No. Part name
1 Charger case 2 Multi-stylus electrode
3 OPC drum 4 Grid mesh
