Muratec MFX-3595 User Manual

5-84
MOTOR SHIFT (MFX-3595)
1. Remove the Cover back. (See “PCB MAIN” on page 5-36.)
2. Remove the Printer fuser. (See “PRINTER FUSER” on page 5-58.)
3. Remove the Cover tray. (See “TRAY DOCUMENT” on page 5-4.)

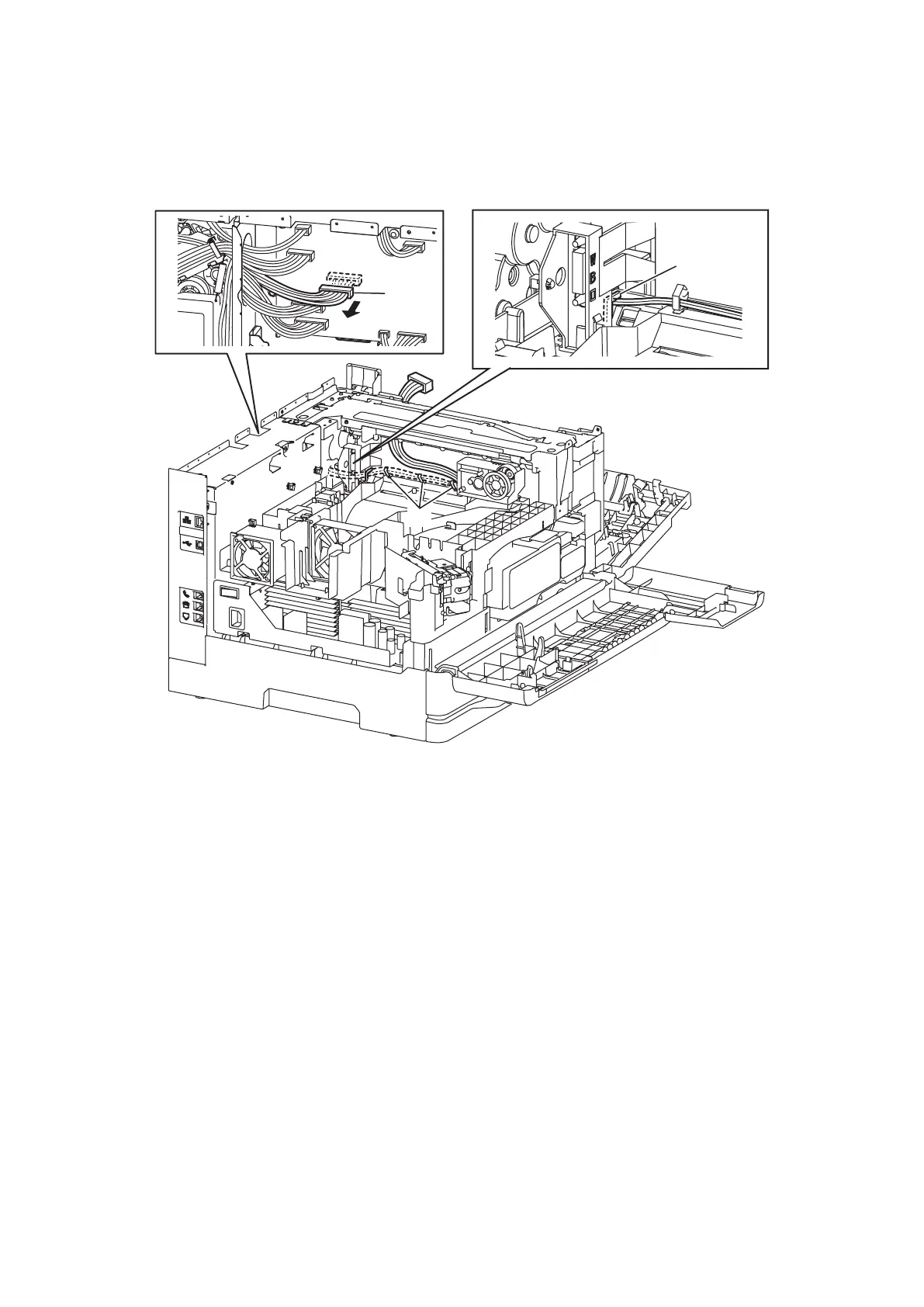

4. Open up three clamps [1].
5. Disconnect the connector [2] in the PCB main, pull out the harness and remove it from the hook [3].
[
2
]
[
3
]
[
1
]
