Muratec MFX-3595 User Manual

5-112
5.3.8 HINGE height adjustment

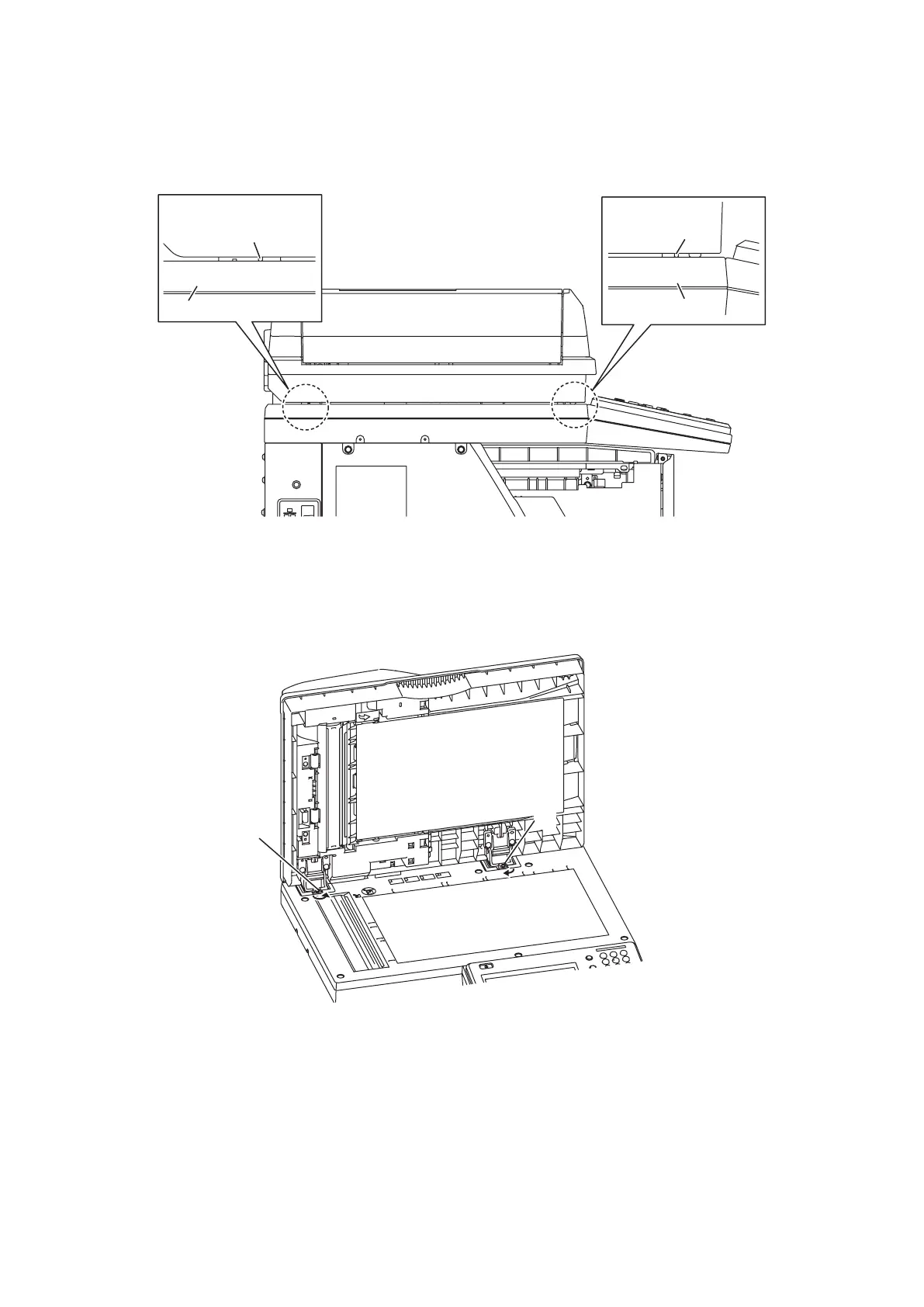

1. Close the Cover platen and check the height of the Cover platen and the left side body.
Looking from the left side, check to see if the lug [1] on the backside of the Cover platen and the lug [2]
on the front side is in contact with the Cover top FBS [3]. If not in contact, adjust with the following meth-
od.
[
1
]
[
3
]
[
2
]
[
3
]
2. Open the Cover platen and adjust the Hinge screw.
If the lug [1] on the backside is not in contact, turn the Hinge L screw [4] counterclockwise. (Loosen)
If the lug [2] on the front side is not in contact, first turn the Hinge L screw [4] clockwise within the range
the lug on the backside [1] comes in contact. (Enclose)
Next, turn the Hinge R screw [5] clockwise. (Enclose)
[
4
]
[
5
]
