Firewall Protection

141

ProSecure Unified Threat Management (UTM) Appliance

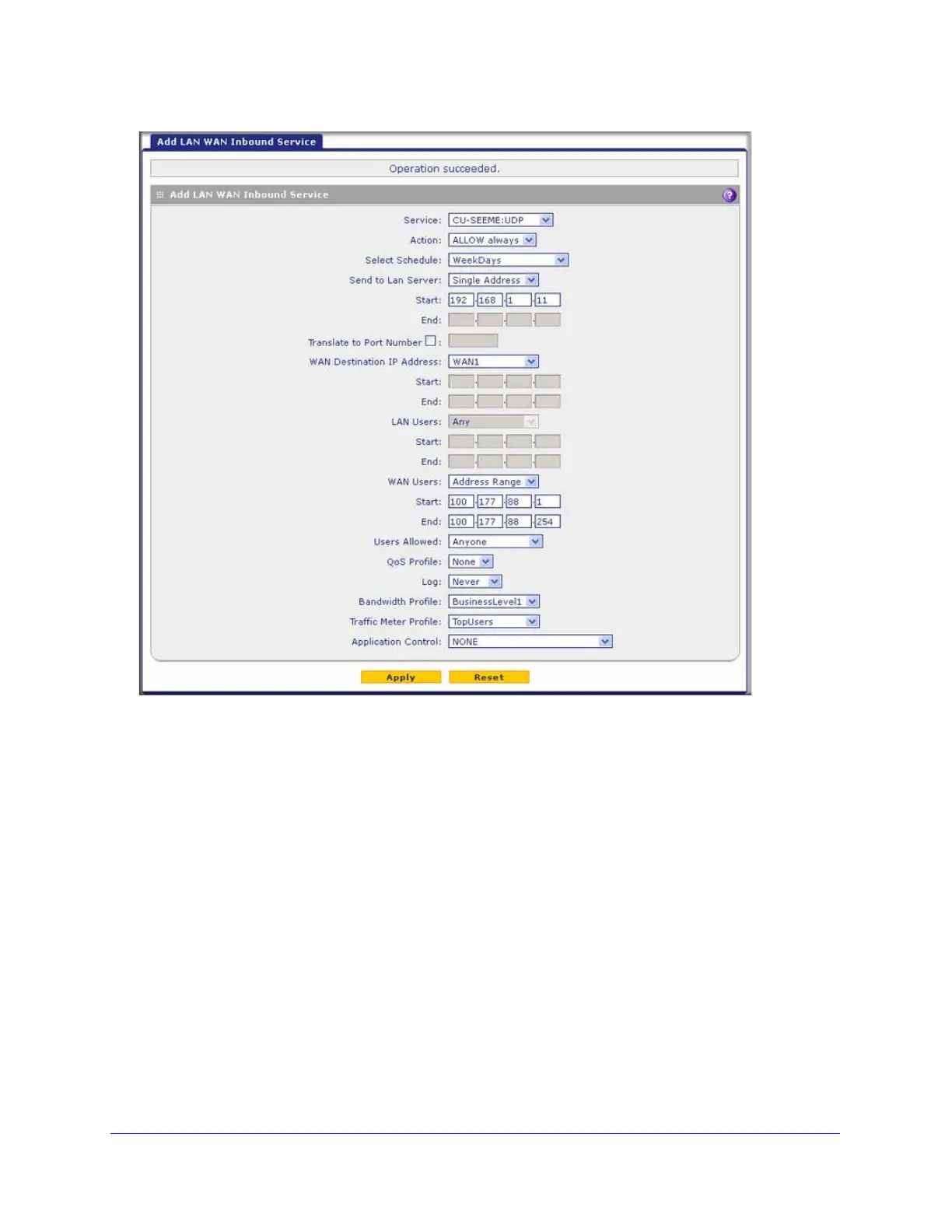

Figure 75.

LAN WAN or DMZ WAN Inbound Rule: Set Up One-to-One NAT Mapping

In this example, multi-NAT is configured to support multiple public IP addresses on one WAN

interface. An inbound rule configures the UTM to host an additional public IP address and

associate this address with a web server on the LAN. (To configure a secondary WAN IP

address, see Configure Secondary WAN Addresses on page 84.)

The following addressing scheme is used to illustrate this procedure:

• NETGEAR UTM:

- WAN IP address. 10.1.0.118

- LAN IP address subnet. 192.168.1.1 with subnet 255.255.255.0

- DMZ IP address subnet. 192.168.10.1 with subnet 255.255.255.0

• Web server PC on the UTM’s LAN:

- LAN IP address. 192.168.1.2

- DMZ IP address. 192.168.10.2

- Access to web server is (simulated) public IP address. 10.1.0.52
