ReadyNAS Integration

590

ProSecure Unified Threat Management (UTM) Appliance

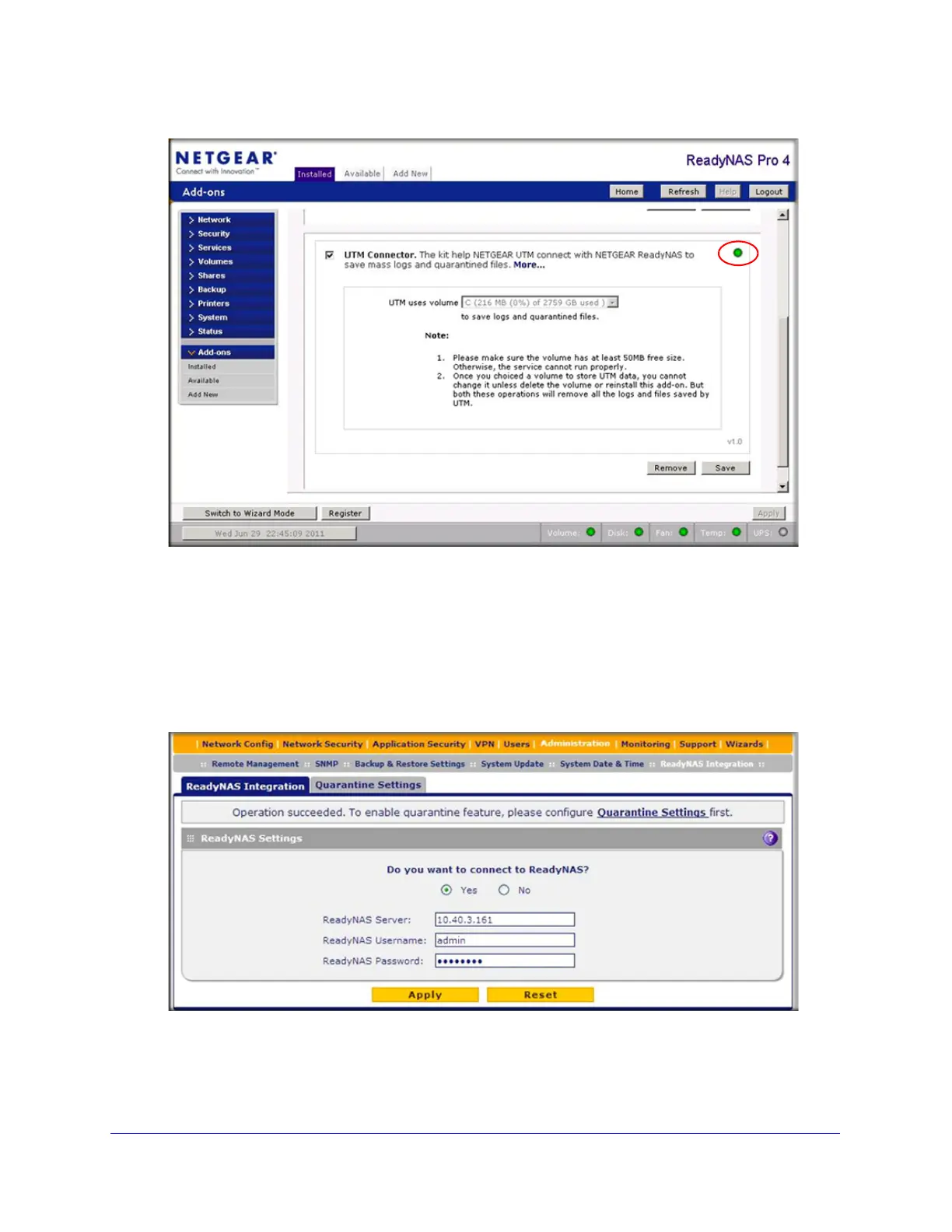

Figure 357.

Connect to the ReadyNAS on the UTM

 To connect to the ReadyNAS on the UTM:

1. Select Administration > ReadyNAS Integration. The ReadyNAS Integration screen

displays:

Figure 358.

2. To connect to the ReadyNAS, click the Yes radio button.
