Virtual Private Networking Using IPSec Connections
273
ProSecure Unified Threat Management (UTM) Appliance
The Active IPSec SA(s) table lists each active connection with the information that is
described in the following table. The default poll interval is 5 seconds. To change the poll
interval period, enter a new value in the Poll Interval field, and then click the Set Interval
button. To stop polling, click the Stop button.

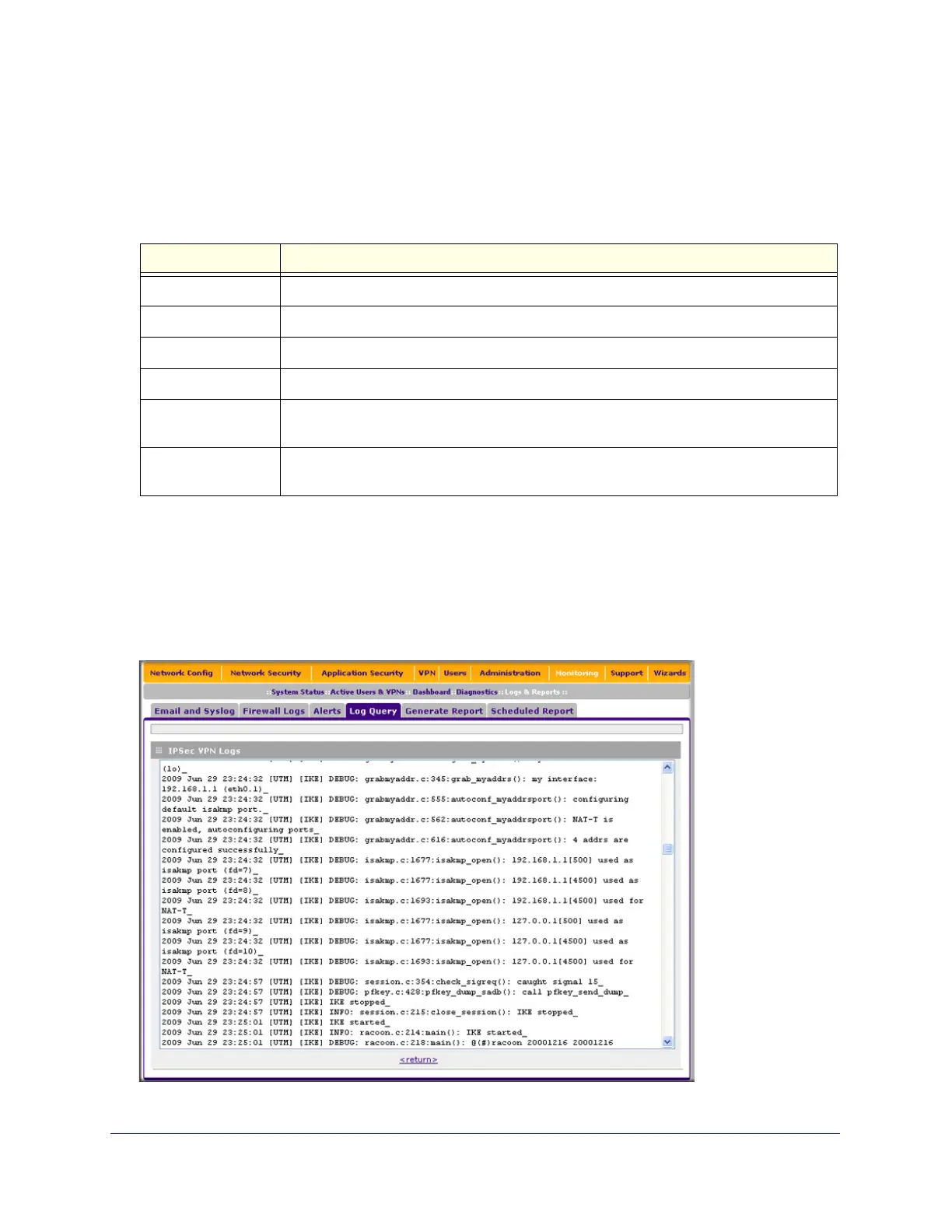

View the UTM IPSec VPN Log
 To query the IPSec VPN log:
1. Select Monitoring > Logs & Reports > Logs Query. The Logs Query screen displays.
2. From the Log Type drop-down list, select IPSEC VPN. The IPSec VPN logs display.
Figure 170.
Table 65. IPSec VPN Connection Status screen information
Setting Description
Policy Name The name of the VPN policy that is associated with this SA.
Endpoint The IP address on the remote VPN endpoint.
Tx (KB) The amount of data that is transmitted over this SA.
Tx (Packets) The number of IP packets that are transmitted over this SA.
State The current status of the SA. Phase 1 is the authentication phase, and Phase 2 is key
exchange phase. If there is no connection, the status is IPSec SA Not Established.
Action Click the Connect table button to build the connection, or click the Disconnect table
button to terminate the connection.
