ProSecure Unified Threat Management (UTM) Appliance
2. Factory default Reset button. Using a sharp object, press and hold this button for about
8 seconds until the front panel Test LED flashes to reset the UTM to factory default settings.
Configuration changes are lost, and the default password is restored.
3. Console switch to select the console connection: Main Board (left position), Slot 1 (middle
position), or Slot 2 (right position).
4. Console port (9600,N,8,1). Port for connecting to an optional console terminal. The port has
a DB9 male connector. The default baud rate is 9600 K. The pinouts are (2) Tx, (3) Rx, (5)
and (7) Gnd.
5. AC power receptacle. Universal AC input (100–240 VAC, 50–60 Hz).
6. Power On/Off switch.
Bottom Panels with Product Labels
The product label on the bottom of the UTM’s enclosure displays factory defaults settings,
regulatory compliance, and other information.

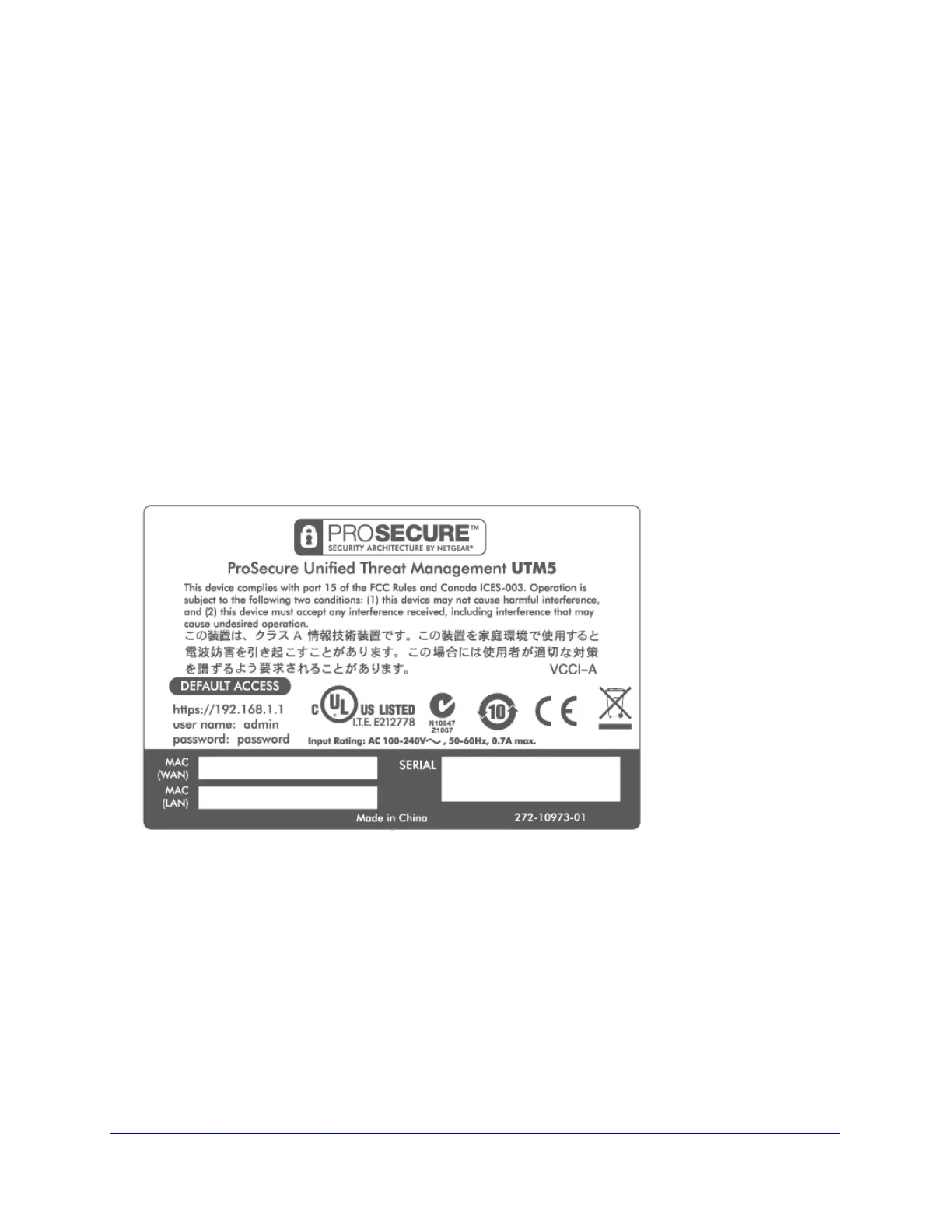

The following figure shows the product label for the UTM5:
Figure 12.
