Using the Setup Wizard to Provision the UTM in Your Network

ProSecure Unified Threat Management (UTM) Appliance

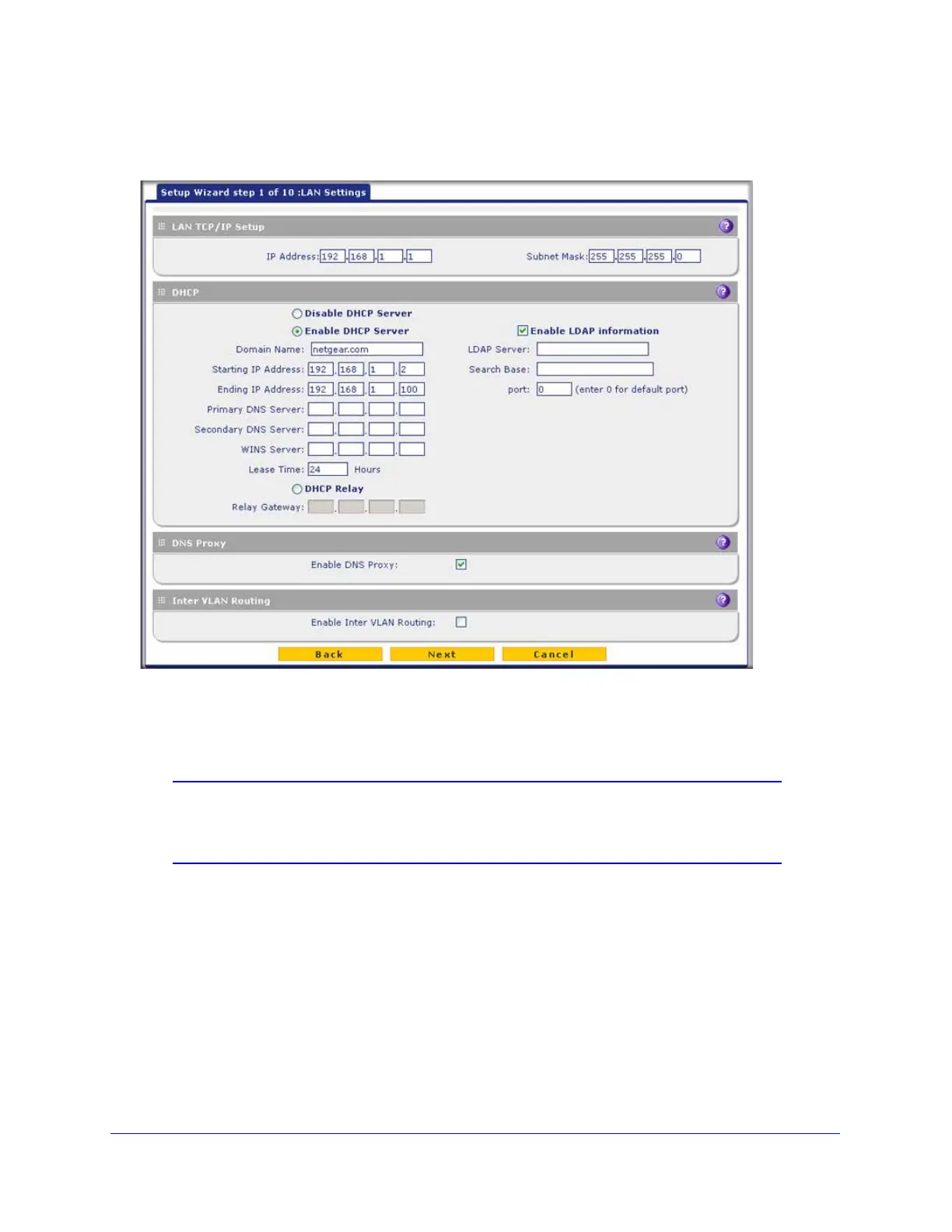

Setup Wizard Step 1 of 10: LAN Settings

Figure 25.

Enter the settings as explained in the following table, and then click Next to go the following

screen.

Note: In this first step, you are actually configuring the LAN settings for the

UTM’s default VLAN. For more information about VLANs, see

Manage Virtual LANs and DHCP Options on page 92.
