Virtual Private Networking Using IPSec Connections

264

ProSecure Unified Threat Management (UTM) Appliance

Configure the Authentication Settings (Phase 1 Settings)

 To create new authentication settings:

1. Right-click the VPN client icon in your Windows system tray, and select Configuration

Panel. The Configuration Panel screen displays.

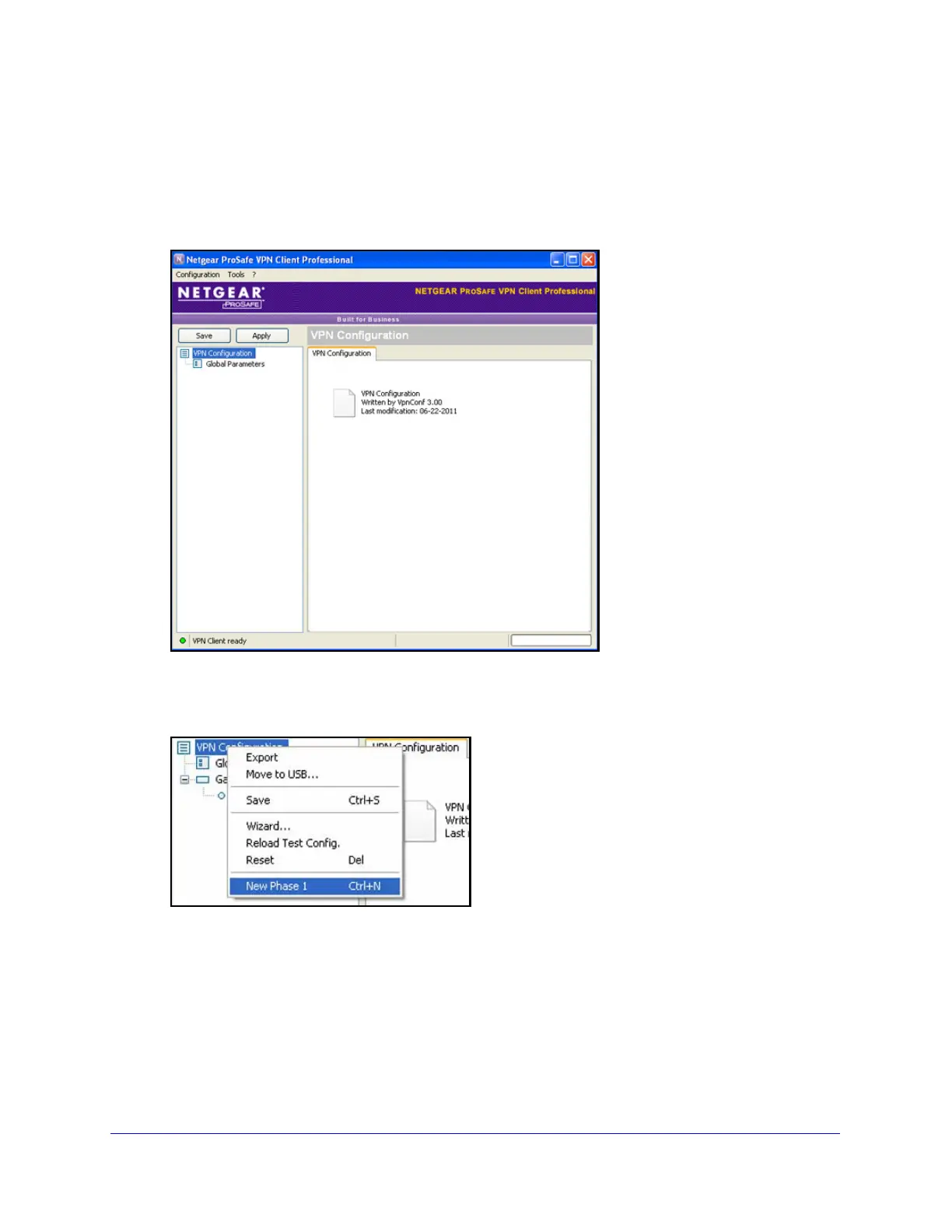

Figure 157.

2. In the tree list pane of the Configuration Panel screen, right-click VPN Configuration, and

select New Phase 1.

Figure 158.

3. Change the name of the authentication phase (the default is Gateway):

a. Right-click the authentication phase name.

b. Select Rename.

c. Type vpn_client.

d. Click anywhere in the tree list pane.
