Managing Users, Authentication, and VPN Certificates

360

ProSecure Unified Threat Management (UTM) Appliance

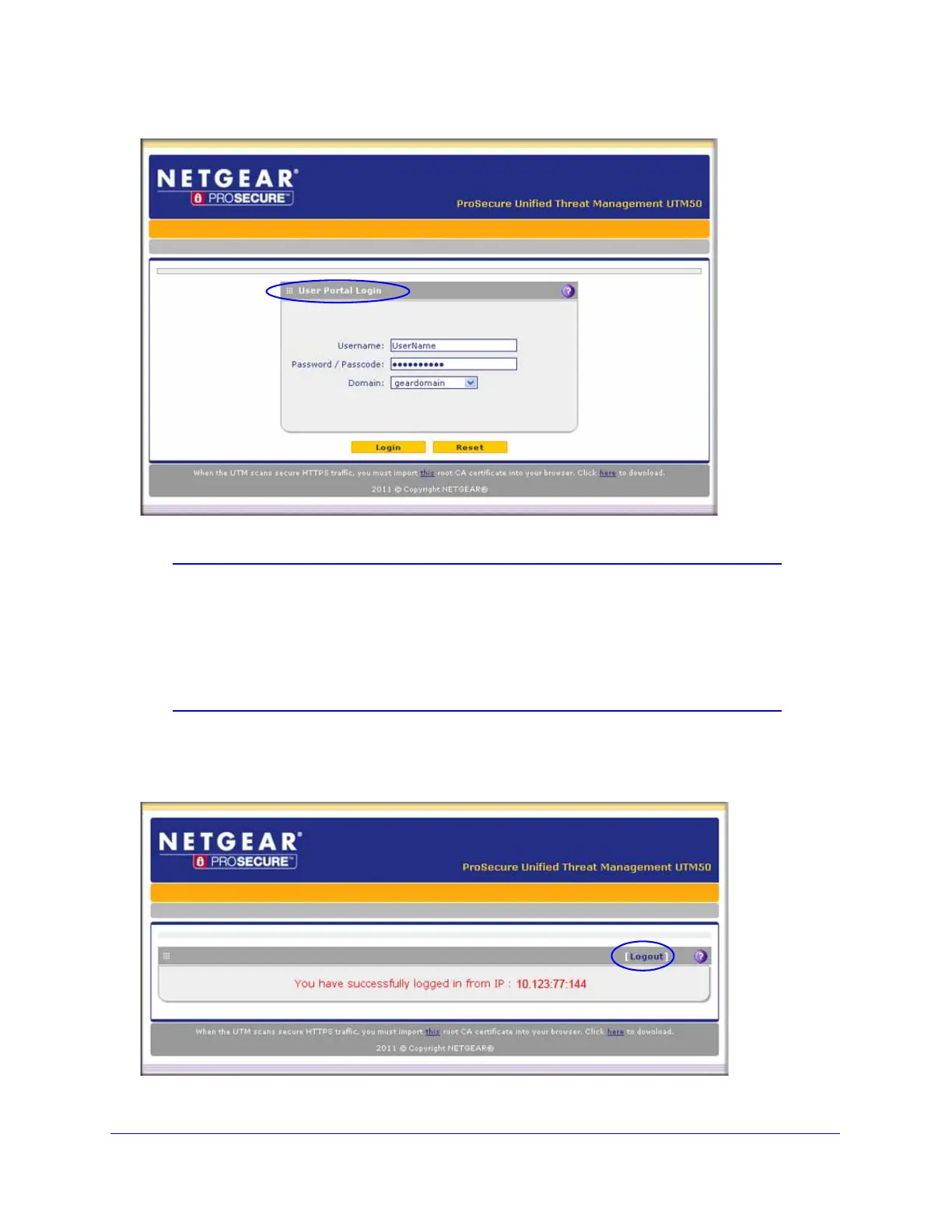

Figure 216.

Note: The first time that a user remotely connects to a UTM with a browser

through an SSL connection, he or she might get a warning message

about the SSL certificate. The user can follow the directions of his or

her browser to accept the SSL certificate, or import the UTM’s root

certificate by selecting the link at the bottom of the User Portal Login

screen.

After a user has logged in through the User Portal Login screen, a confirmation screen

displays:

Figure 217.
