xDSL Module for the UTM9S
525
ProSecure Unified Threat Management (UTM) Appliance

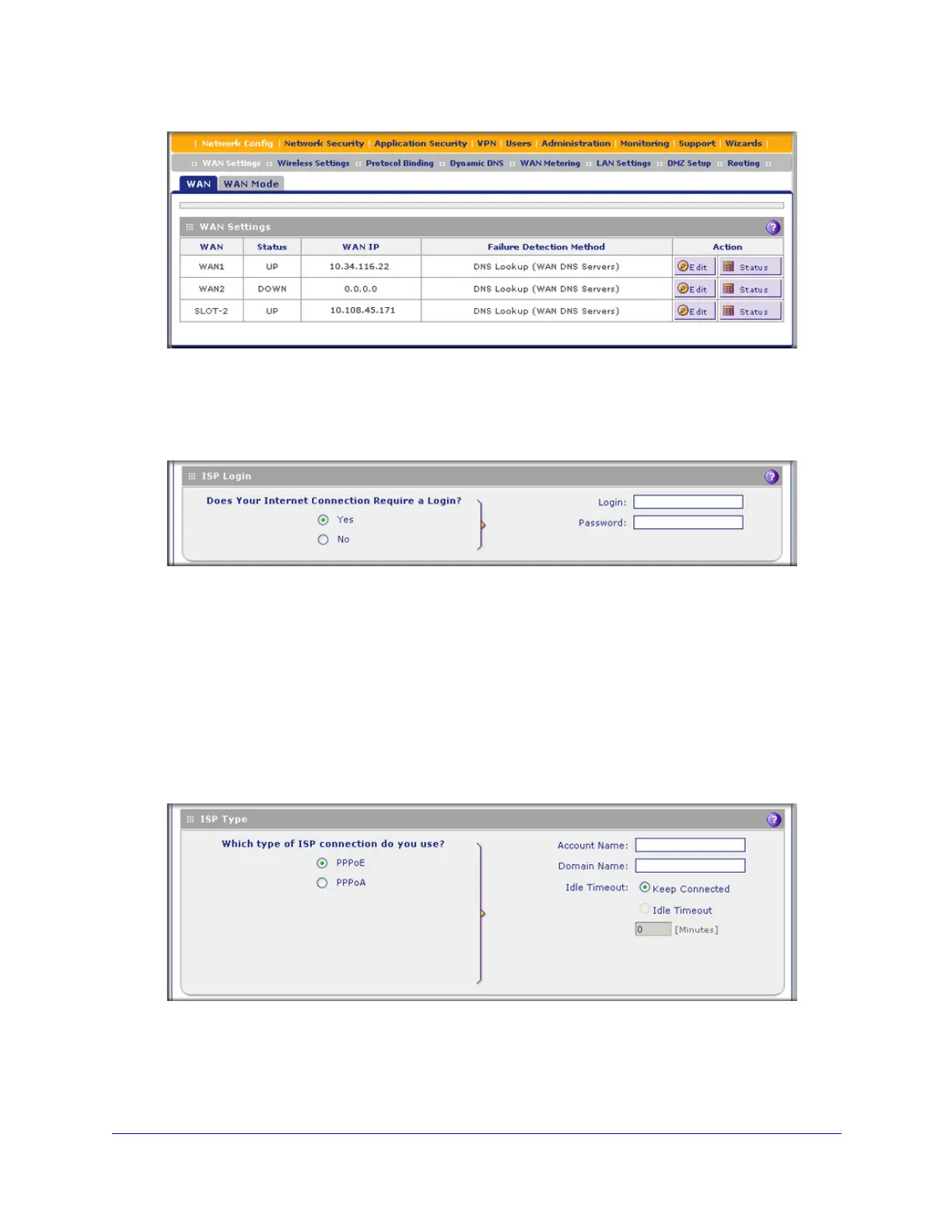

Figure 309.
2. Click the Edit button in the Action column of the SLOT-x interface. The SLOT-x ISP Settings
screen displays (see Figure 307 on page 522).
3. Locate the ISP Login section onscreen:
Figure 310.
In the ISP Login section, select one of the following options:
• If your ISP requires an initial login to establish an Internet connection, select Yes.
(The default is No.)
• If a login is not required, select No, and ignore the Login and Password fields.
4. If you selected Yes, enter the login name in the Login field and the password in the
Password field. This information is provided by your ISP.
5. In the ISP Type section of the screen, select the type of ISP connection that you use from
the two listed options. By default, PPPoE is selected, as shown in the following figure:
Figure 311.
