xDSL Module for the UTM9S

540

ProSecure Unified Threat Management (UTM) Appliance

 To configure DDNS:

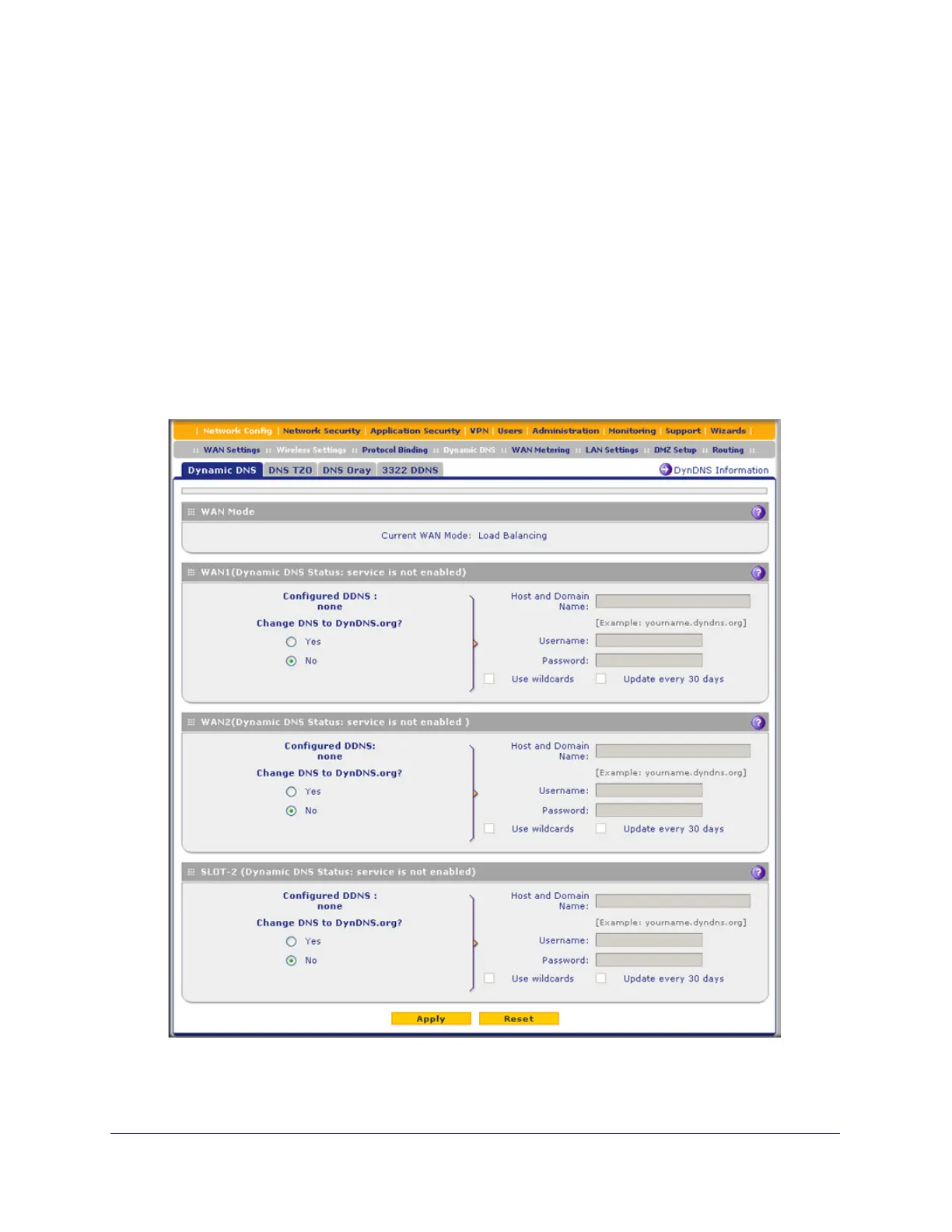

1. Select Network Config > Dynamic DNS. The Dynamic DNS screen displays (see the

following figure).

The WAN Mode section onscreen reports the currently configured WAN mode (for

example, Single Port WAN1, Load Balancing, or Auto Rollover). Only those options that

match the configured WAN mode are accessible onscreen.

2. Click the submenu tab for your DDNS service provider:

• Dynamic DNS for DynDNS.org (which is shown in the following figure)

• DNS TZO for TZO.com

• DNS Oray for Oray.net

• 3322 DDNS for 3322.org

Figure 319.
