Manually Configuring Internet and WAN Settings

ProSecure Unified Threat Management (UTM) Appliance

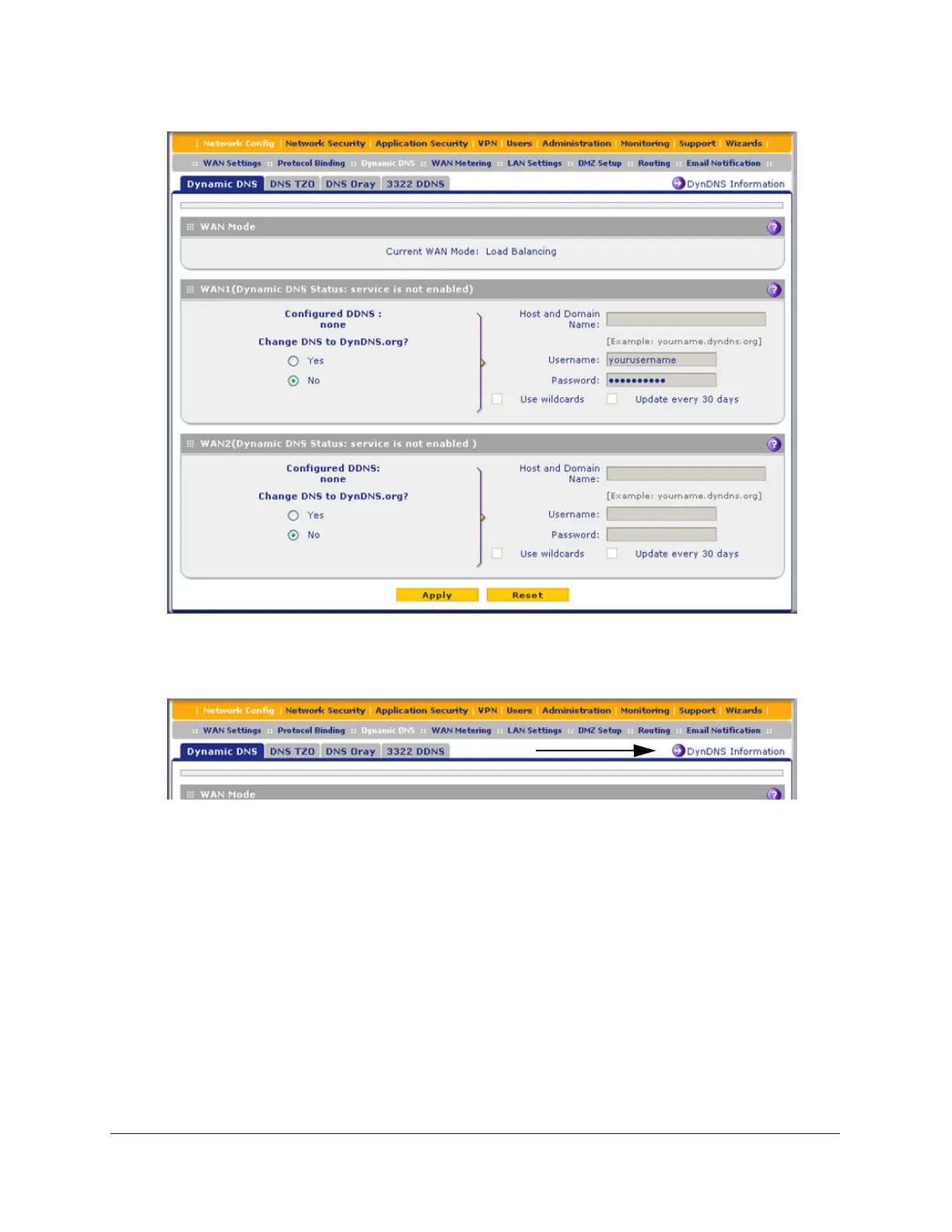

Figure 49.

3. Click the Information option arrow in the upper right of a DNS screen for registration

information.

Figure 50.

4. Access the website of the DDNS service provider, and register for an account (for example,

for DynDNS.org, go to http://www.dyndns.com/).
