4. Part Replacement

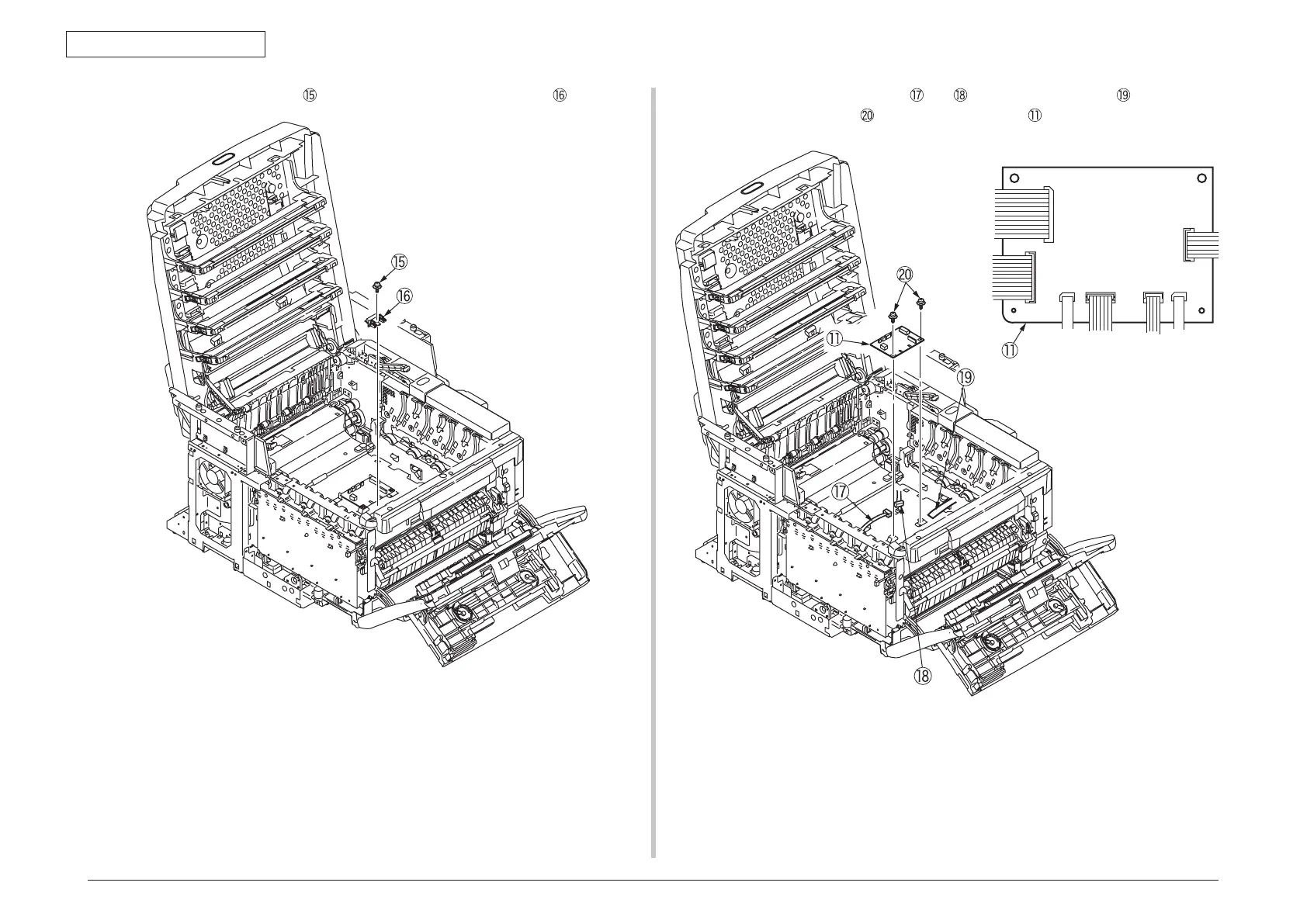

(7) Remove the screw (silver)
and disconnect the contact Assy Head . (Tool No. 1) (8) Disconnect the two connectors and , and the FFC connector . Then remove
the two screws (silver)
and the relay PCB (P6Y) . (Tool No. 1)
LCR
DENS
RCR
FUSERIN
FUSER
PUIF
EXIT
Relay PCB (P6Y)
