Oki MC860 Maintenance Manual

43967002TH Rev.1
247 /
Oki Data CONFIDENTIAL
5. Maintenance Menu

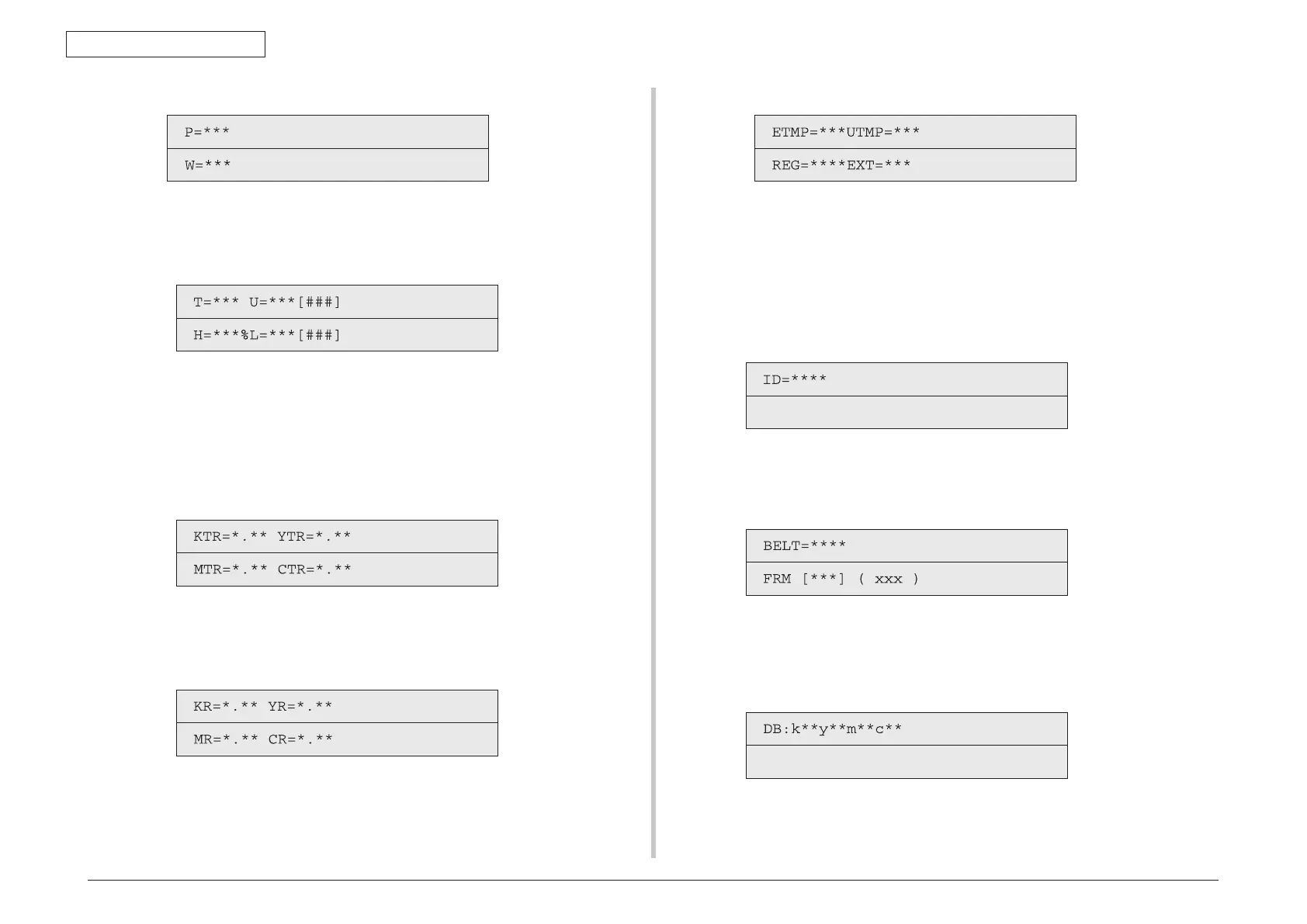

• The following messages are displayed during test print.
P Number of test prints (unit: sheet)
W Print wait time (unit: sheet)
• Pressing the (2) key switches the display.
U *** = Upper heater temperature measurement value. [unit: °C]
[###] = Print execute target temperature [unit: °C]
L: *** = Lower thermistor measurement value. [unit: °C]
[###] = Lower thermistor read-out AD value [unit: HEX]
T: Environment temperature measurement value [unit: °C] Environment
humidity measurement value [unit: %]
•
Pressing the (2) ke
y switches the display.
YTR, MTR, CTR and KTR are the transfer voltage setting value for each
color. (unit KV)
• Pressing the (2) key switches the display.
KR: BLACK transfer roller resistance value [unit: μA]
YR: YELLOW transfer roller resistance value [unit: μA]
MR: MAGENTA transfer roller resistance value [unit: μA]
CR: CYAN transfer roller resistance value [unit: μA]
• Pressing the (2) key switches the display.
ETMP: Hopping motor standard speed correction parameter (Environment
temperature) [unit: DEC]
UTMP: Fuser motor standard speed correction parameter (Fuser target
temperature) [unit: DEC]
REG: Hopping motor standard speed timer value (I/O setting value) [unit:
HEX]
EXT: Fuser motor standard speed timer value (I/O setting value) [unit: HEX]
•
Pressing the (2) ke
y switches the display.
KID, YID, MID and CID are the standard speed timer value for each ID motor
(I/O setting value) [unit: HEX]
• Pressing the (2) ke
y switches the display.
BELT: Belt motor standard speed timer value (I/O setting value) [unit: HEX]
FRM: [***] = Frame thermistor read-out AD value [unit: HEX]
( xxx ) = Frame temperature [unit: °C]
• Pressing the (2) ke
y switches the display.
DB: Develop voltage setup table ID number [unit: HEX]

Oki MC860 Specifications

Printing Specifications

print speed color	26 ppm
print speed black & white	33 ppm
time to first page color	10 seconds
time to first page black & white	9.5 seconds
print resolution	1200 x 600 dpi
processor	500 MHz PowerPC CPU
duty cycle	75, 000 prints per month

Copying Specifications

copy speed color	26 cpm
copy speed black & white	33 cpm
first copy out color	14.5 seconds
first copy out black & white	13 seconds
copy resolution	600 x 600 dpi

Scanning Specifications

scan type	Color and black & white
max scan area	11" x 17"
scan speed black & white	33 spm
scan speed color	26 spm
scan resolution	600 dpi

Fax Specifications

fax modem	33.6 Kbps Super G3
transmission speed	2 seconds/page
fax resolution	600 x 600 dpi
speed dial locations	500 locations
broadcast transmission locations	530 locations

Power and Acoustic Noise

power consumption peak	1, 300W
power consumption standby	160W Avg.
power save mode	≤25W
acoustic noise operating	54dB
acoustic noise standby	≤37dB

System Memory

standard imaging RAM	512 MB
max imaging RAM	768 MB
hard disk drive	40 GB

Weight and Dimensions

1-tray configuration dimensions	22.2" x 25.9" x 26.3"
2-tray configuration dimensions	33.3" x 30.2" x 44.5"
weight 1-tray configuration	149.9 lb
weight 2-tray configuration	200.6 lb
weight 3-tray configuration	211.6 lb
