7. Troubleshooting
(3) Error number and location of the cause of the error when jam occurs
Error No. Jam contents
Location of
the cause
of the jam
Related sensors
Removal method when
jam occurs
370 Duplex reversal J1 DUP-IN, DUP-R Jam removal method
371 Duplex input J2 DUP-F, DUP-R J
am removal method
372 Feed error at Duplex J3 IN1 Jam removal method
373 Multi-feed in Duplex
Unit
J4 DUP-B Jam removal method
380 Feed J5 IN2, WR Jam removal method
381 Transport J6 IN1, IN2, WR, Fuser-
IN, EXIT
Jam removal method
382 Exit J7 EXIT, Fuser-IN J
am removal method
383 Duplex entry J8 EXIT, DUP-IN, DUP-R Jam removal method
385 Around Fuser Unit J13 Fuser thermister Jam removal method
390 Feed error at front
feeder
J9 IN2, WR Jam removal method
391 Tray1 J10 IN1 Jam removal method ,
392 Tray2 J11 2nd-IN Jam removal method
400 Paper size error J12 IN1 Jam removal method

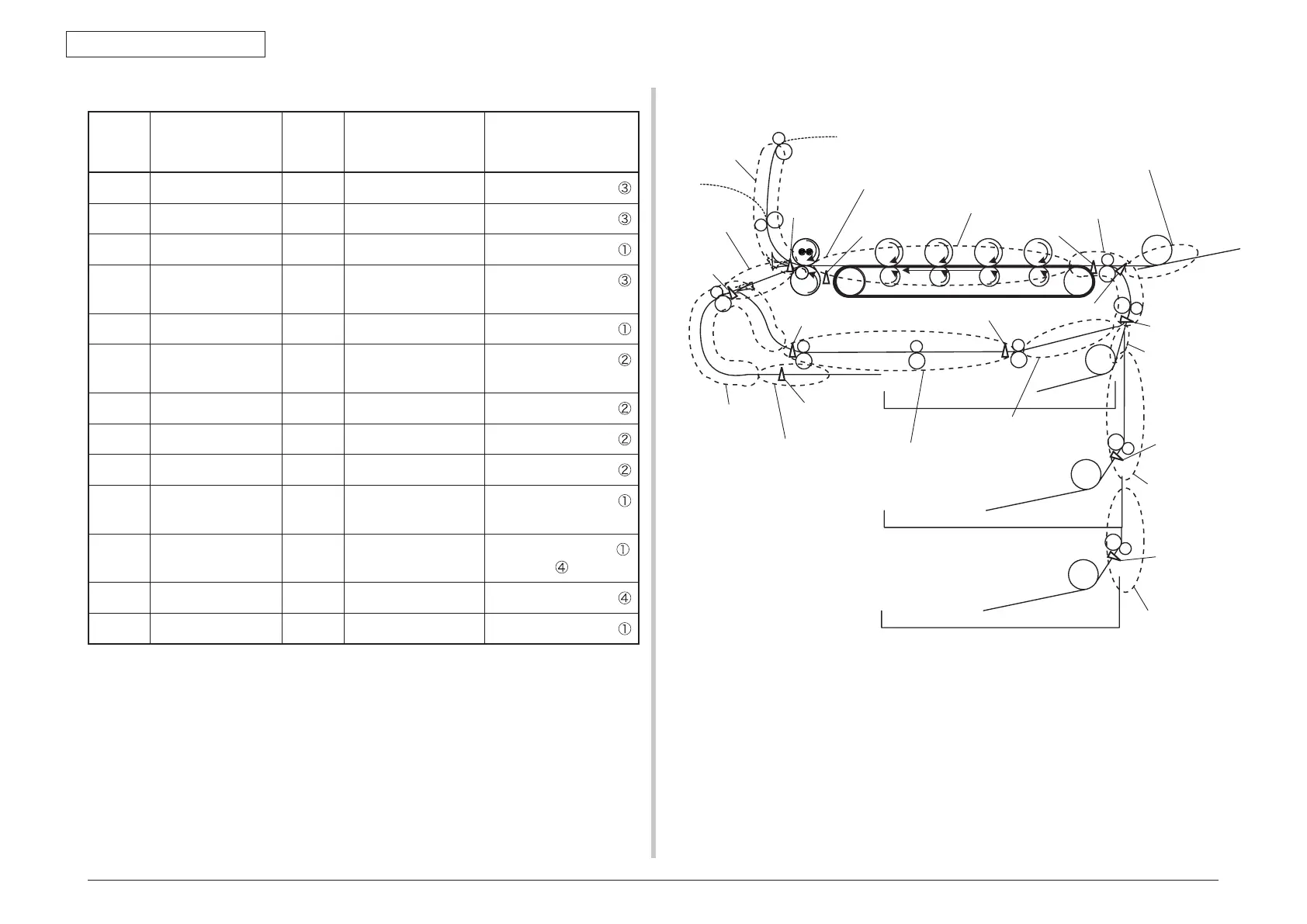

Diagram showing locations where jams occur
J7
(382:EXIT)
J8
(383:DUPLEX
ENTRY)
J1
(370:DUPLEX
REVERSAL)
DUP-IN
sensor
DUP-B sensor
2nd-IN
SENSOR
IN1 sensor
IN2 sensor
WR sensor
DUP-R SENSOR
Fuser-IN sensor
DUP-F sensor
EXIT sensor
J4
(373:MULTIFEED IN
DUPLEX UNIT)
J2
(371:DUPLEX INPUT)
J11
(392:TRAY2)
J10
(391:TRAY1)
J3
(372:MISS FEED AT DUPLEX)
J9
(390:MISS FEED AT
FRONTFEEDER)
J6
(381:TRANSPORT)
J5(380:FEED)
J12(400:PAPER
SIZE ERROR)
3nd-IN
SENSOR
Jxx
(xxx:TRAY3)
J13
(385:Around Fuser Unit)

Oki MC860 Specifications

Printing Specifications

print speed color	26 ppm
print speed black & white	33 ppm
time to first page color	10 seconds
time to first page black & white	9.5 seconds
print resolution	1200 x 600 dpi
processor	500 MHz PowerPC CPU
duty cycle	75, 000 prints per month

Copying Specifications

copy speed color	26 cpm
copy speed black & white	33 cpm
first copy out color	14.5 seconds
first copy out black & white	13 seconds
copy resolution	600 x 600 dpi

Scanning Specifications

scan type	Color and black & white
max scan area	11" x 17"
scan speed black & white	33 spm
scan speed color	26 spm
scan resolution	600 dpi

Fax Specifications

fax modem	33.6 Kbps Super G3
transmission speed	2 seconds/page
fax resolution	600 x 600 dpi
speed dial locations	500 locations
broadcast transmission locations	530 locations

Power and Acoustic Noise

power consumption peak	1, 300W
power consumption standby	160W Avg.
power save mode	≤25W
acoustic noise operating	54dB
acoustic noise standby	≤37dB

System Memory

standard imaging RAM	512 MB
max imaging RAM	768 MB
hard disk drive	40 GB

Weight and Dimensions

1-tray configuration dimensions	22.2" x 25.9" x 26.3"
2-tray configuration dimensions	33.3" x 30.2" x 44.5"
weight 1-tray configuration	149.9 lb
weight 2-tray configuration	200.6 lb
weight 3-tray configuration	211.6 lb
