Oki MC860 Maintenance Manual

Oki Data CONFIDENTIAL
43967002TH Rev. 1
325 /
7. Troubleshooting

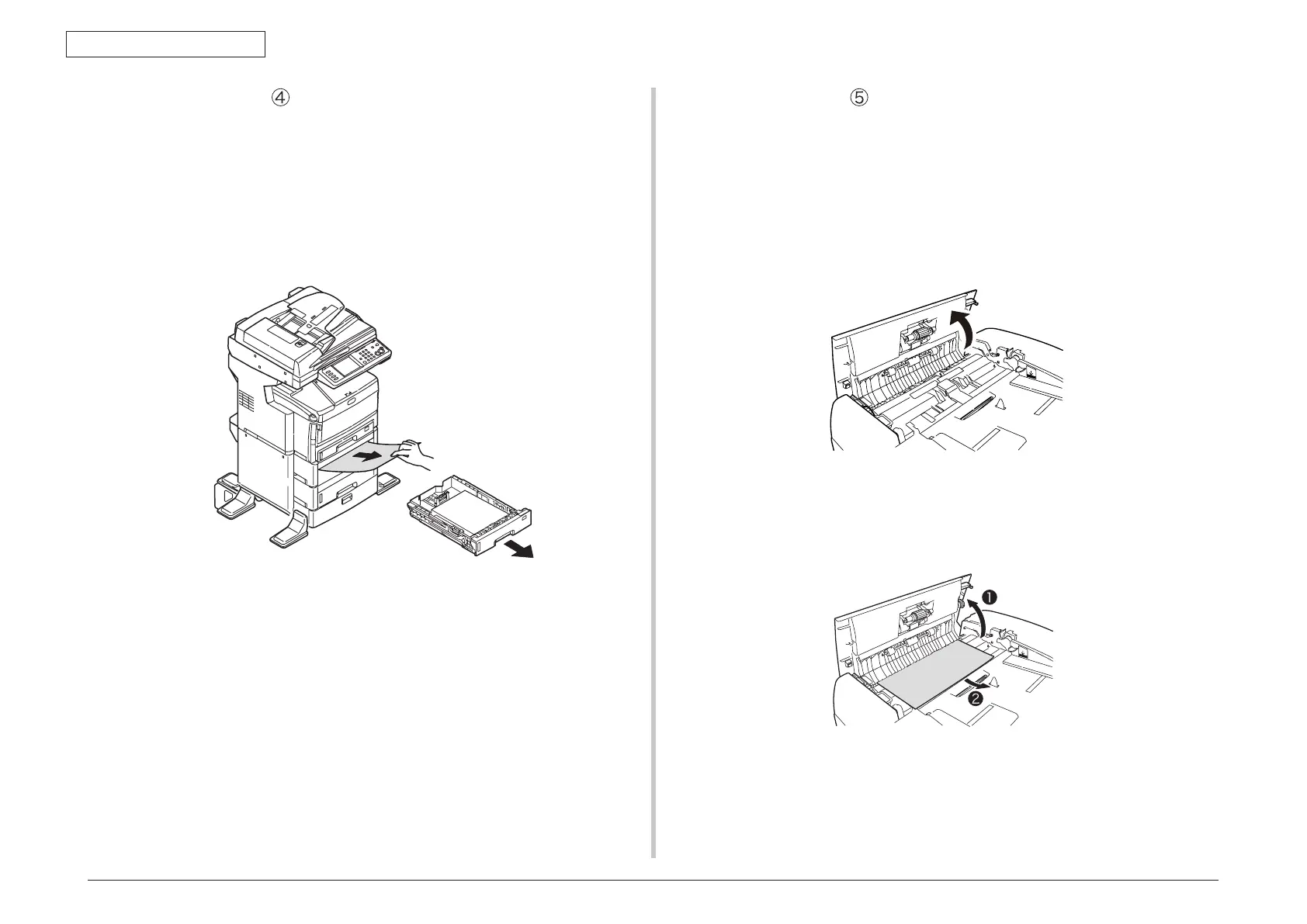

Jam recovery method
Second tray unit (Option) (Code: 391, 393)
This manual describes the jam clear method using the tray 2 as an example. Tray 3 can also
be cleared of jam in the same method.
(1) R
emove the paper tray from the second tray unit, and remove the paper.
(2) After the jammed paper is removed, open the MP tray, push up the center lever.
Then the front cover can be opened or closed.
Jam recovery method
RADF unit (Code: xxx, xxx)
Note! If the jammed paper cannot be removed by all means, do not remove with
excessive force. Instead, rotate the dial until the jammed document can be
transported outside. If any attempt is made to pull out the jammed paper with
force, the jammed document may be broken.
(
1) R
aise the document cover OPEN lever and open the document cover.
(2) Draw out the jammed paper gently with care. If the jammed paper cannot be
removed, go to step (4).
Note! Do not pull the document out with excessive force.
(3
) When the jammed paper is removed, go to step (9).

Oki MC860 Specifications

Printing Specifications

print speed color	26 ppm
print speed black & white	33 ppm
time to first page color	10 seconds
time to first page black & white	9.5 seconds
print resolution	1200 x 600 dpi
processor	500 MHz PowerPC CPU
duty cycle	75, 000 prints per month

Copying Specifications

copy speed color	26 cpm
copy speed black & white	33 cpm
first copy out color	14.5 seconds
first copy out black & white	13 seconds
copy resolution	600 x 600 dpi

Scanning Specifications

scan type	Color and black & white
max scan area	11" x 17"
scan speed black & white	33 spm
scan speed color	26 spm
scan resolution	600 dpi

Fax Specifications

fax modem	33.6 Kbps Super G3
transmission speed	2 seconds/page
fax resolution	600 x 600 dpi
speed dial locations	500 locations
broadcast transmission locations	530 locations

Power and Acoustic Noise

power consumption peak	1, 300W
power consumption standby	160W Avg.
power save mode	≤25W
acoustic noise operating	54dB
acoustic noise standby	≤37dB

System Memory

standard imaging RAM	512 MB
max imaging RAM	768 MB
hard disk drive	40 GB

Weight and Dimensions

1-tray configuration dimensions	22.2" x 25.9" x 26.3"
2-tray configuration dimensions	33.3" x 30.2" x 44.5"
weight 1-tray configuration	149.9 lb
weight 2-tray configuration	200.6 lb
weight 3-tray configuration	211.6 lb
