3. Installation

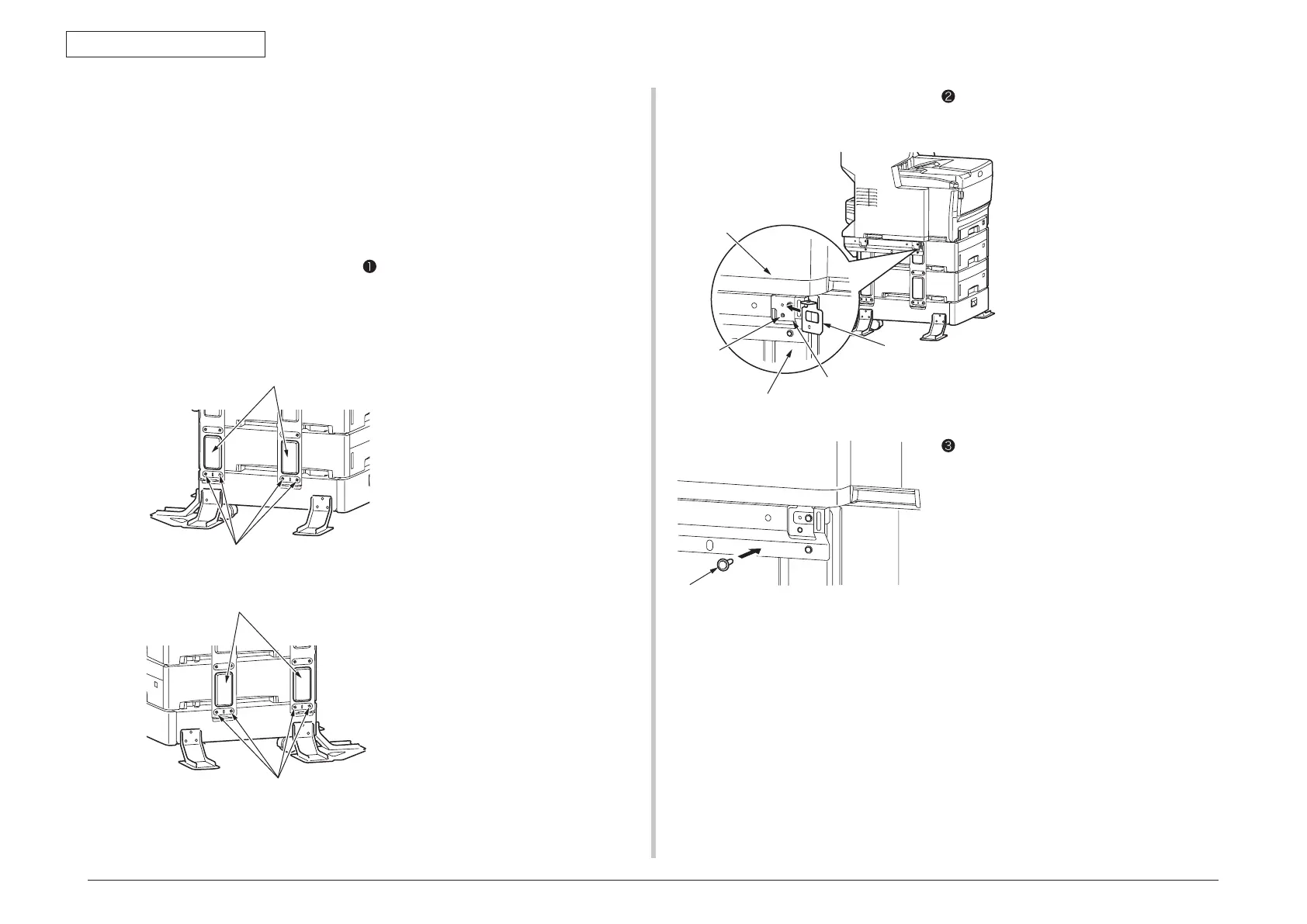

5. Fix the main unit to the add-on tray unit temporarily.
Loosen the 8 screws of the studs of the add-on tray unit first. Then fix them temporarily.
Tighten the screws temporarily at the two locations on the left side and two locations on the
right side. Start tightening the screws on the left side.
Note!
Do not tighten these screws with force.
Align the lower hole of the fastener with
the screw hole of the add-on tray unit.
Insert the screw and tighten the screw
lightly.
Note!
Do not tighten with force.
Screw
Hole
Add-on tray unit
Screw hole
Main unit
Fastener
Insert the fastener into the installation
position from the front on the left side of
the main unit.
Fixing screw
Stud
Fixing screw
Stud
Left side
Right side
Loosen the four fixing screws of studs on
the left side of the add-on tray first. Then
loose the four fixing screws of the studs
on the right side of the add-on tray.

Oki MC860 Specifications

Printing Specifications

print speed color	26 ppm
print speed black & white	33 ppm
time to first page color	10 seconds
time to first page black & white	9.5 seconds
print resolution	1200 x 600 dpi
processor	500 MHz PowerPC CPU
duty cycle	75, 000 prints per month

Copying Specifications

copy speed color	26 cpm
copy speed black & white	33 cpm
first copy out color	14.5 seconds
first copy out black & white	13 seconds
copy resolution	600 x 600 dpi

Scanning Specifications

scan type	Color and black & white
max scan area	11" x 17"
scan speed black & white	33 spm
scan speed color	26 spm
scan resolution	600 dpi

Fax Specifications

fax modem	33.6 Kbps Super G3
transmission speed	2 seconds/page
fax resolution	600 x 600 dpi
speed dial locations	500 locations
broadcast transmission locations	530 locations

Power and Acoustic Noise

power consumption peak	1, 300W
power consumption standby	160W Avg.
power save mode	≤25W
acoustic noise operating	54dB
acoustic noise standby	≤37dB

System Memory

standard imaging RAM	512 MB
max imaging RAM	768 MB
hard disk drive	40 GB

Weight and Dimensions

1-tray configuration dimensions	22.2" x 25.9" x 26.3"
2-tray configuration dimensions	33.3" x 30.2" x 44.5"
weight 1-tray configuration	149.9 lb
weight 2-tray configuration	200.6 lb
weight 3-tray configuration	211.6 lb
