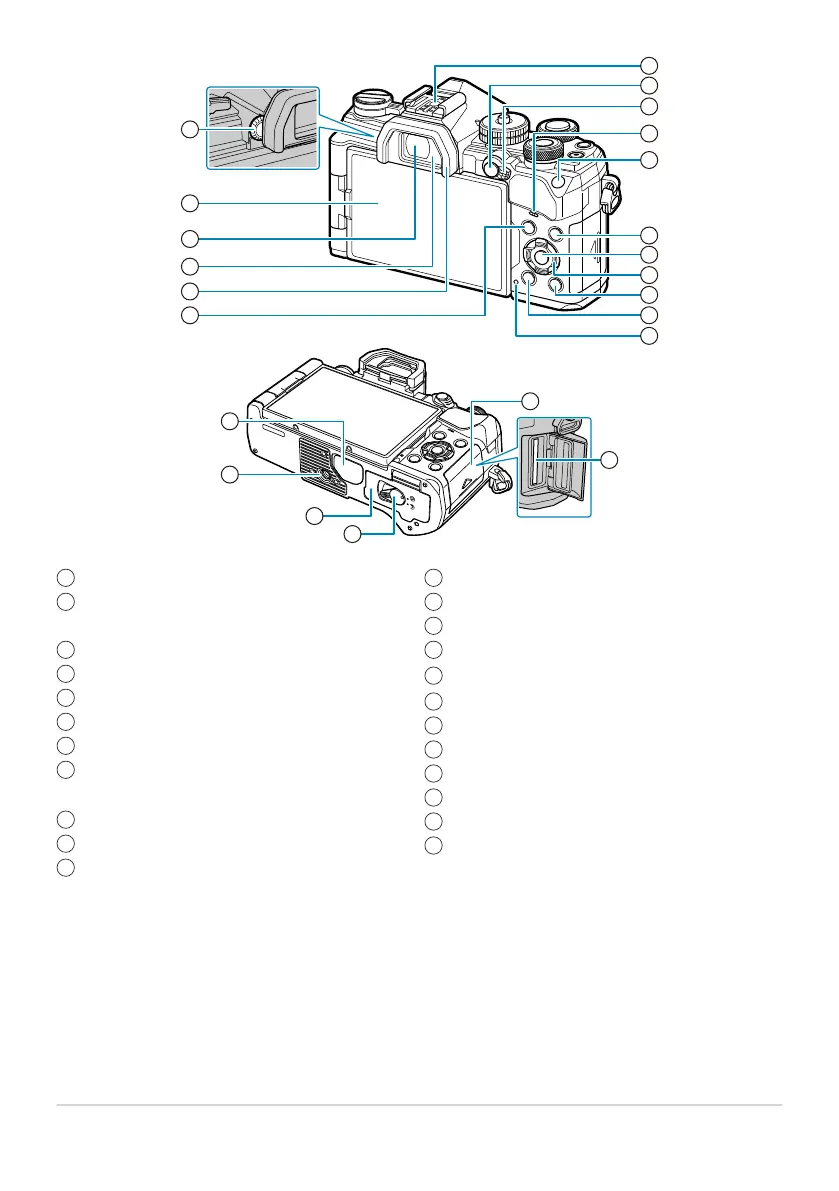

Diopter adjustment dial (P. 40)
Monitor (touch screen) (P. 37, P. 40, P. 46,
P. 179, P. 198, P. 295)
Viewfinder (P. 40, P. 349)
Eye sensor (P. 40, P. 293)
Eyecup (P. 438)
MENU button (P. 200)
Hot shoe (P. 147, P. 432)
AEL/AFL/0 (protect) button (P. 100, P. 299,
P. 188)
Fn lever (P. 233, P. 321)
Speaker
ISO button (P. 98)
1
2
3
4
5
6
7
8
9
10
11
INFO button (P. 41, P. 181)
OK button (P. 111, P. 182, P. 200)
Arrow pad (P. 182)
q (playback) button (P. 182)
D (erase) button (P. 189)
CHARGE (battery charge) lamp (P. 24)
Connector cover
Tripod socket
Battery compartment cover (P. 22)
Battery compartment lock (P. 22)
Card compartment cover (P. 27)
Card slot (P. 27)
12
13
14
15
16
17
18
19
20
21
22
23
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
19
Names of parts
