Mode dial lock (P. 43
)
Rear dial (P. 182, P. 244, P. 275, P. 319)
Shutter button (P. 43)
R (movie)/4 button (P. 82, P. 192, P. 233,
P. 275)
F (exposure compensation) button (P. 89)
Front dial (P. 182, P. 244, P. 275, P. 319)
Lens attachment mark (P. 29)
Preview button (P. 169)
Mount (Remove the body cap before attaching
the lens.)
Mode dial (P. 43)
Stereo microphone (P. 196, P. 246)
ON/OFF lever (P. 22)
U (LV) (P. 40)
1
2
3
4
5
6
7
8
9
10
11
12
13
gY (sequential shooting/self-timer) butt
on
(P. 101)
Self-timer lamp/AF illuminator (P. 101, P. 273)
Microphone jack cover
Remote cable terminal cover
Connector cover
Strap eyelet (P. 21)
Lens release button (P. 30)
Lens lock pin
Microphone jack (A commercially available
microphone can be connected. ø3.5 stereo mini
plug) (P. 246)
Remote cable terminal (P. 439)
HDMI connector (type D) (P. 233, P. 337)
Micro-USB connector (P. 24, P. 371)
14
15
16
17
18
19
20
21
22
23
24
25

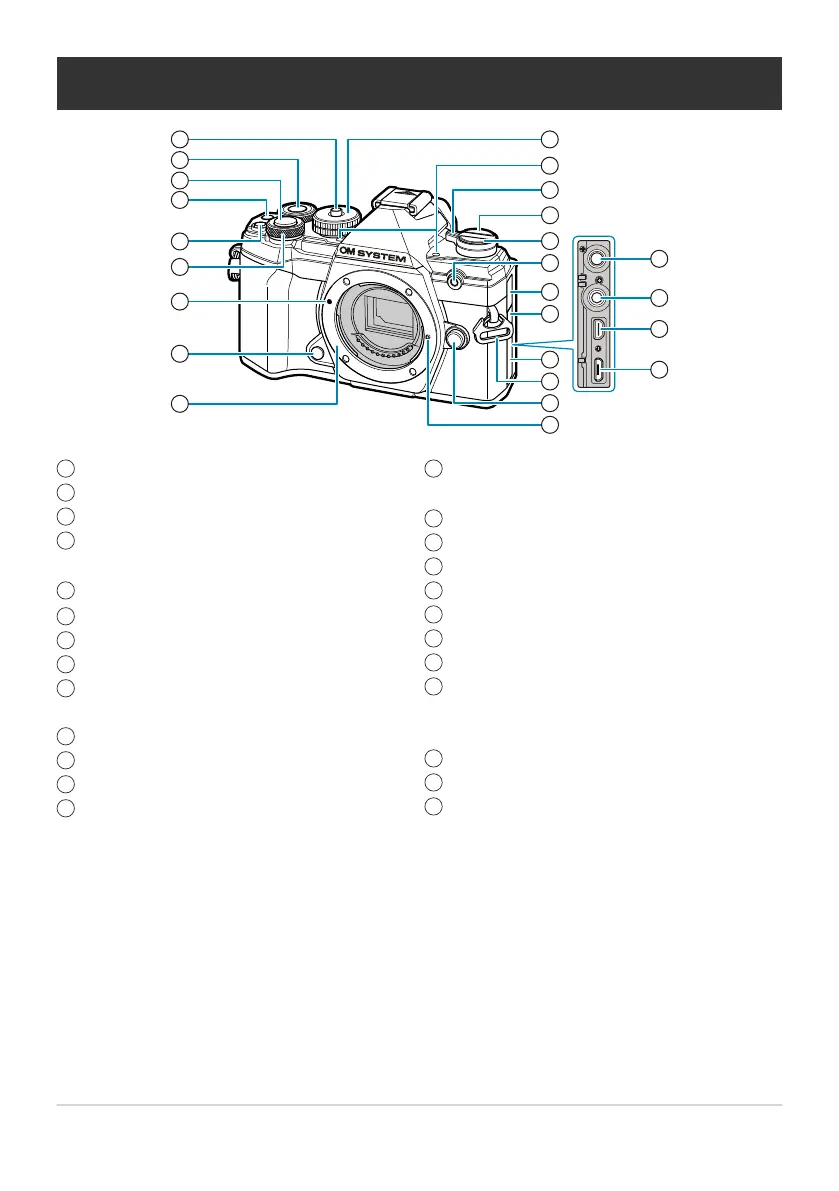

Names of parts
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
18
Names of parts
