Parallel Processing
288
Vision System FH/FZ5 Series
User’s Manual (Z340)
Editing the Measurement Flow
1 In the Main Window (layout 0), select [Function] − [Edit Flow].
2 Drag the following processing items from under [Inspection and measurement support
items], or click the [Insert] button.
• Parallelize
• Parallelize Task
3 Program the processing items to execute in parallel between two Parallelize Task processing
items.

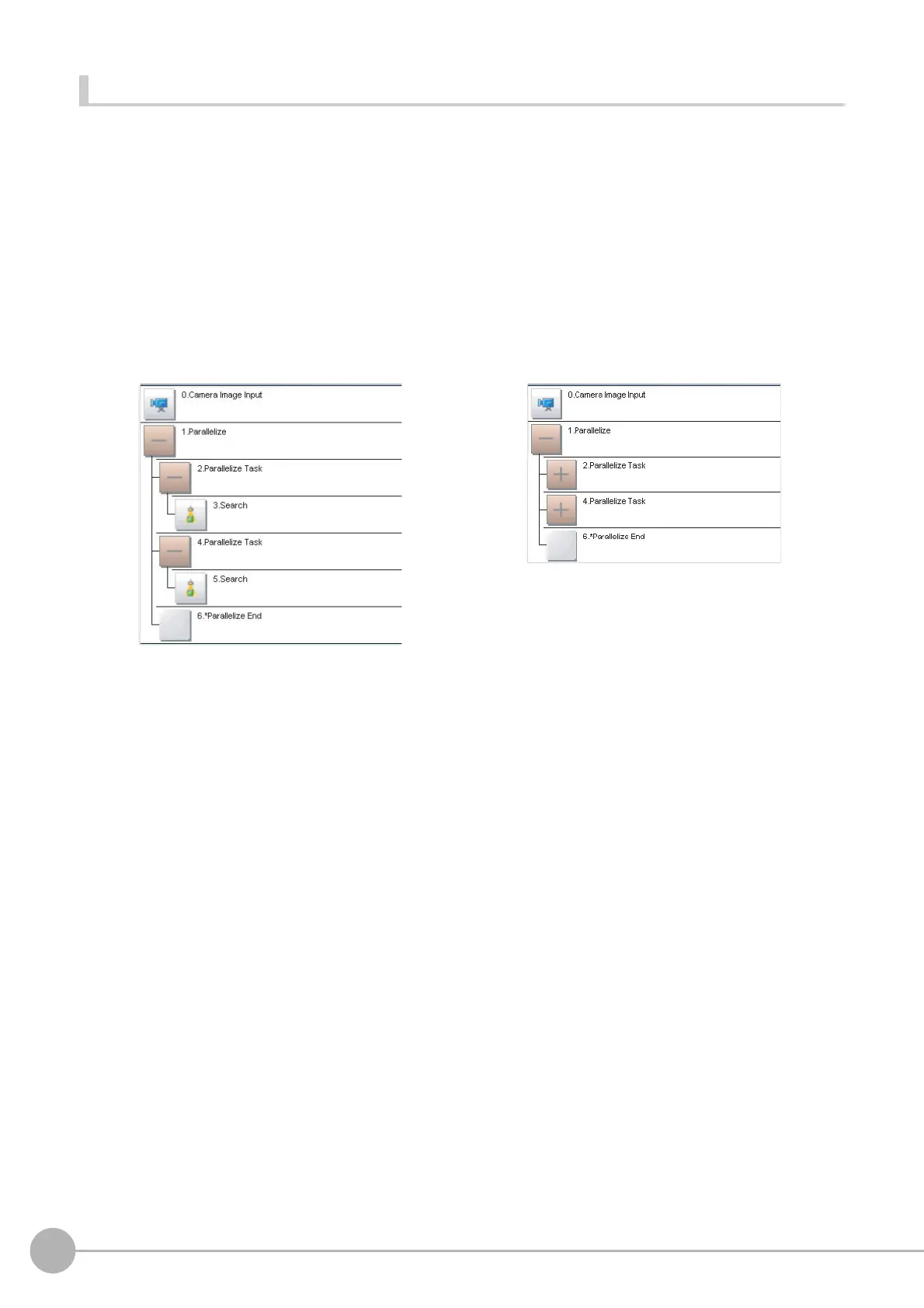

Example:
The Parallelize processing item is the parent, and everything up to the Parallelize End processing item is a child.
Additionally, the Parallelize Task processing item is the parent, and everything up to the step just before the next
Parallelize Task processing item or the Parallelize End processing item is a child.
There is no settings dialog box for Parallelize processing items.
The Parallelize End processing item is not displayed in the list of items. (It is registered as a set with the
Parallelize processing item).
Precautions on Flow Editing
• Editing operations on parallel blocks and task blocks, such as register, move, delete, copy, and paste, and
unit save and load operations, are performed on the parallel block as a group.
• You cannot delete a Parallelize End processing item by itself. It is deleted as a set with the Parallelize
processing item.
• You cannot paste or move items within the same parallel block.
• If a processing item in a parallel block is set to reference data in a processing unit that is inside the block,
and if that block is copied, the reference will be replaced with a reference to the unit in the block at the
copy destination.
References to a unit that is outside the parallel block will be retained.
• You cannot move, paste, or load a task block outside of its parallel block.
Fully Expanded Parallel Blocks Collapsed
