Setting the Operating Environment of the System
294
Vision System FH/FZ5 Series
User’s Manual (Z340)

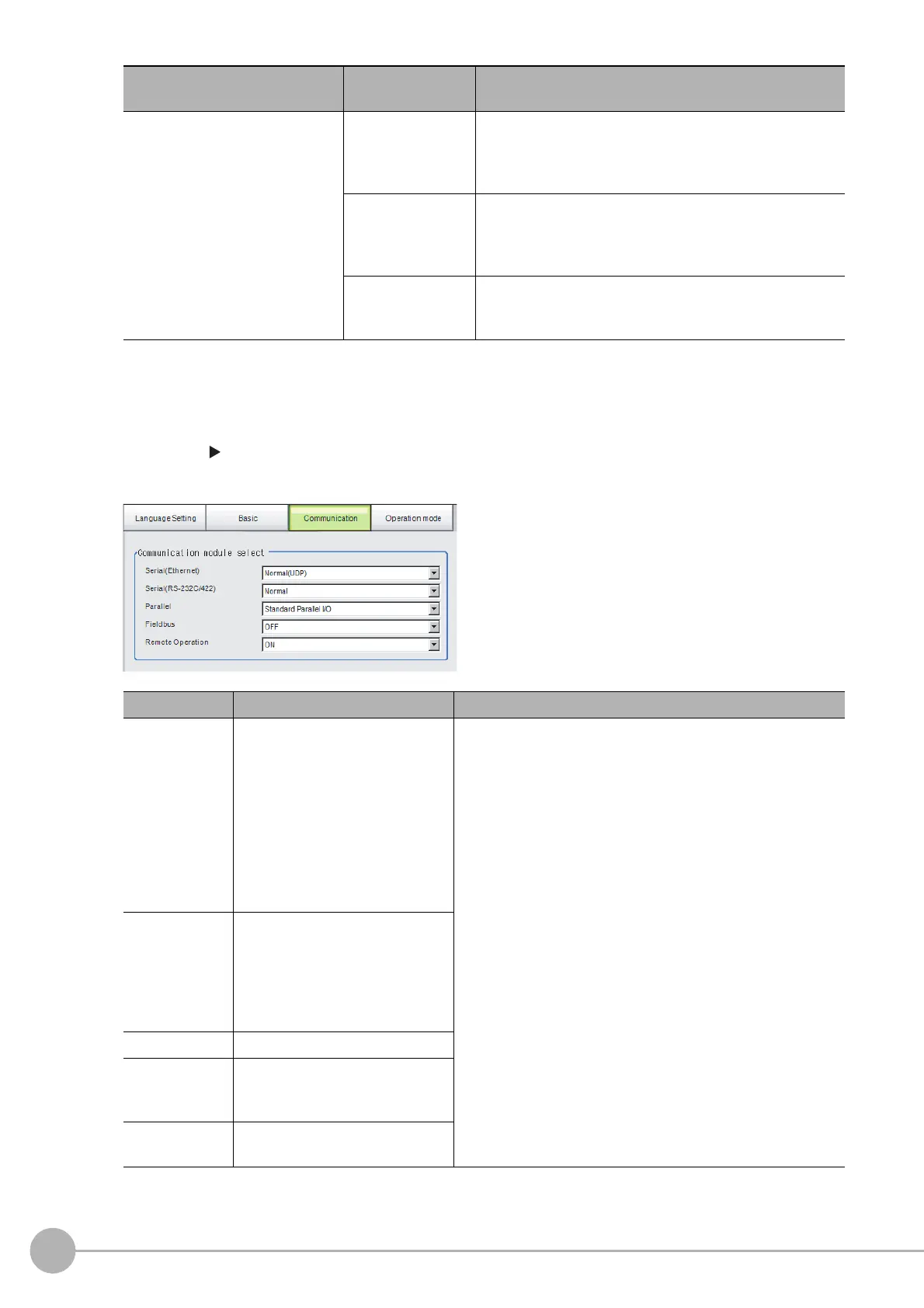

Communication
Select the type of Communications Module to determine the communications method to use for
communications between the Sensor Controller and external device.
Refer to the Vision System FH/FZ5 Series User's Manual for Communications Settings (Cat No. Z342)
for details on how to select the Communications Module.
Measurement initialization priority
Measurement initialization is performed immediately after
changing the scene or editing the flow. You can specify
whether measurement trigger reception or display refresh
processing has priority during measurement initialization.
[Measurement
trigger receipt
priority]
Measurement trigger reception is given priority even during
measurement initialization processing. Displays for display
refresh processing may be incomplete because of its
lowered priority status.
Processing of re-
drawing on screen
priority
Processing of refreshing the display is given priority.
Measurement triggers will not be received until display
refresh processing is completed.
Item Set value [Factory default] Description
Serial (Ethernet)
• [Normal (UDP)]
• Normal (TCP)
• Normal (TCP Client)
• Normal (UDP)
(Fxxx series method)
• PLC Link
(SYSMAC CS/CJ/CP/One)
• PLC Link
(MELSEC QnU/Q/QnAS)
• PLC Link (JEPMC MP)
Specify the Communications Module.
Serial/Ethernet
Normal/Normal (Fxxx series method): Communications are
performed with external devices through [non-procedure]
communications.
For differences between [Normal] and [Normal (Fxxx series
method)], refer to the following note.
PLC Link: Communications are performed through link areas
with the PLC.
Parallel
Standard Parallel I/O: Communications are performed with a
standard parallel interface.
Fieldbus: Communications are performed through EtherCAT
communications and the EtherNet/IP interface. EtherCAT is
supported only by the FH-series Controllers.
Remote operation: The Controller is operated from an external
device.
Serial (RS-
232C/RS-422)
• [Normal]
• Normal (Fxxx series method)
• PLC Link
(SYSMAC CS/CJ/CP/One)
• PLC Link
(MELSEC QnU/Q/QnAS)
Parallel [Standard Parallel I/O]
Fieldbus
•[OFF]
•EtherCAT
• EtherNet/IP
Remote
Operation
•[ON]
•OFF
Item
Set value
[Factory default]
Description
