Setting the Operating Environment of the System
295
7
Changing the System Environment
Vision System FH/FZ5 Series
User’s Manual (Z340)

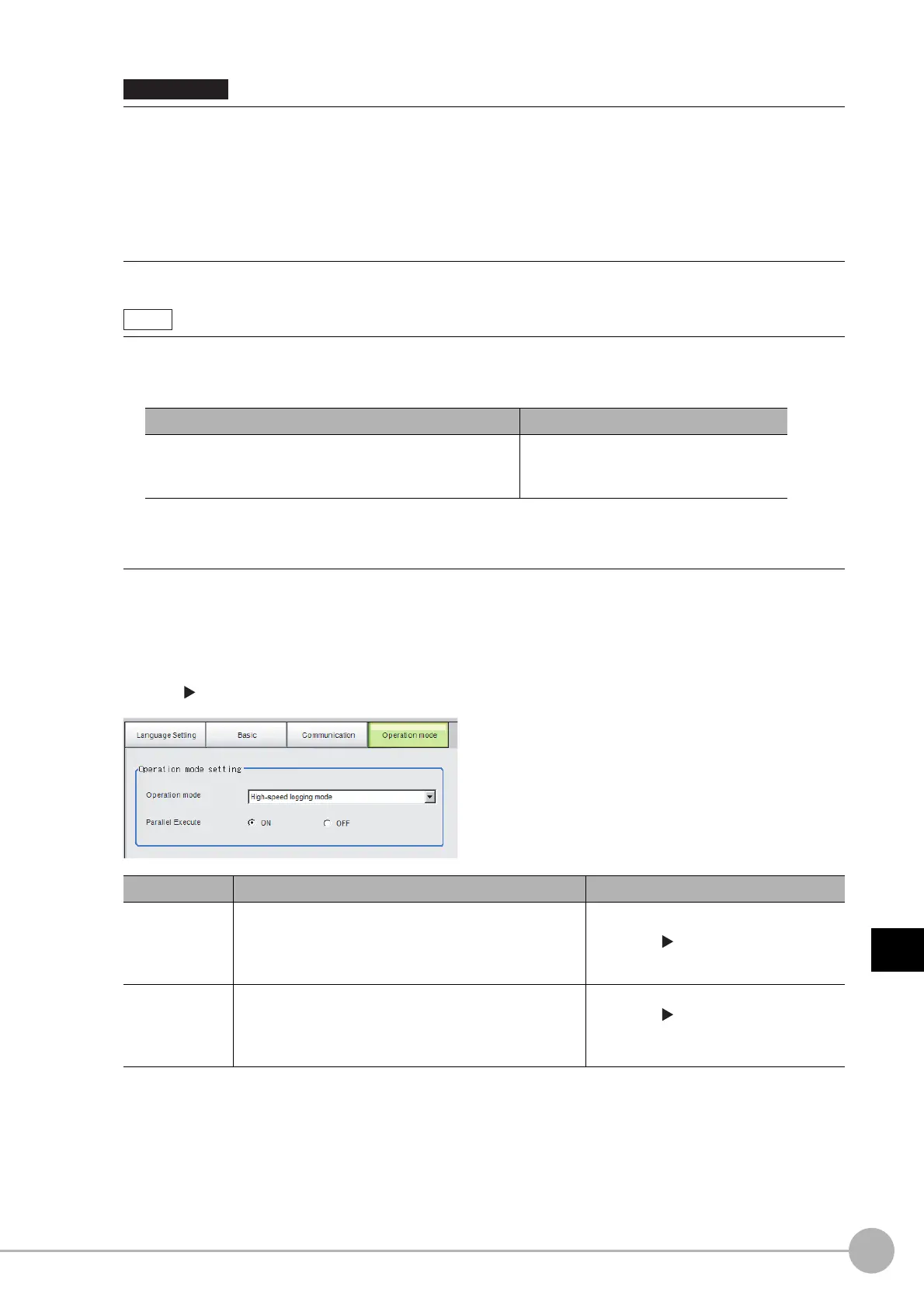

Operation Mode (FH and FZ5-11 Only)
Select the operation mode according to the application conditions, such as the operation mode that is best
suited to reduce the takt time and downtime.
Refer to Setting the Operation Mode (p.268) for details on the operation modes.
3 Click the [Apply] button.
• Do not set [EtherNet/IP] and [PLC Link] at the same time. They cannot be used at the same time.
Example:
Set [Serial (Ethernet)] to [PLC Link] and [Fieldbus] to [EtherNet/IP] at the same time.
Set [Serial (RS-232C/422)] to [PLC Link] and [Fieldbus] to [EtherNet/IP] at the same time.
Set both [Serial (Ethernet)] and [Serial (RS-232C/422)] to [PLC Link], and set [Fieldbus] to [EtherNet/IP] at the same
time.
• Do not set both [Serial (Ethernet)] and [Serial (RS-232C/422)] to [PLC Link]. They cannot be used at the same
time.
• Normal (Fxxx Series Method)
With the [Normal (Fxxx series method)] communications method, the OK response timing in relation to
MEASURE commands is different from that of the [Normal] communications method.
• OK Responses
With [Normal communications method], an OK response is returned when the Controller receives a command.
With [Normal (Fxxx series method)], an OK response is returned when command execution is completed.
Item Set value [Factory default] Description
Operation mode
• Single-line High-speed mode
• [High-speed logging mode]
• Multi-line random-trigger mode
• Non-stop adjustment mode
Set the operation mode.
Reference: Setting the Operation
Mode (p.268)
Parallel
execution
ON/[OFF]
Set whether to uses parallel processing.
Reference: Parallel Processing
Settings (Automatic Parallelization)
(p.282)
IMPORTANT
Note
Normal (Fxxx series method) communications method Normal communications method
MEASURE
Measurement result
OK
MEASURE
OK
Measurement result
To Next Page
