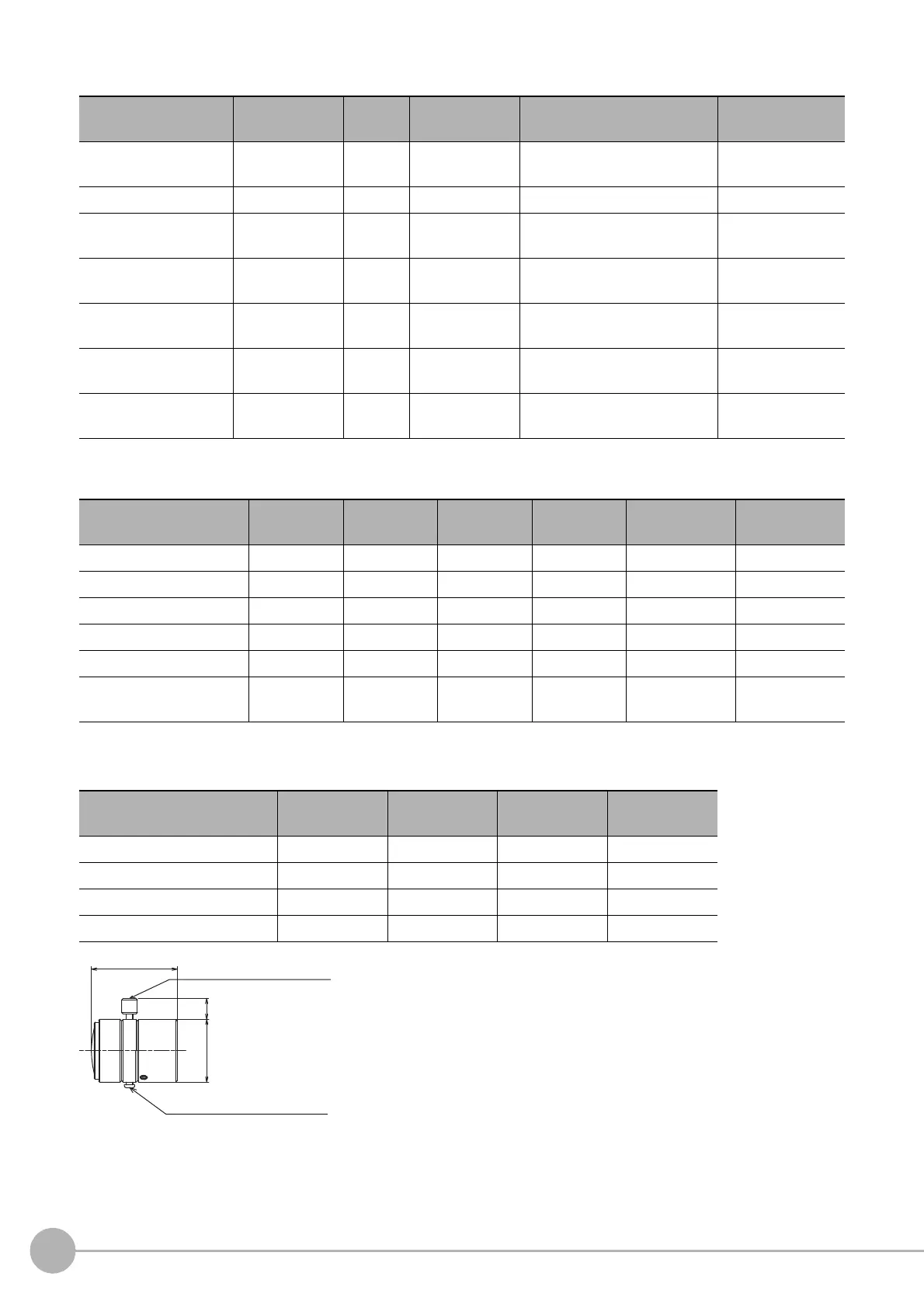

About Lenses
816
Vision System FH/FZ5 Series
User’s Manual (Z340)
3Z4S-LE-VS-H1 Series
3Z4S-LE VS-L/M42 Series M42 Mount Lens
Lens for Small Digital Cameras FZ-LES@ Series
Lens type Focal distance
Aperture
(F number)
Max. O.D. Full length Filter size
3Z4S-LE VS-0618H1 6.23 mm F1.8 64.5 mm dia. 57.2 mm
Filter is not supported
for this lens.
3Z4S-LE VS-0814H1 8.24 mm F1.4 57 mm dia. 59.0 mm M55 P0.75
3Z4S-LE VS-1214H1 12.05 mm F1.4 38 mm dia.
48.0
mm (WD:
∞
)
to
48.5 mm (WD: 300 mm)
M35.5 P0.5
3Z4S-LE VS-1614H1 16.06 mm F1.4 38 mm dia.
42.5
mm (WD:
∞
)
to
43.3 mm (WD: 300 mm)
M30.5 P0.5
3Z4S-LE VS-2514H1 25.42 mm F1.4 38 mm dia.
33.5
mm (WD:
∞
)
to
35.6 mm (WD: 300 mm)
M30.5 P0.5
3Z4S-LE VS-3514H1 35.10 mm F1.4 38 mm dia.
35.0
mm (WD:
∞
)
to
39.1 mm (WD: 300 mm)
M30.5 P0.5
3Z4S-LE VS-5018H1 49.93 mm F1.8 44 mm dia.
44.5
mm (WD:
∞
) to
49.5 mm
(WD: 500 mm)
M40.5 P0.5
Lens type
Focal
distance
Aperture
(F number)
Max. O.D. Full length L Filter size
Optical
magnification
3Z4S-LE VS-L1828/M42-10
18 mm F2.8 to F16 58.5 mm dia 94.0 mm M55.0 P0.75 0.025x to 0.12x
3Z4S-LE VS-L2526/M42-10
25 mm F2.6 to F16 58.5 mm dia 80.0 mm M55.0 P0.75 0.025x to 0.12x
3Z4S-LE VS-L3528/M42-10
35 mm F2.8 to F16 64.5 mm dia 108.0 mm M62.0 P0.75 0.05x to 0.3x
3Z4S-LE VS-L5028/M42-10
50 mm F2.8 to F16 66 mm dia 94.5 mm M62.0 P0.75 0.05x to 0.3x
3Z4S-LE VS-L8540/M42-10
85 mm F4.0 to F16 55.5 mm dia 129.5 mm M52.0 P0.75 0.1x to 0.35x
3Z4S-LE VS-L10028/
M42-10
100 mm F2.8 to F16 54 mm dia 134.5 mm M52.0 P0.75 0.05x to 0.3x
Lens type Focal distance
Aperture
(F number)
Max. O.D. Full length L
FZ-LES3 3 mm F2.0 12 mm dia. 16.4 mm
FZ-LES6 6 mm F2.0 12 mm dia. 19.7 mm
FZ-LES16 16 mm F3.4 12 mm dia. 23.1 mm
FZ-LES30 30 mm F3.4 12 mm dia. 25.5 mm
L
Aperture adjustment knob
Aperture locking screw M1.4
12 dia.
4
