Vision System FH/FZ5 Series
User’s Manual (Z340)

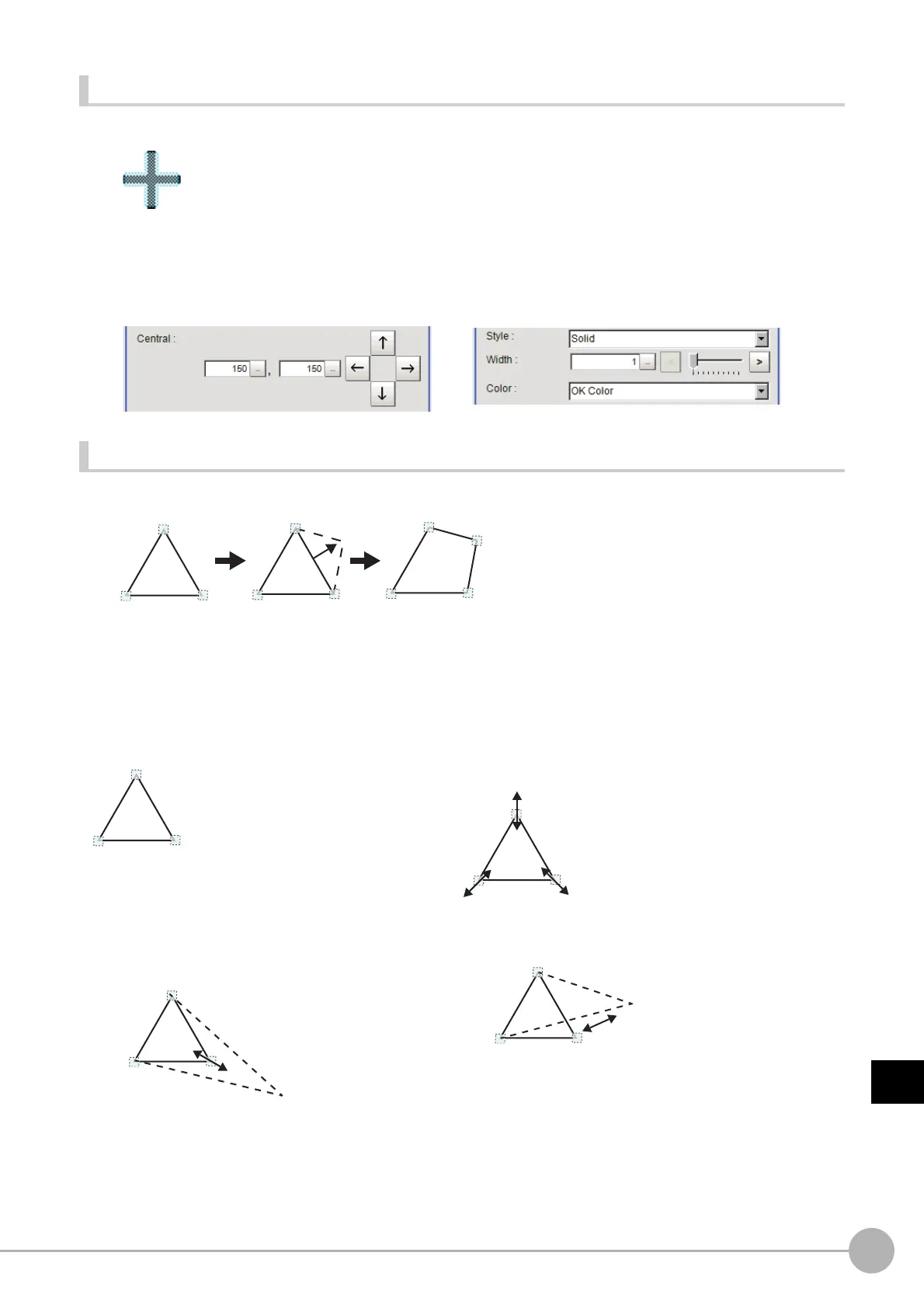

Crosshair Cursor
• Image selection status
Entire image is selected.
• Using numbers for setting
Setting is performed through input of numbers or through tapping on the arrows. The line type and line
color can also be changed at this window.
Polygons (Triangle to Decagon)
• Drawing methods (for drawing a quadrilateral)
1 When [Polygon] is specified, a triangle is drawn at first.
2 If you drag and drop one of the sides at the point you want to make a new vertex, a new
vertex will be created.
If the number of vertexes is not within 3 to 10, the image cannot be confirmed as a polygon.
• Image selection status • Dimension Adjustment
Drag the points.
•Example) When changing the angle of
one point
Drag points (arbitrarily).
• Example) When changing the region
Drag points (arbitrarily).
Point is displayed at vertex of
figure.
