Arranging Windows
84
Vision System FH/FZ5 Series
User’s Manual (Z340)
Measurement Pane
This pane is for measuring and re-measuring. The following elements are displayed. There are no editable
elements.
• [Camera image meas.] tab page: [Measure] button
• [Image file meas.] tab page: [Selection image] button, [Re-meas.] button, [Auto Re-meas.] check box,
and the [Judgement result monitor] check box
• [Output] check box
• [Continuous meas.] check box
Flow Display Pane
This pane shows the measurement flow.
The following elements are displayed.
• [1st. NG unit] button
• [Next NG unit] button
• Measurement flow list
• To Change the Size of the Flow Display Pane
Use the following procedure if the type of settings dialog box to display when you click a processing unit
icon is set to the Simplified Non-stop Adjustment Mode:
1 In Layout Modification Mode, click the icon in the upper right corner of the Flow
Display Pane.

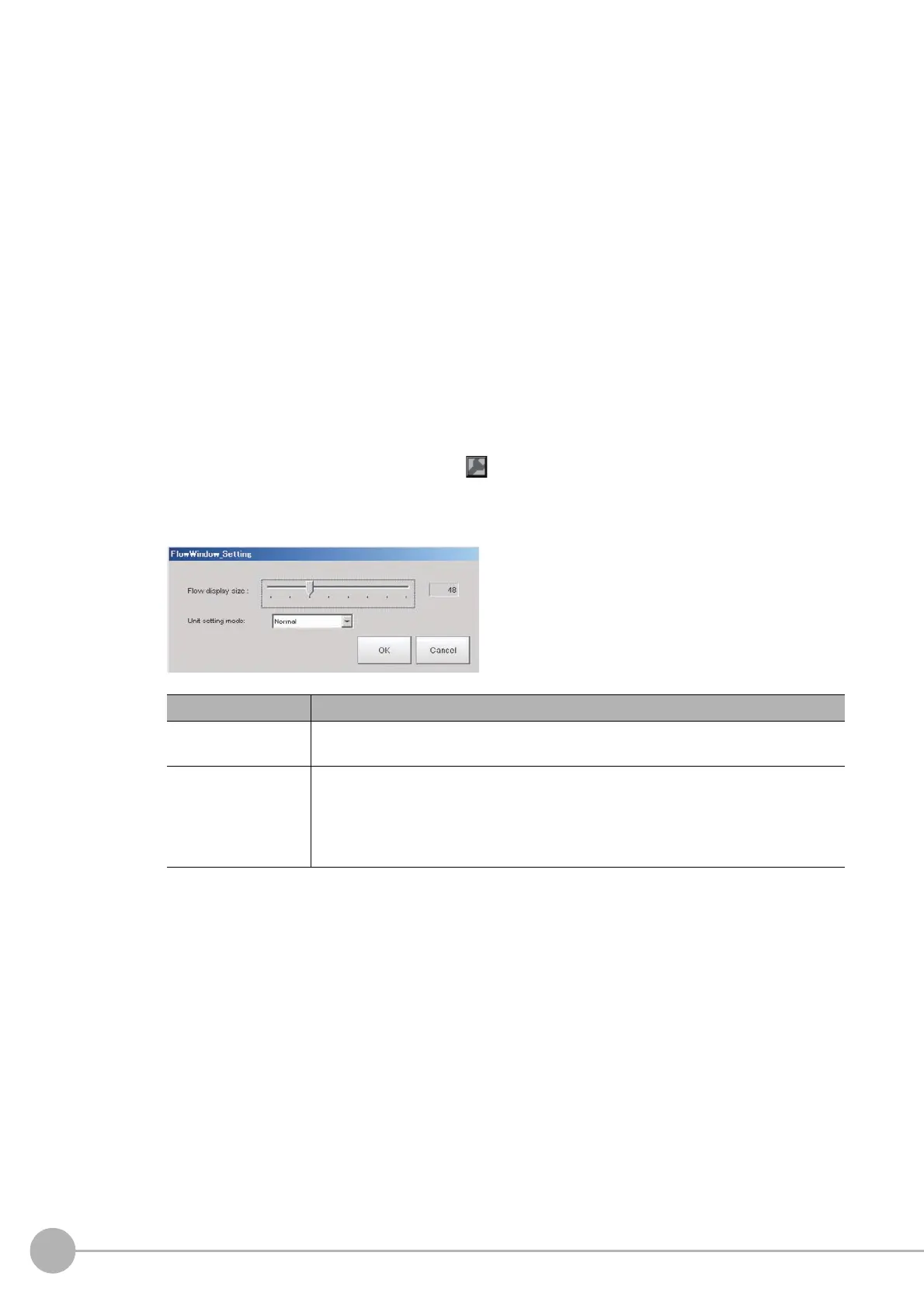

2 The following settings dialog box is displayed. Set the following settings.
Detail Result Pane
This pane gives detailed measurement results in text format for the selected processing unit in the
measurement flow.
The following elements are displayed.
• Processing unit number, Item name
• Judgement
There are no parameters that can be set.
Editable items Description [Factory default]
Flow display size
Sets the size of the Flow Display Pane.
16 to 128, [48]
Unit setting mode
Specifies the type of item settings dialog box to display when you click on a
processing unit icon.
• [Normal]: Displays a normal settings dialog box.
• Simplified non-stop: Displays the Simplified Non-stop Adjustment Mode.
• Nothing: No settings dialog box is displayed.
To Next Page
