Custom Dialogs
97
3
Performing Test Measurement/Starting Operation
Vision System FH/FZ5 Series
User’s Manual (Z340)
The types of dialog boxes that you can create are listed below.
3 Select the kind of dialog box to add, and then click the [OK] button.
The selected dialog box is added to the Dialog Box List Display Area.
Select the added dialog box from the dialog box list. The settings for the selected dialog box are displayed
in the Edit Dialog Box Area while an image of the dialog box is displayed in the Preview Area.
4 Edit the settings for the dialog box. Some settings are common for all dialog boxes, and some
are specific to individual dialog boxes.

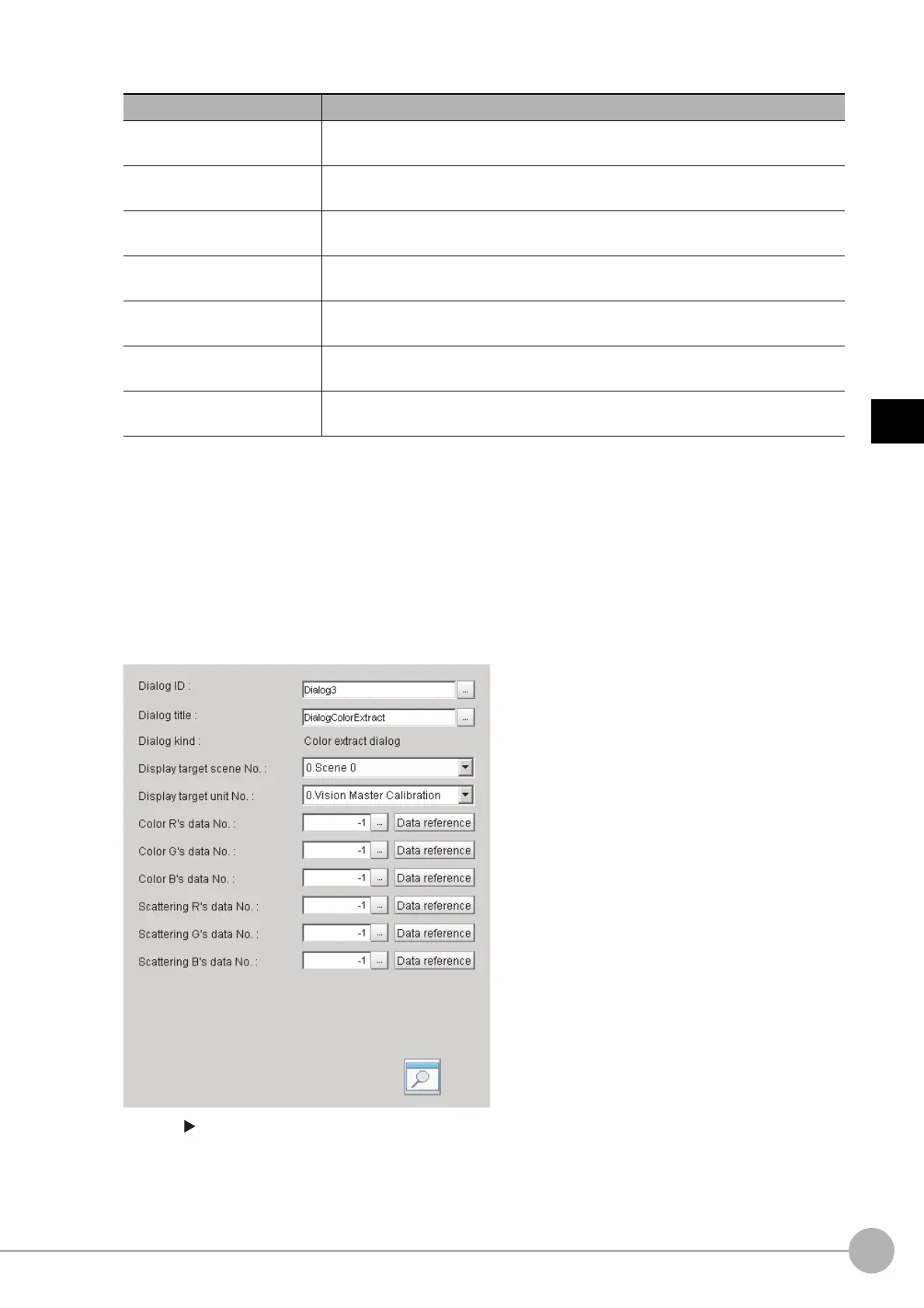

Example: Dialog Box Properties Display Area for Color Extract Processing Item
Refer to Settings in the Dialog Box Properties Display Area (p.98) for details on individual settings.
Dialog kind Description
Normal dialog
This is a custom dialog box that you create with numeric input boxes, buttons, and
other items.
Region setting dialog
This dialog box sets the measurement region for a processing item, such as the
region setting for Search and Defect.
Position setting dialog
This dialog box sets the reference of a processing item, such as the reference
position for Search and Edge Position.
Color extract dialog
This dialog box sets the color of a processing item, such as the color setting in Edge
Position.
Binary dialog
This dialog box sets the binary setting of a processing item, such as the binary filter
in Labeling.
Classification model dialog
You can register multiple models for this dialog box, such as for the model
registration of the Classification processing item.
Dictionary model dialog
You can register multiple models for this dialog box, such as for the model
registration of the Model Dictionary processing item.
To Next Page
