Panasonic FP0R - Page 316

15-54
Num
-ber
Name
Boo-
lean
Ope-
rand
Description
Steps
FP0/FP-e
FP0R
FP
Σ
FP-X
FP2
FP2SH/FP10SH
Basic function instruction
F137
Auxiliary
timer (16-bit)
STMR
S, D
Turns on the specified output and
R900D after 0.01 s
×
set value.
5
Special instructions
F138
P138
Hours, min-
utes and sec-
onds to
seconds data
HMSS
PHMSS
S, D Converts the hour, minute and second
data of (S+1, S) to seconds data, and
the converted data is stored in (D+1, D).
5
*1
F139
P139
Seconds to
hours,
minutes and
seconds data
SHMS
PSHMS
S, D
Converts the seconds data of (S+1, S)
to hour, minute and second data,
and the converted data is stored in
(D+1, D).
5
*1
F140
P140
Carry flag
(R9009) set
STC
PSTC
-
Turns on the carry flag (R9009).
1
F141
P141
Carry flag
(R9009) reset
CLC
PCLC
-
Turns off the carry flag (R9009).
1
F142
P142
Watching
dog timer
update
WDT
PWDT
S
The time (allowable scan time for the
system) of watching dog timer is
changed to “S”
×
0.1 (ms) for that scan.
3
F143
P143
Partial I/O
update
IORF
PIORF
D1, D2
Updates the I/O from the number
specified by “D1” to the number
specified by “D2”.
5
F144
Serial data
communica-
tion control
TRNS
S, n
The COM port received flag (R9038) is
set to off to enable reception.
Beginning at “S”, “n” bytes of the data
registers are sent from the COM port.
5
*2
F145
P145
Data send
SEND
PSEND
S1, S2,
D, N
Sends the data to another station in the
network (MEWNET). (via link unit)
9
F146
P146
Data receive
RECV
PRECV
S1, S2,
N, D
Receives the data to another station
in the network (MEWNET). (via link unit)
9
F145
P145
Data send
SEND
S1, S2,
D, N
Sends the data to the slave station as
the MOD bus master. (via COM port)
9
*3
F146
P146
Data receive RECV
S1, S2,
N, D
Receives the data from the slave station
as the MOD bus master. (via COM port)
9
*3
F145
P145
Data send
SEND
S1, S2,
D, N
Sends the data to the slave station of
the MOD bus master, type II.
9
*4 *4
F146
P146
Data receive
RECV
S1, S2,
N, D
Receives the data from the slave station
of the MOD bus master, type II.
9
*4 *4
F145
P145
Data send
SEND
S1, S2,
D, N
Sends the data to the slave station as
the MEWTOCOL master. (via COM
port)
9
*3 *3
F146
P146
Data receive
RECV
S1, S2,
N, D
Receives the data from the slave station
as the MEWTOCOL master. (via COM
port)
9
*3 *3
F147
Printout
PR
S, D
Converts the ASCII code data in the
area starting with “S” for printing, and
outputs it to the word external output
relay WY specified by “D”.
5
F148
P148
Self-
diagnostic
error set
ERR
PERR
n
(n: k100
to K299)
Stores the self-diagnostic error number
“n” in (DT9000), turns R9000 on, and
turns on the ERROR LED.
3
F149
P149
Message
display
MSG
PMSG
S
Displays the character constant of “S” in
the connected programming tool.
13

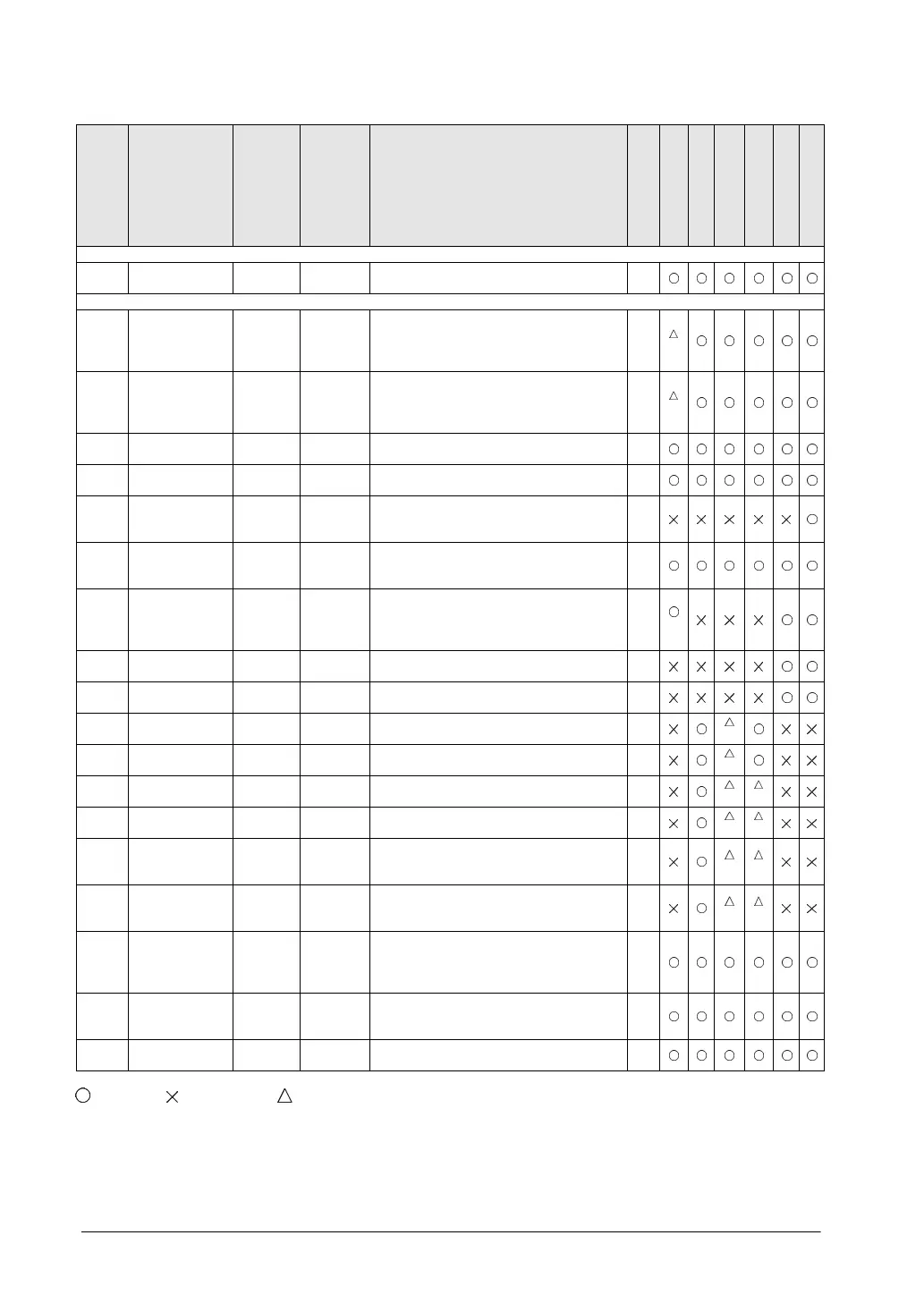

: Available, : Not available, : Not available partially
*1) The instruction is available for FP0 T32 (V2.3 or later) and FP-e.
*2) This instruction is available for FP0 V1.20 or later and FP-e.
*3) This instruction is available for FP-X V1.20 or later and FPΣ 32k type.
*4) This instruction is available for FP-X V2.50 or later and FPΣ V3.20 or later.
