2 Basic repair procedures Chapter E: Basic repair procedures
126 Planmeca PlanMill 40 Technical manual
Removal
1. If there are any burrs in the collets remove them, see section 2.7 "Cleaning collet and
spindle caps" on page 35.
2. Remove lid/adapter, see section 2.3 "Grind chamber lid/adapter assembly" on page
117.
3. Remove the (8) M4 flathead screws securing the bellows flange to the Y-axis
assembly.

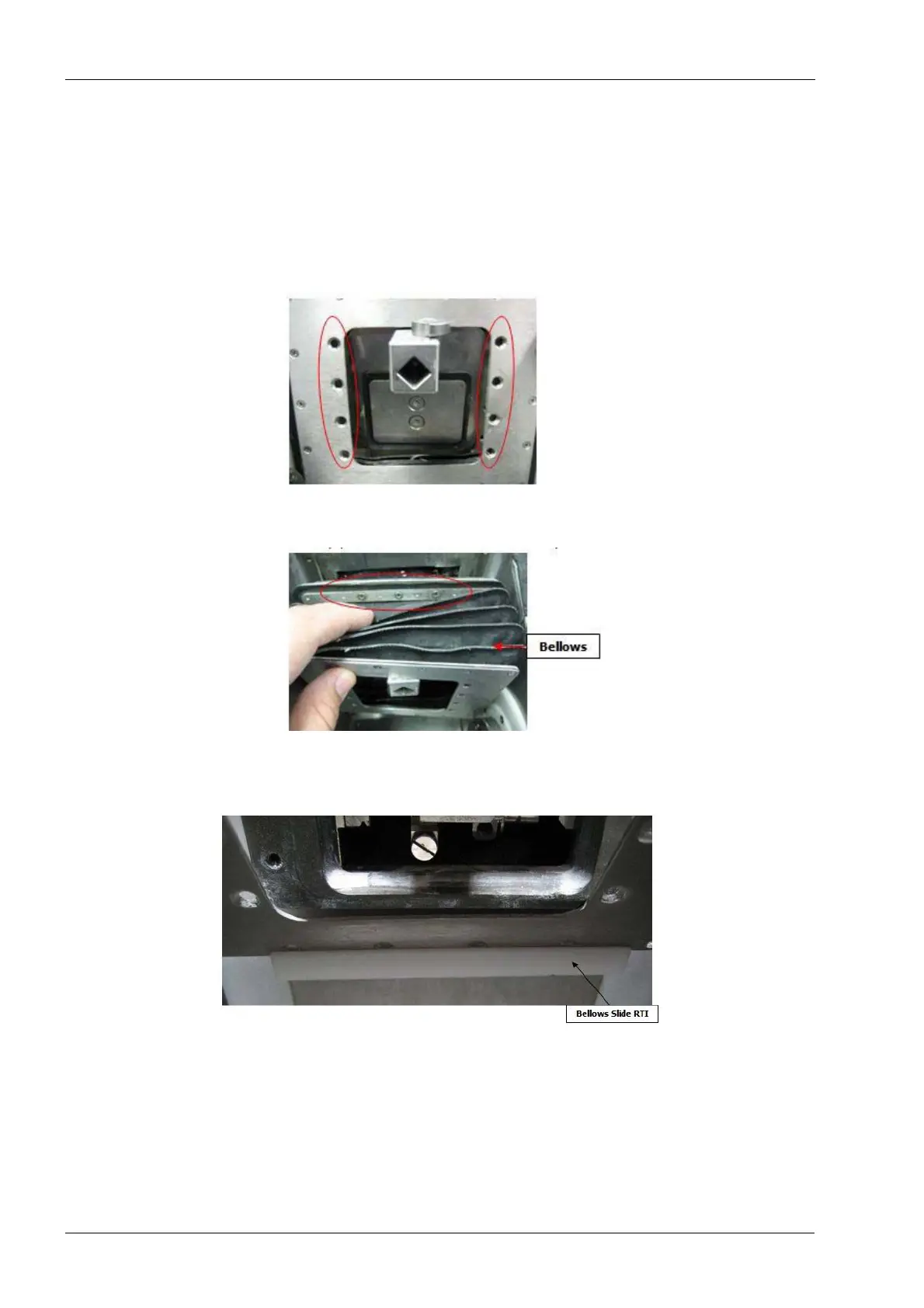

Figure 118: Bellows flange
4. Remove the (3) M3 flathead screws on the top of the bellows.
Figure 119: Top of bellows
5. Remove the bellows by pulling forward and lifting up. The bellows is seated in the
Bellows Slide and must be pulled up to be removed.
Figure 120: Removing the bellows
6. Remove the (4) screws from each slide rail.
7. Remove (3) screws on bellows slide insert.
