2 Basic repair procedures Chapter E: Basic repair procedures
150 Planmeca PlanMill 40 Technical manual
6. Complete the tool profiler calibration and origin calibration, refer to Chapter C:
"Calibration" on page 49.
2.11 Circulation system

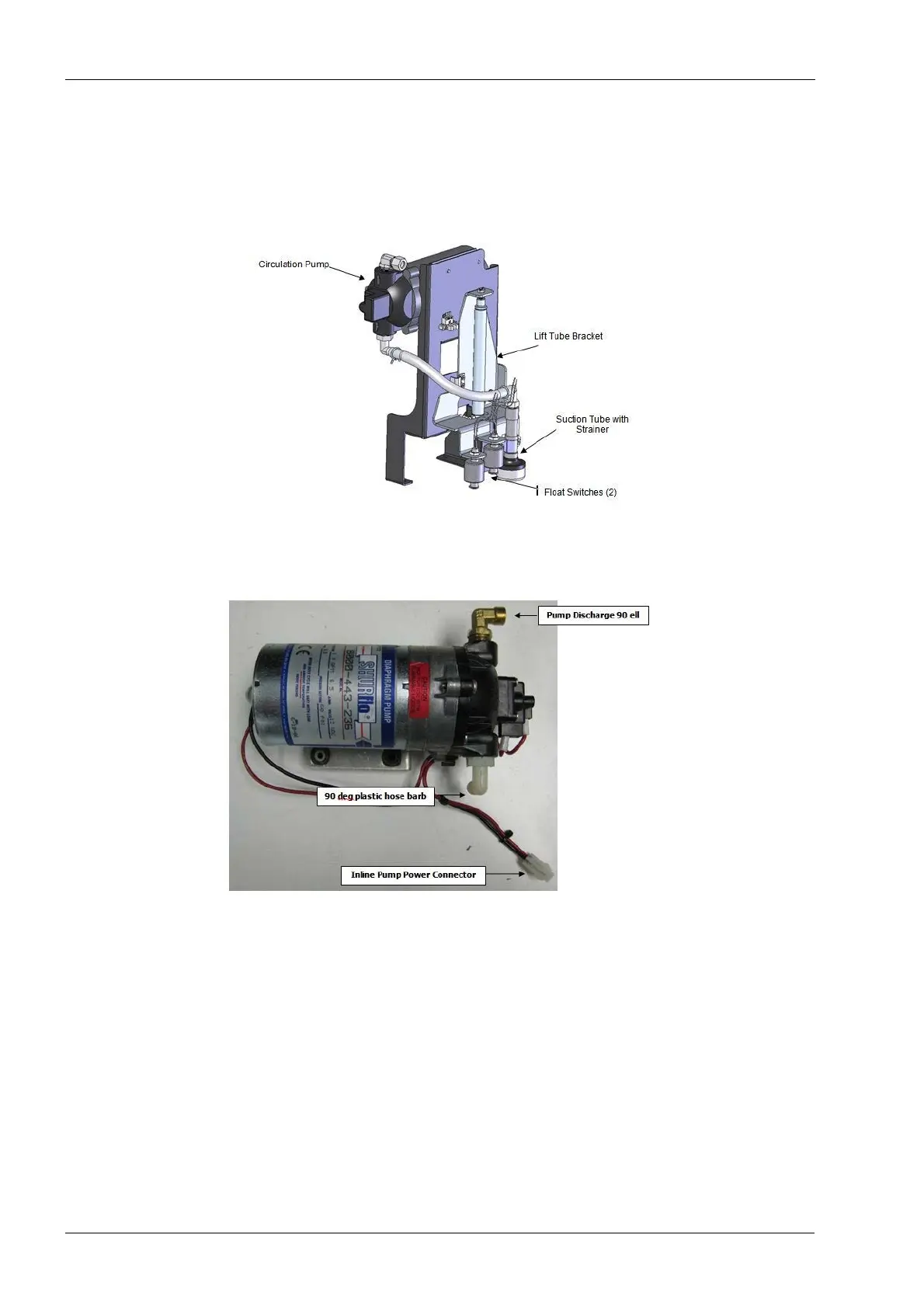

Figure 159: Circulation pump and suction assembly
2.11.1 Circulation pump
Figure 160: Circulation pump
Tools required
• 3 mm Allen key
• two small crescent (adjustable) keys
• diagonal wire cutters
• small cable ties
• adjustable clip ring pliers
Removal
1. Remove the top cover and right side panel, see section 2.1 "Mill covers" on page 94.
2. Disconnect the inline pump power connector.
