Chapter E: Basic repair procedures 2 Basic repair procedures
Technical manual Planmeca PlanMill 40 117
2.3 Grind chamber lid/adapter assembly

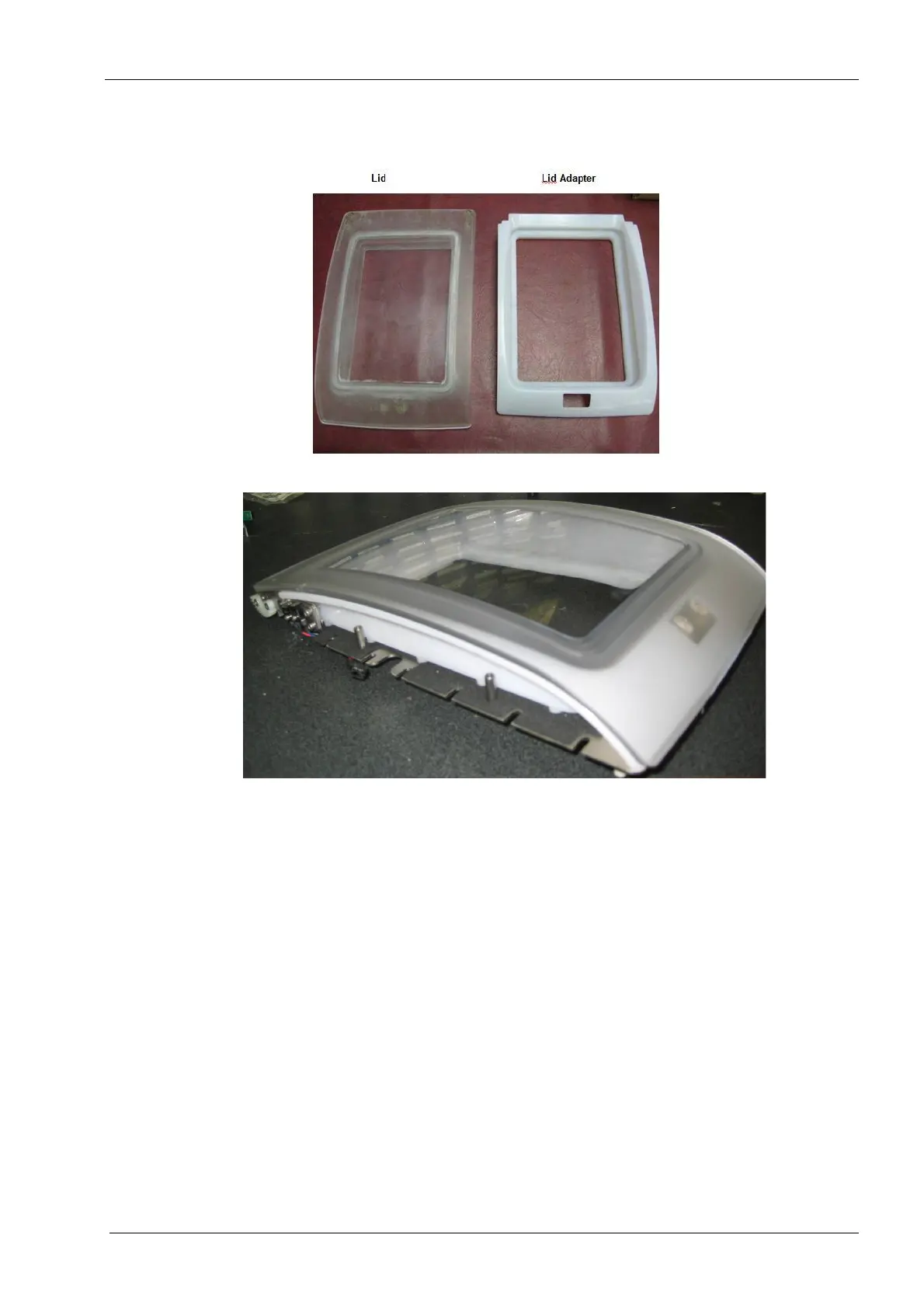

Figure 107: Lid and lid adapter
Figure 108: Lid adapter assembly
The grind chamber lid/adapter assembly can be serviced as a whole assembly or individual
components can be changed as required.
2.3.1 Lid/adapter
The following procedure is for removal and reinstallation of the entire lid/adapter
assembly.
Tools required
• #0 Philips screwdriver
• metric Allen key set
• diagonal wire cutters
•wire ties
Removal
1. Remove mill top cover, see section 2.1 "Mill covers" on page 94.
