Chapter E: Basic repair procedures 2 Basic repair procedures
Technical manual Planmeca PlanMill 40 199
Notice the black O-ring around the fluid jet towards the bottom of the face of the spindle
housing and ensure the black O-ring remains in its groove.
5. Gently wipe the face of the spindle housing clean.
6. If the red O-rings on the old quick release adapter are in good shape, carefully
remove them and install them on the replacement quick release adapter.
7. Secure the replacement quick release adapter to the spindle housing using the 5
screws previously removed from the assembly. Use “two fingers only tightening
method” to avoid stripping or breaking the screws.
8. Install new red O-rings on the quick release adapter if the old ones were worn.
9. Use the quick release nozzle cap removal and installation tool to install the quick
release nozzle cap.
2.14 Software configuration
2.14.1 Pulling log files
Pulling system log files may be necessary for troubleshooting and diagnosis. Log files will
consist of design center logs, job server logs and PlanMill 40 logs. These log files will be
found in the root directory of each piece of Planscan equipment; c:\D4D\logs.
All files should be copied and sent to Planmeca After Sales if requested. New log files are
created each day. The files from the previous day are appended with the date.
Do not attempt to purge or delete old log file, the system purges log files older than 30
days automatically.
Log filenames:
• d4dutilcpp_log.txt
• millingcenter_log.txt
2.14.2 Installing software/firmware
All software/firmware updates are done remotely via Windows Remote Connect.
The installers for the current installed version are usually kept in c:\D4D\Support\
folder.
The firmware installers are typically run from the Software Installer.
2.14.3 PlanMill 40 touch screen calibration
1. Close the PlanMill 40 application.
2. Select Start -> Control Panel.

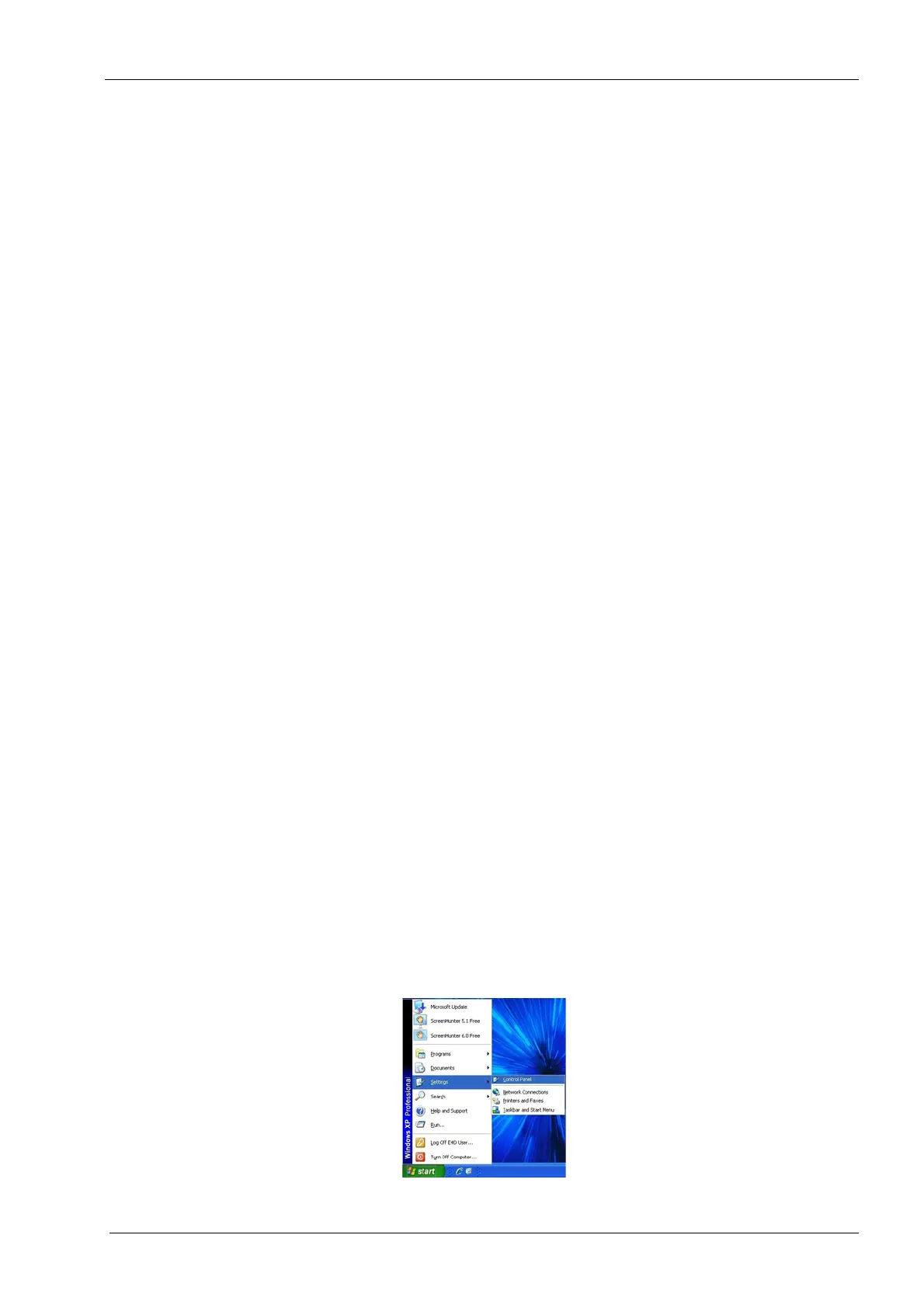

Figure 222: Selecting Control Panel
