Chapter E: Basic repair procedures 2 Basic repair procedures
Technical manual Planmeca PlanMill 40 145
Install
1. Position the new rubber seal between the backup plates. Make sure it is properly
centered.
2. Position the plates and seal onto the front of the tool changer arm and secure with the
two flat head screws. Tighten securely.
2.8 Tool bumber

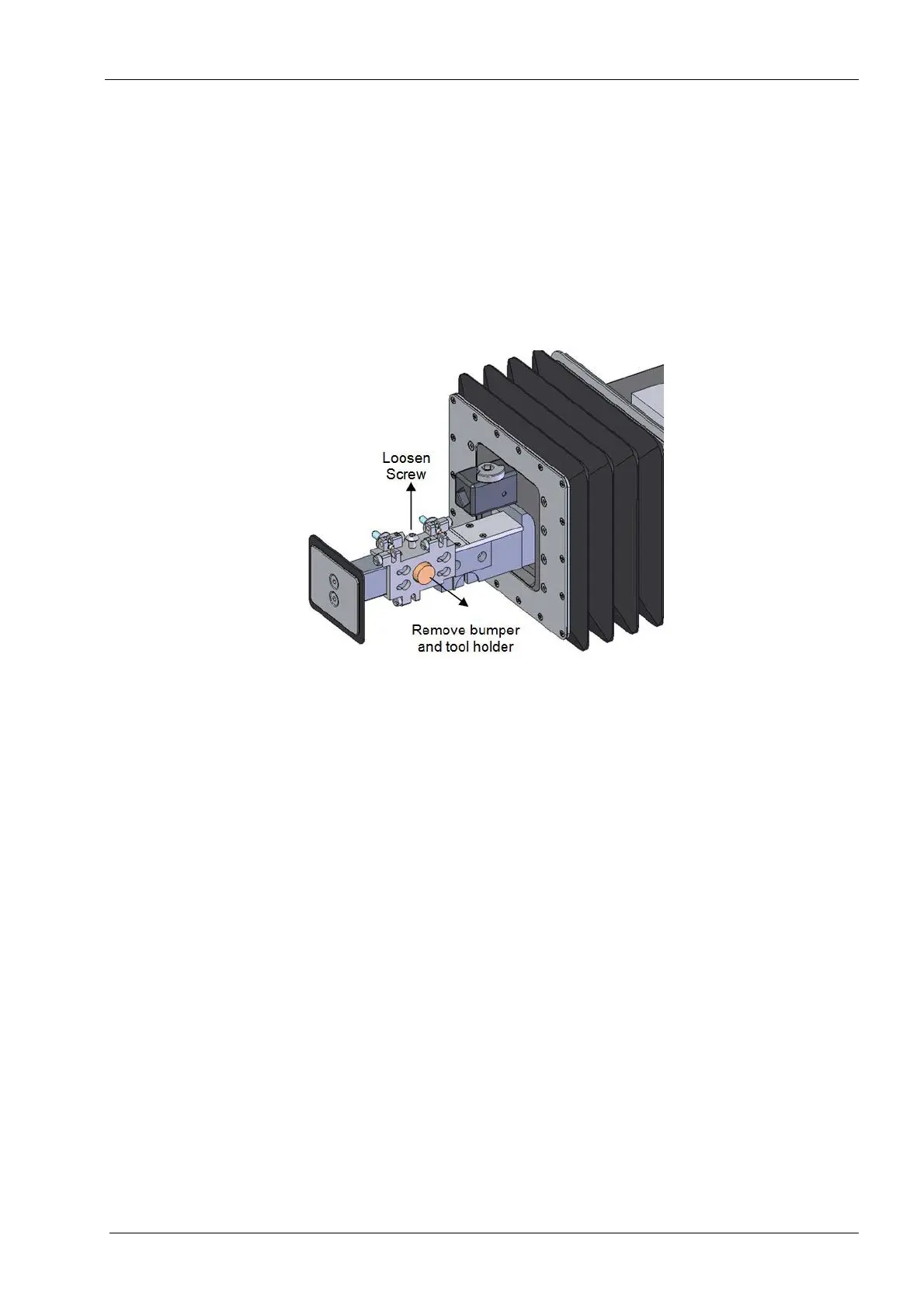

Figure 153: Tool bumper repalcement
Tools required
• 2.5 mm Allen key
Removal
1. Use Advanced (enter code), Verify Tools to verify that there aren't any tools in the
collets or the tool holder then close the lid. Remove tools with Replace Tools if
needed.
2. Select Technician Console.
3. Select High Level button.
4. Select the Mechanical Control box.
5. Select Open Tool Changer button.
6. Select the Axis Positions box.
7. Raise the Z-axis to the top of its travel using the up arrows.
8. Return to the Mechanical Control window and select the Open Lid button.
9. Loosen the button head screw located on the top center of the tool holder (6-pack).
Note, it is not necessary to fully remove the screw to replace the tool bumper.
10. Push the orange tool bumper to either side and out of the tool changer arm.
